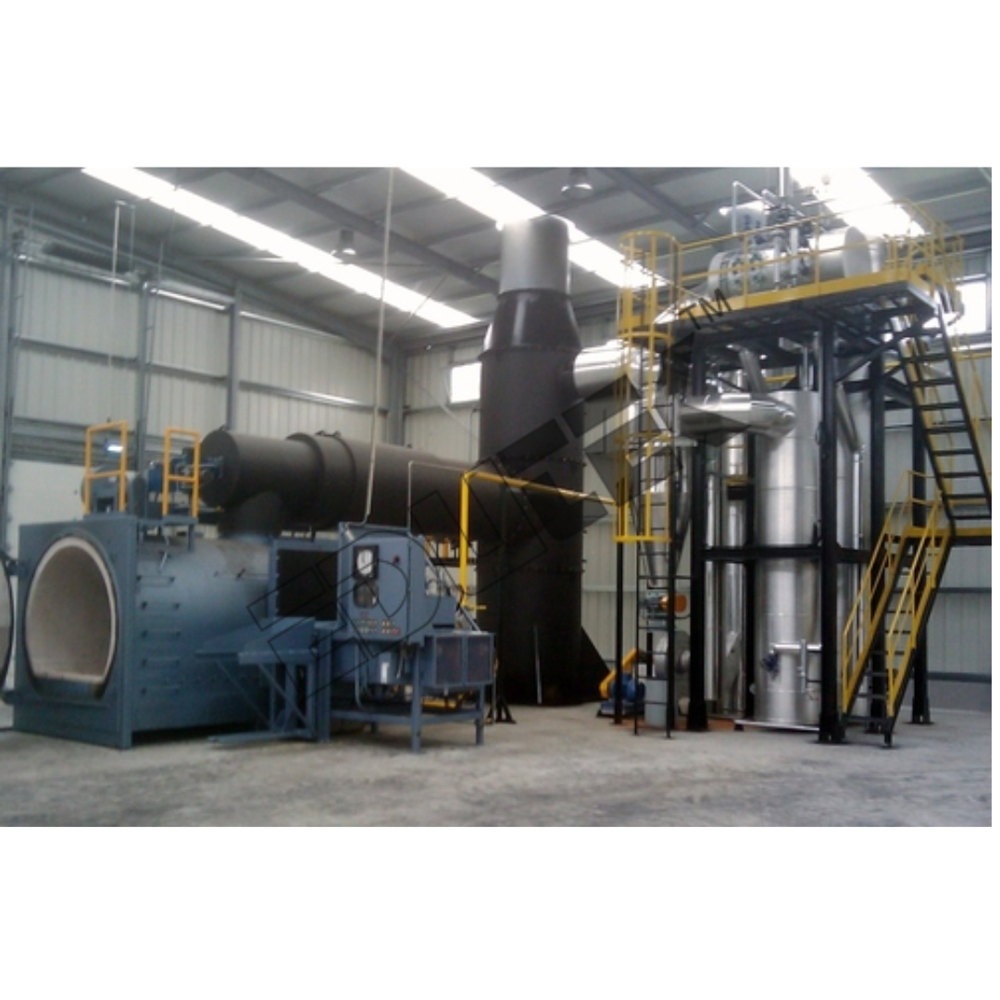

Industrial Waste Incinerator

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Industrial Waste Incinerator Specification

Feature
High combustion efficiency, Low emission, Energy saving design

Temperature Range
Max 1200 C Celsius (oC)

Accuracy
Temperature accuracy 1 C %

Voltage
380V / 440V Volt (v)

Frequency
50 Hz Hertz (HZ)

Core Components
Burner, Control Panel, Combustion Chamber, Chimney

Measurement Range
0-1200 C

Automation Grade
Semi-Automatic/Automatic

Power Source
Electric/Diesel

Model No

Capacity
Multiple models (small to large scale) Pcs/hr

Equipment Materials
Mild Steel with Refractory Lining

Type
Industrial Waste Incinerator

Usage
Disposal of industrial waste, hazardous and non-hazardous waste

Display Type
Digital

Dimension (L*W*H)
Customized (typically 2500 mm x 1600 mm x 2500 mm) Millimeter (mm)

Weight
2000-4000 kg Kilograms (kg)

Industrial Waste Incinerator Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID), Telegraphic Transfer (T/T)

Main Export Market(s)
Australia, Asia, Central America, South America, Africa

Certifications
AN ISO 9001-2008

About Industrial Waste Incinerator

Induustrial Waste Incinerator

FUEL OPTIONS
Diesel
LPG
Electrical

TEMPERATURES

Main chamber: 750C can reach in excess of 1000C*
Secondary chamber: 850C 1100C*

BURNERS

Fully automatic, high-efficiency burners with electronic ignition, flame recognition and combustion control devices fitted.

CONSTRUCTION

Steel welded fabrication consisting of sheet steel and structural section supports.

ASH REMOVAL

Easy and safe manual ash removal from the primary chamber (ash doors available on request).

SCRUBBER

Air Pollution Control Device.

CAPACITY

100 to 2000 Kg.

Key Features:

Low running and maintenance costs
Automatic and simple to operate control panel
Solid hearth to allow maximum burnout
Stainless steel flue as standard
Afterburner fitted as standard
Easy on-site installation

PLC based control panel.

Packaging Industries
Food processing Industries
Cement Industries
Pharmaceutical Industries
Paint Shops

AVAILABLE LOADING CAPACITY: 100/200/250/500/1000/1500/2000 Kg/Hr.

/N-Gas

** Note:- Design and specification are subject to changed as an continuous improvement process with or without prior notice.

Industries We Serve:

Efficient Waste Disposal Process

The incinerator utilizes a high-efficiency burner and advanced combustion chamber to achieve maximum waste destruction, operating at up to 1200C. The cycle time averages 2-3 hours per batch and varies with waste type. Adjustable air supply ensures complete combustion, minimizing ash and emissions. The flue gas treatment system, including wet/dry scrubbers and cyclone separators, guarantees compliance with strict environmental norms.

Advanced Control and Safety Systems

Users can select manual, semi-automatic, or automatic operation modes, tailored to their requirements. PLC/SCADA controls and digital displays provide precise monitoring and temperature accuracy of 1C. Safety is ensured with over-temperature protection, emergency shut-off, and hydraulically operated or manual doors. Robust insulation and industrial-grade construction deliver durability and operational reliability.

FAQs of Industrial Waste Incinerator:

Q: How does the incinerator ensure low emissions and high combustion efficiency?

A: The incinerator is equipped with a monoblock burner, adjustable forced draft air supply, and operates at temperatures up to 1200C, ensuring complete waste combustion. It includes optional flue gas treatment systems such as wet/dry scrubbers and cyclone separators, ensuring emissions meet CPCB and international standards.

Q: What types of waste can be processed in this industrial incinerator?

A: The designed for both hazardous and non-hazardous industrial waste, accommodating a wide range of materials safely and efficiently. Each model is customizable for different waste capacities and types.

Q: When is the incinerator typically used, and how long does a cycle take?

A: This incinerator is utilized whenever safe, compliant disposal of industrial waste is required. The average cycle time is 2-3 hours, depending on the waste type and load size, with certain materials requiring shorter or longer processing times.

Q: Where can this incinerator be installed, and are there customization options?

A: The unit can be installed at industrial waste management facilities, manufacturing plants, and similar sites. It is available in multiple sizes and can be customized in dimensions, color, and core components to fit specific site and operational requirements.

Q: What is the process for operating the incinerator?

A: Operation involves loading waste into the combustion chamber, initiating the process with the automatic electric ignition, and selecting manual, semi-automatic, or automatic control modes. The cycle is monitored via digital displays, and safety features are always active. Ash residue is easily removed after each cycle.

Q: How does this incinerator benefit industrial waste management?

A: By efficiently reducing industrial waste volume with a residue of less than 3%, the minimizes landfill needs, ensures environmentally safe disposal, and helps facilities comply with emission regulations, all while offering energy savings and robust operational safety.
