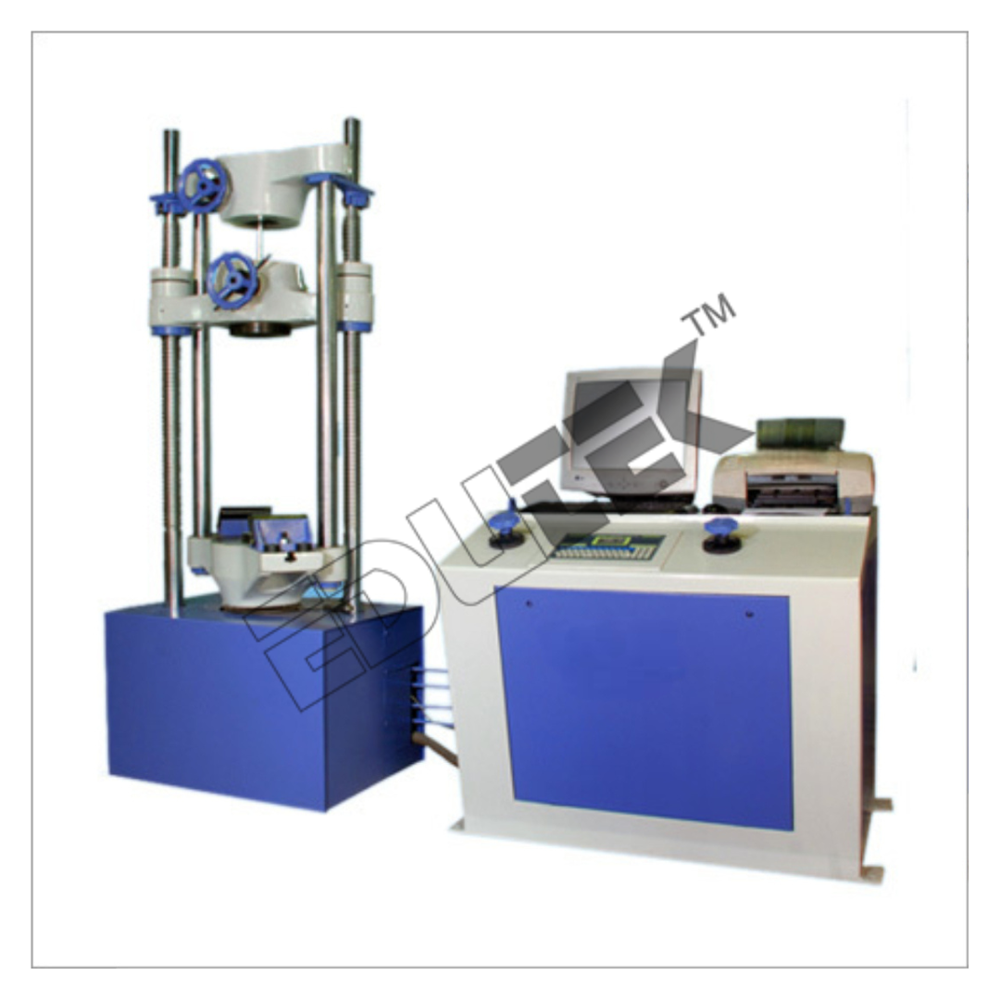

Industrial Standard Universal Testing Machine - Digital

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Industrial Standard Universal Testing Machine - Digital Specification

Power Source
Electric

Sensor
High precision load cell

Screw Size
Threaded Columns, 40 mm dia

Power Consumption
2.5 kW

Frequency
50 Hz

Stroke Length
Approx 600 mm

Dimension (L*W*H)
850 x 600 x 2000 mm

Speed Range
0.5 to 500 mm/min

Features
Digital display, Automatic overload protection, Emergency stop, Precise control

Machine Speed
Adjustable, up to 500 mm/min

Capacity
100 kN

Application
Tension, Compression, Bending, Shear, Flexural tests

Control System
Microprocessor based digital control panel

Load Capacity
100 kN (10 Tons)

Color
Blue/Grey

Product Type
Universal Testing Machine - Digital

Voltage
220V/380V AC, 50Hz

Power
2.2 kW

Resolution
0.01 kN

Operating Temperature
+5C to +45C

Phase
Single/Three Phase

Accuracy
1% of indicated load value

Weight
Approx 700 kg

Automatic Grade
Semi-Automatic

Material
Mild Steel/Alloy Steel

Industrial Standard Universal Testing Machine - Digital Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Industrial Standard Universal Testing Machine - Digital

Standard Universal Testing Machine - Digital

FEATURES:

Loading Accuracy as high as + 1% Straining at variable speeds to suit a wide range of materials. Manual adjustment of cross-head. (Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen.(optional) Simplicity in load reading because of digital readouts. Wide range of standard and special accessories.
Easy change from plain to threaded and screwed specimens.
Large effective clearance between columns enables testing of standards specimens as well as structures.
Simple controls for easy of operation.
Robust staining frame of an extremely rigid construction.
Safe operation ensured by means of safety devices.
No pendulum is used.
Optional serial port to transfer data to computer for analysis /storage etc.
Control and Printer are supplied as option to enable obtain test data & load-vs-elongation curve for studying the behavior of the materials.(optional)
Capacities available : from 5T(50KN) to 200T(2000KN)

Precision Engineering for Reliable Testing

Engineered for high performance, this Universal Testing Machine delivers reliable results across a wide range of applications including tension, compression, and flexural testing. Its two-column robust construction ensures durability under high loads, maintaining stability and accuracy throughout use. The high precision load cell and advanced digital control panel guarantee test precision to within 1% accuracy, making it ideal for both research laboratories and industrial quality control.

Versatile Features for Enhanced Usability

Equipped with a digital LCD display and a variety of included grips, the machine can test flat, round, and irregular specimens. Operators benefit from automatic overload protection, emergency stop functionality, and easy data transfer via USB/RS232. Its 600 mm crosshead travel and adjustable speed up to 500 mm/min offer flexibility for different testing requirements, while software compatibility ensures comprehensive data analysis and reporting.

FAQs of Industrial Standard Universal Testing Machine - Digital:

Q: How do I operate the Universal Testing Machine for different types of tests?

A: Operation is straightforward via the push-button panel and digital readout. Select the appropriate grip (wedge, flat, round, or V-grip) based on your specimen, adjust the speed and crosshead travel as needed, and follow the on-screen instructions. The machine supports tension, compression, bending, shear, and flexural tests.

Q: What safety features are integrated into this testing machine?

A: The device includes multiple safety features such as a safety interlock with limit switch, emergency stop button, and automatic overload protection. These mechanisms protect both the operator and the equipment during testing.

Q: When and how is calibration provided for the machine?

A: Every unit is supplied with an official calibration certificate to ensure measurement accuracy from the outset. Recalibration should be performed periodically based on your facilitys quality requirements or as recommended in the user manual.

Q: Where can testing data be exported from the machine?

A: Data can be exported via the built-in USB or RS232 ports. Additionally, you can utilize the optional PC software for more detailed analysis and to generate standardized test reports.

Q: What process should be followed to perform a test from setup to completion?

A: Begin by installing the correct grip for your material. Secure your specimen, configure test parameters on the digital control panel, and start the test using the push-button interface. Data is displayed in real-time on the LCD, and you can export results after completion.

Q: How does this machine benefit industrial and research applications?

A: It delivers consistently accurate results essential for quality assurance, material development, and compliance certification. Its robust construction, precise control system, and advanced safety features make it suitable for demanding industrial and laboratory environments.
