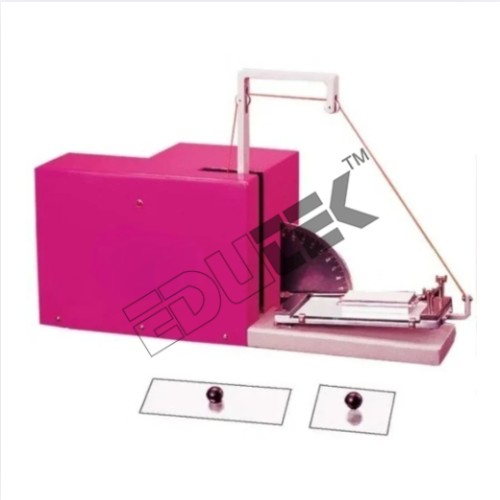

Inclined Plane Tester

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Inclined Plane Tester Specification

Specimen Size
Up to 150 mm x 150 mm

Display Type
Digital LCD

Power Supply
220V AC, 50/60Hz

Max Height
1200 mm

Response Time
<1 sec

Port Size
Standard 1/4 inch

Number of Specimens
Up to 3

Temperature
10C ~ 40C

Measuring Range
045 degrees

Automation Grade
Semi Automatic

Operating Voltage
220-240V

Frequency
50/60 Hz

Mounting Type
Floor standing

Interface Type
Push Button/Knob

Humidity
Up to 85% RH

Test Range
Angle 0-45 Adjustable

Features
Anti-slip base, Emergency stop, Adjustable angle, Movable table, Data hold

Application
Testing slip resistance and sliding angle of materials

Accuracy
0.5 degree

Equipment Type
Inclined Plane Testing Machine

Hardness
Steel Platform >60 HRC

Resolution
0.1 degree

Usage
Laboratory, R&D, QA

Capacity
20 kg Max

Machine Weight
Approx. 80 kg

Test Speed
Adjustable, 100 mm/min (Typical)

Test Width
300 mm

Test Stroke
0-1000 mm, adjustable

Control Mode
Digital Control Panel

Timer Function
Built-in programmable timer

Finish
Corrosion-resistant, smooth finish

Viewing Window
Transparent acrylic front panel

Drainage System
Integrated to remove test liquids

Safety System
Overcurrent & overload protection

Packaging
Wooden crate with protective padding

Angle Adjustment
Manual hand-wheel or motorized adjustment

Service Support
Installation and training support provided

Chamber Material
Powder-coated heavy-duty mild steel

Sample Holder
Stainless steel clamps with adjustable position

Inclined Plane Tester Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Eastern Europe, Middle East, Africa, Western Europe, Asia

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Inclined Plane Tester

Inclined Plane Tester

Standard to determine the coefficients of friction between film to film, film to metal and film to glass.

Speed : 1.5º to 2.0º / second.
Weight of the sled: 750 grams.
Size of sled : 4 inch X 2 inch.
Accessories : 2 nos. of S.S templates.
Paint : Powder coated.
Power : 230 Volts, 50Hz, single phase.

Precision Engineering & Durability

Constructed from powder-coated heavy-duty mild steel, the Inclined Plane Tester provides a high level of durability with a corrosion-resistant, smooth finish. Stainless steel sample clamps and a hardened steel platform (>60 HRC) ensure reliable, long-term use even under rigorous testing routines. The viewing window is made of transparent acrylic for safe, clear observation of samples during tests.

Comprehensive Testing Performance

Accommodating up to three specimens at once, with adjustable angles from 0 to 45, the tester offers exceptional flexibility. A programmable timer, digital LCD with 0.1-degree resolution, and adjustable test speed (typically 100 mm/min) enable repeatable, accurate results. Motorized or manual angle adjustment, digital control panel, and data hold features simplify operation.

Safety and User Convenience

Equipped with overcurrent and overload protection, an emergency stop, and an anti-slip base, the equipment ensures both operator and specimen safety. Integrated drainage efficiently removes test liquids and the movable table allows flexibility in handling. Floor-standing design, wooden crate packaging, and installation support guarantee seamless deployment and user satisfaction.

FAQs of Inclined Plane Tester:

Q: How is the angle of the inclined plane adjusted on this tester?

A: The angle can be set manually using a hand-wheel or via a motorized adjustment system, allowing users to select any position between 0 and 45 precisely. This flexibility ensures the tester can simulate a wide range of slope scenarios for various materials.

Q: What is the process for conducting a slip resistance or sliding angle test with this machine?

A: To conduct a test, secure up to three specimens (max size 150 mm x 150 mm, 20 kg total capacity) with stainless steel clamps. Set the desired angle and test speed using the digital control panel, program the timer, and initiate the test. Results, including sliding angles and slip resistance, are displayed on the digital LCD for accurate measurement.

Q: Where can this inclined plane tester be used effectively?

A: This machine is suitable for laboratories, R&D facilities, and quality assurance departments. Its robust construction, programmable functions, and safety features make it ideal for industrial applications in the material testing sector, particularly for exporters, manufacturers, and suppliers in India.

Q: What are the key benefits of using this equipment for material testing?

A: Key benefits include precise measurement of slip resistance and sliding angles, real-time data with 0.5 degree accuracy, high safety standards, and the ability to test multiple specimens simultaneously. The corrosion-resistant build and integrated drainage system further enhance longevity and ease of maintenance.

Q: How is operator and specimen safety maintained during testing?

A: Operator safety is ensured through overcurrent and overload protection, an emergency stop button, and an anti-slip base. The transparent acrylic viewing window allows safe monitoring of tests, and the built-in drainage system prevents liquid accumulation.

Q: What installation and service support is provided?

A: Comprehensive support includes installation assistance and user training to ensure proper setup and optimal operation. Service includes guidance on machine use, maintenance, and troubleshooting for continued performance.
