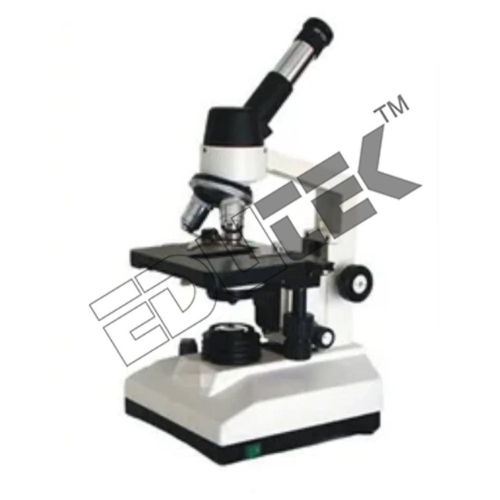

Inclined Microscopes

Get a Price/Quote

MOQ : 1 Piece

Inclined Microscopes Specification

Focus System
Coarse and Fine Adjustment

View Head
Inclined Monocular Head

Usage
Laboratory

Features
Robust metal body, student and laboratory use

Product Type
Inclined Microscopes

Spare Parts
Eyepieces, Objectives, Stage Clips

Material
Mild Steel

Application
Research Microscope

Theory
Other

Drawtube
Other

Interface
Standard Mechanical

Focal Distance
Adjustable, up to 40 mm Millimeter (mm)

Magnification
Up to 1500x

Dimensions
Approx 230 mm x 155 mm x 380 mm Millimeter (mm)

Focus Range
Coarse and Fine Millimeter (mm)

Eyepieces
WF10x, WF15x

Eyepiece Tube
Inclined at 45

Illumination
Mirror system

Coarse Adjustment Range
30 mm

Fine Adjustment Range
2 mm

Working Stage
Stage with clips, size 120 mm x 120 mm Square Millimeter (mm2)

Interpupillary Distance
Fixed Millimeter (mm)

Objective Achromatic
5x, 10x, 40x Achromatic

Condenser
Fixed condenser

Light Source
Mirror, ambient light

Weight
Approx 3.5 kg

Nosepiece
Rotating Triple Nosepiece

Operating Temperature
10C to 40C

Diaphragm
Rotating disc diaphragm

Recommended Use
Educational, Laboratory, Medical Institutes

Anti-Fungal Coating
Available on optical components

Packing
Supplied in shock-proof packing

Stage Movement
Manual, X-Y axis

Body Material
Die-cast Metal

Inclined Microscopes Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cheque, Telegraphic Transfer (T/T), Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C)

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Inclined Microscopes

Inclined Microscopes ETMS-133

Is a versatile microscope with observation tube inclined to 45° rotatable through 360°, built-in base illumination with light intensity control and 6V-20W halogen bulb. Separate coarse and graduated fine motion knobs. Slides on ball bearing ball guides. Fixed graduated square co-axial mechanical stage. Sub-stage moveable condenser and a 1.2 with iris-diaphragm. Quadruple revolving nose-piece.

Options:

With 10x, 15x or 5x hygenian eyepieces (2 nos. ) 5x, 10x, 45x,

100x oil-immersion (spring loaded) achromatic objectives

Magnification : upto 1500x
It is available with wide-field 10x eye-piece and 15x or 5x huygenian eyepiece and built-in

coaxial mechanical stage.

Carrying Case : Styrofoam Packing
Supplied with : Manual & Dust cover

Robust Construction for Demanding Settings

Crafted from die-cast metal, this inclined monocular microscope ensures structural stability and reliable use across educational labs and medical institutes. The anti-fungal optical treatment and shock-proof packing safeguard its precision components, making it durable in high-usage environments.

Versatile Optical Performance

With magnification options reaching up to 1000x and high-quality achromatic objectives, this microscope delivers clear and accurate images for biological studies. The rotating triple nosepiece, fixed condenser, and disc diaphragm enable detailed viewing and enhanced adaptability for varied specimens and applications.

User-Focused Ergonomics and Operation

Featuring a 45 inclined eyepiece tube, manual X-Y stage movement, and both coarse/fine focus ranges, the microscope offers ease of use during prolonged sessions. Its adjustable focal distance and stage clips make it accessible for students and professionals alike.

FAQs of Inclined Microscopes:

Q: How do I adjust the magnification on this microscope?

A: You can adjust the magnification by rotating the triple nosepiece to select among the 5x, 10x, and 40x achromatic objectives, and pairing them with either the WF10x or WF15x eyepieces. This configuration allows for magnification up to 1000x, suitable for most biological microscopy needs.

Q: What type of illumination does the microscope use?

A: The microscope is equipped with a mirror system that utilizes ambient light for illumination. Users can adjust the mirror to direct light onto the specimen, which is ideal for settings without built-in electrical lighting.

Q: Where can this microscope be used most effectively?

A: This model is recommended for educational institutions, laboratories, and medical institutes due to its robust build, reliability, and user-friendly features. Its manual operation and precision focus make it suitable for classroom and research settings in India and beyond.

Q: What is the process for adjusting the stage and focusing?

A: The microscope features a manual X-Y stage movement to precisely position your slide. For focusing, use the coarse adjustment knob for larger changes (range: 30 mm) and the fine adjustment knob for precision focusing (range: 2 mm).

Q: Are there any benefits to the anti-fungal coating on the optical components?

A: Yes, the anti-fungal coating protects the lenses and optical surfaces against fungal growth, significantly extending the life of the instrumentespecially in humid environments such as Indian laboratories.

Q: What spare parts are available for this microscope?

A: Spare parts including additional eyepieces, objectives, and stage clips are available from the manufacturer or authorized suppliers, ensuring the instrument remains in peak working condition over time.
