IMPACT OF JET ON VANES APPARATUS

About IMPACT OF JET ON VANES APPARATUS

Specification:

IMPACT OF JET ON VANES APPARATUS

We are counted among the mostprominent manufacturers, traders and exporters of high quality Impact of jet ofvanes. Designed in compliance with industry leading parameters, it is used tostudy the forced developed of a jet of water on different surfaces and tocompare it with momentum theory. Offered set up consists of visible testenclosure, supply tank, measuring tank and pump for closed loop watercirculation.

Description

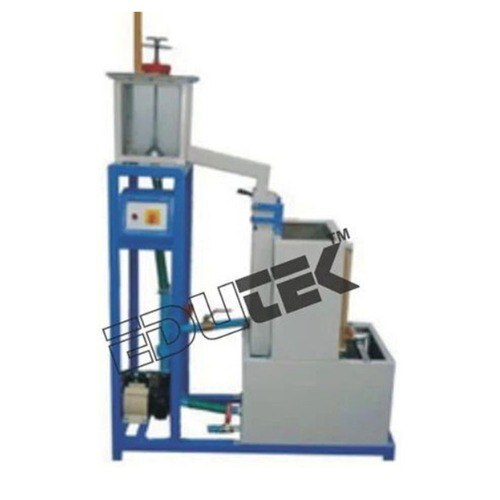

The setup consists of a two sidedclear fabrication section. Water is fed through a nozzle and dischargedvertically to strike a target carried on a stem which extends through thecover. A weight carrier is mounted on the upper end of the stem. The deadweight of the moving parts is counter balanced by a compression spring. Thevertical force exerted on the target plate is measured by adding the weightssupplied to the weight pan until the mark on the weight pan corresponds withthe level gauge. A total of two targets are provided, a flat plate and ahemispherical cup.

Experimentation:

To measure the force developed by ajet of water impinging upon a stationary object and comparison with the forcespredicted by the momentum theory

Utilities required:

Hydraulic Bench
