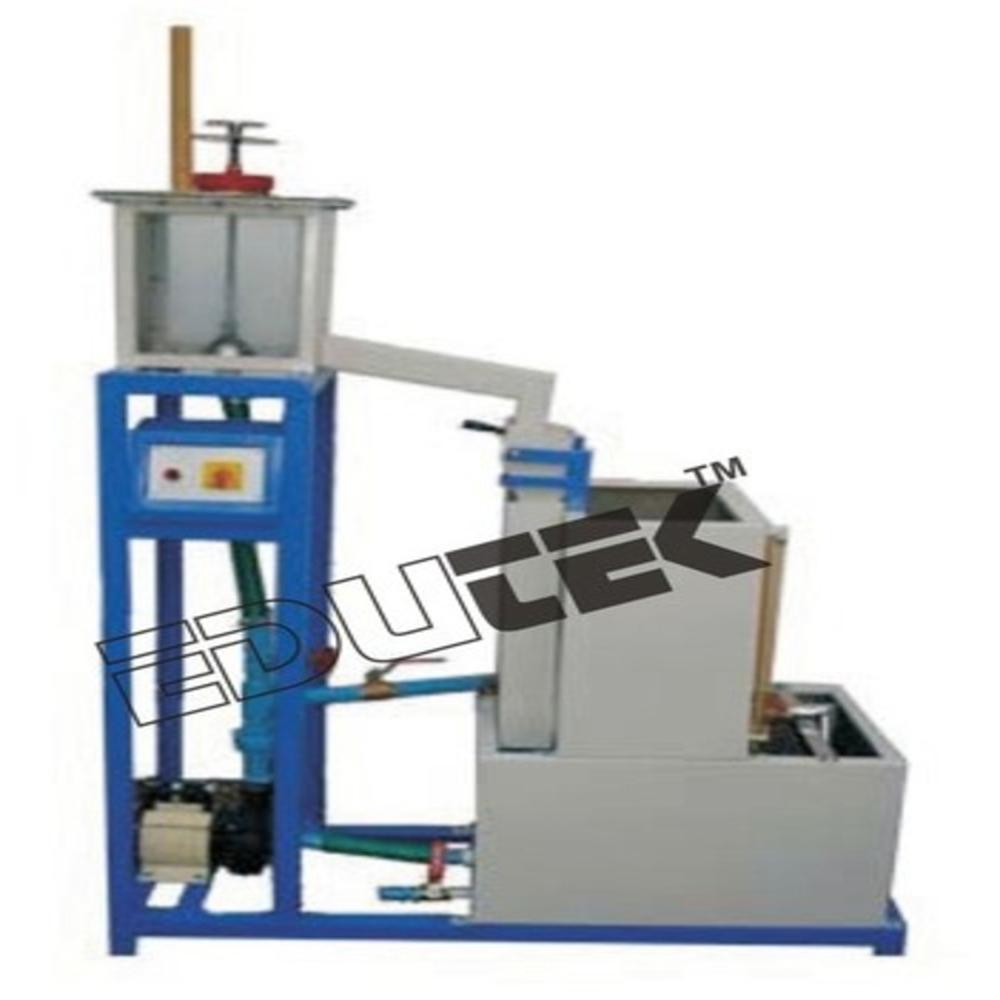

Impact Of Jet Apparatus

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Impact Of Jet Apparatus Specification

Model No
Standard/Custom Available

Feature
Study of impact forces of jet on vanes, Easy assembly & operation, Corrosion resistance

Capacity
Not less than 40 Ltr sump tank

Measurement Range
Flow rate: Up to 20 LPM (Liter Per Minute)

Accuracy
1% for flow measurement

Power Source
Electric motor driven centrifugal pump

Temperature Range
Ambient

Frequency
50 Hz

Voltage
220 V AC

Automation Grade
Manual

Core Components
SS Nozzles, Measuring Tank, Sump Tank, Collecting Tank, Pressure Gauge, Valves

Equipment Materials
SS (Stainless Steel), MS (Mild Steel), Acrylic, Brass

Type
Impact of Jet Apparatus

Usage
Laboratory, Hydraulic Experimentation

Display Type
Analog pressure gauge

Dimension (L*W*H)
900 mm x 450 mm x 1200 mm

Weight
Approx 40 kg

Vane Types
Flat, Curved, Hemispherical

Drain Valve
Provided for easy water discharge

Pump Power
0.5 HP

Water Flow Control
Stop valve provided

Experiment Coverage
Force exerted by water jet on different shaped vanes at various flow rates

Finish
Powder coated/Polished SS

Collecting Tank Capacity
Measuring tank: 20 Ltr with graduations

Nozzle Diameter
5 mm to 10 mm interchangeable

Frame Material
Powder coated MS frame

Installation
Table top or floor-mounted

Impact Of Jet Apparatus Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Telegraphic Transfer (T/T), Cheque

Sample Available
No

Main Export Market(s)
Eastern Europe, Middle East, Western Europe, Africa, Central America, South America, Asia, North America, Australia

Main Domestic Market
All India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Impact Of Jet Apparatus

Impact Of Jet Apparatus

We are counted among the most prominent manufacturers, traders and exporters of high quality Impact of jet of vanes. Designed in compliance with industry leading parameters, it is used to study the forced developed of a jet of water on different surfaces and to compare it with momentum theory. Offered set up consists of visible test enclosure, supply tank, measuring tank and pump for closed loop water circulation.

Description:

The setup consists of a two sided clear fabrication section. Water is fed through a nozzle and discharged vertically to strike a target carried on a stem which extends through the cover. A weight carrier is mounted on the upper end of the stem. The dead weight of the moving parts is counter balanced by a compression spring. The vertical force exerted on the target plate is measured by adding the weights supplied to the weight pan until the mark on the weight pan corresponds with the level gauge. A total of two targets are provided, a flat plate and a hemispherical cup.

Experimentation:

To measure the force developed by a jet of water impinging upon a stationary object and comparison with the forces predicted by the momentum theory
Utilities required: Hydraulic Bench

Technical Specifications:

Test Plates: Material Brass (2 Nos.), Flat Plate, Hemispherical Cup
Nozzle: Material Brass
Stainless Steel enclosure: Having of opposite sides made of glass.
Instruction Manual: An ENGLISH instruction manual will be provided along with the Apparatus

Versatile Hydraulic Testing

This apparatus covers a broad spectrum of experiments focused on the impact force of water jet streams on various vane shapes and surfaces. With manual flow control and accurate analog pressure display, it provides comprehensive results for hydraulic studies. Its modular set-up ensures compatibility with most laboratory spaces.

Durable Design and Materials

Manufactured using powder-coated mild steel, stainless steel, acrylic, and brass components, the Impact of Jet Apparatus guarantees long-term corrosion resistance and robust performance. The polished finish and high-quality materials ensure the equipment withstands rigorous laboratory use while maintaining precision.

Effortless Measurement and Control

A generous collecting tank with clear graduation marks (20 Ltr) and stop/drain valves makes for simple water handling, measurement, and discharge. Users can rapidly alternate nozzle sizes and vane types, streamlining experimental process and enhancing data accuracy.

FAQs of Impact Of Jet Apparatus:

Q: How is the Impact of Jet Apparatus operated during experiments?

A: The apparatus is operated manually by controlling water flow through a stop valve. An electric motor-driven centrifugal pump delivers water to interchangeable stainless steel nozzles, which direct the jet onto various vane shapes. The resulting force is measured using the analog pressure gauge and by observing changes in the collecting tank.

Q: What experiments can be performed using this apparatus?

A: Users can investigate the force exerted by water jets on flat, curved, and hemispherical vanes at different flow rates and jet diameters, allowing the study of hydraulic impact, flow measurement accuracy, and the behavior of water under different conditions.

Q: When is the apparatus most beneficial for laboratory use?

A: It is especially beneficial for educational and research laboratories needing accurate hydraulic impact studies, fluid mechanics demonstrations, and analyses of jet force on surfaces. Its robust construction and precise measurements are suited to frequent, high-accuracy testing.

Q: Where can this apparatus be installed in a laboratory setting?

A: The unit can be placed either on a tabletop or mounted on the floor. Its compact and modular design (dimensions: 900 mm x 450 mm x 1200 mm) allows flexibility in laboratory layout.

Q: What materials are used to build the Impact of Jet Apparatus?

A: The apparatus utilizes powder-coated mild steel for the frame, polished stainless steel for vanes and nozzles, and incorporates acrylic and brass for other core components, ensuring durability and resistance against corrosion.

Q: What process is followed for measuring water flow and jet impact forces?

A: Water flow is controlled via the stop valve, and the flow rate is measured by observing the change in water volume in the graduated collecting tank. The jets impact force on various vanes is assessed by reading the analog pressure gauge and noting changes in water displacement.

Q: What are the benefits of using this apparatus for hydraulic experimentation?

A: Benefits include high accuracy (1% for flow measurement), easy assembly and operation, corrosion-resistant construction, and flexibility to study multiple kinetic scenarios by using different vane types and nozzle sizes. It supports practical learning and reliable data collection for fluid mechanics research.
