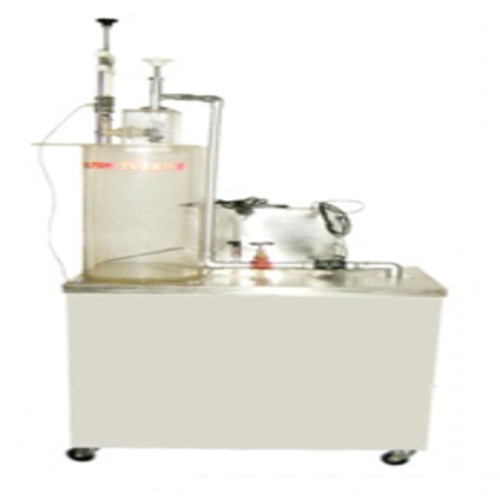

Hydraulic Turbo Machines with Peloton Turbine

Get a Price/Quote

MOQ : 1 Piece

Hydraulic Turbo Machines with Peloton Turbine Specification

Measurement Range
Flow Rate: 020 L/s; Pressure: 010 bar

Temperature Range
Ambient to 60C

Core Components
Pelton Wheel Turbine, Water Circulation Pump, Measuring Tank, Control Valve

Capacity
510 L/s (varies per model)

Accuracy
1.5% (measuring instruments)

Frequency
50 Hz

Model No
HTM-Pelton-2024

Automation Grade
Manual & Semi-automatic Option

Warranty
1 year

Power Source
Electric Motor Driven Pump

Voltage
220240 V AC

Equipment Materials
Stainless Steel (main components), Acrylic (casing), Powder Coated Steel (frame)

Type
Hydraulic Turbine Test Rig (Pelton Wheel Type)

Usage
Engineering Laboratory Experiments; Educational Demonstration

Display Type
Analog Pressure Gauges & Rotameter Scales

Dimension (L*W*H)
1200 mm x 900 mm x 1100 mm (approx.)

Weight
Approximately 6575 kg

Water Tank Capacity
100-150 Liters

Maintenance
Low, With Easily Replaceable Parts

Safety Features
Overload Protection, Leak-proof Joints

Turbine Material
High-Grade Stainless Steel Buckets and Shaft

Connections
Standard Pipe Fittings with Quick-Release Couplings

Speed Measurement
Digital/Analog Tachometer (Optional)

Nozzle Type
Single Jet Adjustable

Installation
Portable, Table-top Design

Pump Rating
0.5 HP to 2 HP (depending on variant)

Experiment Capability
Determination of Efficiency, Study of Performance Curves, Impact of Jet on Buckets

Hydraulic Turbo Machines with Peloton Turbine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Hydraulic Turbo Machines with Peloton Turbine

HYDRAULIC TURBO MACHINES WITH PELTON TURBINE UNIT

The unit is a closed water circuit comprises a tank, a standard centrifugal pump with variable speed and a flow control valve to adjust the back pressure. The speed is detected contact-free by means of an inductive displacement sensor on the motor shaft. To determine the drive power, the drive motor is mounted on swivel bearings and equipped with a force sensor to measure the drive torque. Pressures at the inlet and outlet of the pump are measured. The flow rate is measured by means of an electromagnetic flow meter. The measured values are displayed digitally and processed further on a PC. The PC is used to calculate the power output data of the examined turbo machine and to represent them in characteristics. Pelton Turbine placed on top of the storage tank. The centrifugal pump supplies the turbine with water.

Determining characteristic variables of a centrifugal pump determining characteristic variables of water turbines together with the accessories.
Standard centrifugal pump ( head: 24m) - flow rate: 31m3/h - Drive motor with variable speed
Power output: 2kW Pelton turbine is a type of free-jet resp. impulse turbine which converts the pressure energy of water into kinetic energy entirely in the distributor.
230V, 60Hz, 1 phase software for data acquisition and PC with Windows
Complete with all required accessories.

Durable Design & Materials

Built with high-quality stainless steel for core components, powder-coated steel for its sturdy frame, and acrylic for casing, the test rig ensures longevity and consistent performance. Leak-proof joints and easily replaceable parts make maintenance straightforward, keeping downtime low and productivity high during laboratory use.

Versatile Experimentation & Measurement

The test rig supports key experiments like efficiency determination, performance curve analysis, and jet impact studies. Digital or analog tachometers, rotameter scales, and pressure gauges facilitate accurate measurement of speed, flow rate, and pressure. Measurement ranges include flow rates up to 20 L/s and pressures up to 10 bar, suitable for varied hydraulic studies.

FAQs of Hydraulic Turbo Machines with Peloton Turbine:

Q: How does the Hydraulic Turbo Machines Pelton Turbine Test Rig help in educational demonstrations?

A: The Pelton Turbine Test Rig provides hands-on experience for students and researchers, allowing them to conduct experiments on efficiency, study performance curves, and analyze jet impact on turbine buckets. Its transparent casing and accurate measurement instruments enable clear observation and precise data collection.

Q: What are the core components included in this test rig?

A: This rig features a Pelton wheel turbine, an electric motor-driven water circulation pump, a measuring tank, control valve, analog pressure gauges, rotameter scales, quick-release pipes, and digital or analog tachometer for speed measurement. All main components utilize high-grade stainless steel for durability.

Q: Where can this hydraulic turbine test rig be installed?

A: The rig is designed for portability and fits standard laboratory spaces due to its compact dimensions (1200 mm x 900 mm x 1100 mm). Its table-top design and standard pipe fittings make installation straightforward for engineering laboratories or educational institutes.

Q: How is the safety of users ensured during experiments?

A: Safety features include overload protection to prevent equipment damage and leak-proof joints for safe water containment. The powder-coated steel frame and acrylic casing also contribute to user safety during operation and observation.

Q: What type of maintenance does the Pelton Turbine Test Rig require?

A: Maintenance is minimal due to its robust build and leak-proof connections. The main parts are designed to be easily replaceable, so routine checks and occasional replacements keep the rig functioning efficiently with little downtime.

Q: What is the process for measuring efficiency and performance using this test rig?

A: Users can adjust the single jet nozzle and control valve to vary water impact and flow conditions. Measurements of speed, flow rate, and pressure are taken with digital or analog instruments, allowing analysis of efficiency and generation of performance curves. The rigs manual and semi-automatic options cater to different experimental requirements.

Q: What benefits does this hydraulic turbine test rig offer to labs and educators?

A: The rig is compact, portable, easy to operate, and requires low maintenance. It delivers reliable measurements with 1.5% accuracy and supports versatile experimental setups for performance study, making it an ideal tool for both practical teaching and research in fluid mechanics and hydraulic machinery.
