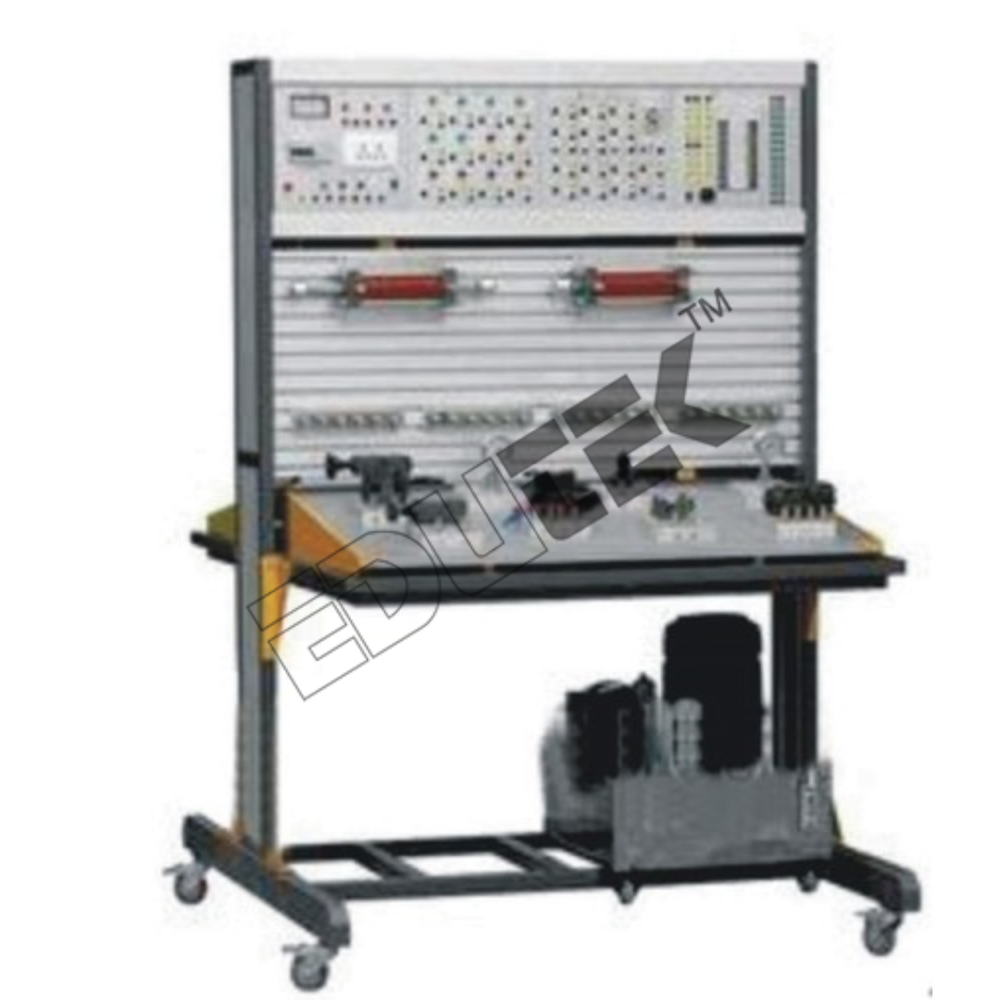

HYDRAULIC TECHNOLOGY TRAINER

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HYDRAULIC TECHNOLOGY TRAINER Specification

Core Components
Hydraulic Pump, Control Valves, Hydraulic Cylinder, Pressure Gauge, Hydraulic Hoses

Voltage
230 V AC Volt (v)

Frequency
50 Hz Hertz (HZ)

Accuracy
100 % %

Model No

Automation Grade
Manual

Feature
Highly Efficient

Measurement Range
0-100 Bar

Power Source
Electric

Equipment Materials
Mild Steel, Powder Coated

Type
Hydraulic Training Equipment

Usage
Laboratory

Display Type
Analog

Dimension (L*W*H)
1100 x 700 x 900 mm (approx.) Millimeter (mm)

Weight
Approx. 35-40 kg Kilograms (kg)

About HYDRAULIC TECHNOLOGY TRAINER

HYDRAULIC TECHNOLOGY TRAINER DOUBLE FACE

Edutek Instrumentation are Manufacturer and Supplier Company in India,We are Exporter in India and other country transmission demonstrations, hydraulic transmission circuit training, which covers the objects of pressure, flow rate, direction control and so on. By the operation of this device, students can understand the structure and function of various hydraulic components and circuit, the working principle of hydraulic pump station, the assembly and disassembly of each component and so on.

TECHNICAL PARAMETERS

Mounting panel: Two mounting panels on different sides, which is made up of aluminum alloy with T-slot.
Safety excess flow device: The safety excess flow device can protect the whole pump station and prevent the overflow damage of hydraulic components from the wrong operation. The device is designed with four adjustable and mechanical tight parts; it can be connected with the pump and transparent hydraulic handling device at the same time, making the whole hydraulic system work stably and efficiently.
Pump station: the pump station used combined integration design, including 370W oil mist motor, gear pump and leakage protection switch. It can be installed on the aluminum alloy slot, thus, student can observe and operate it conveniently.

Hands-On Hydraulic Training

This versatile trainer offers hands-on experience with real hydraulic systems for students and professionals. Its high efficiency and accuracy allow for practical learning and experimentation with core components like hydraulic pumps and control valves, all safely managed via integrated safety features. Suitable for any educational or lab setting, it ensures comprehensive hydraulic knowledge through multiple experiments.

Durable and User-Friendly Design

Built with powder-coated mild steel, this trainer supports lasting use in demanding educational environments. The analog display and manual controls simplify operation, while floor-mounted installation ensures stability. With precise pressure measurement and overload protection, users enjoy both safety and ease of use.

FAQs of HYDRAULIC TECHNOLOGY TRAINER:

Q: How does the Hydraulic Technology Trainer enhance laboratory learning?

A: The Hydraulic Technology Trainer provides hands-on training with real hydraulic components, allowing learners to conduct multiple experiments. Its accurate analog display and integrated safety features support practical understanding and reinforce theoretical concepts, making it valuable for laboratory education.

Q: What types of experiments can users perform with this trainer?

A: Users can perform a wide range of hydraulic experiments, such as controlling pressure, flow, and direction using the included valves and cylinders. These exercises help students and trainees understand basic principles and advanced operations of hydraulic systems.

Q: When is the ideal time to use this equipment in a training curriculum?

A: This trainer is best integrated during practical sessions in courses related to fluid mechanics, hydraulics, or mechanical engineering, especially when students need to apply theoretical knowledge to real-world scenarios.

Q: Where should the Hydraulic Technology Trainer be installed for optimal operation?

A: The trainer should be installed in laboratory or training center environments, on a level floor where electrical supply (230V AC, 50 Hz) is available, ensuring safety, stability, and ease of access for students and instructors.

Q: What is the process for operating the hydraulic training equipment?

A: To operate, fill the oil reservoir, power the system, and set up the desired experiment using the manual controls. Adjust the valves and monitor the system via the analog pressure gauge, ensuring all safety precautions are followed with the pressure relief valves and overload protection features.

Q: What are the primary benefits of using this hydraulic trainer in educational settings?

A: The trainer enhances understanding of hydraulic principles through interactive experiments, increases user safety with built-in features, and supports consistent, accurate training outcomes. Its durable design also ensures reliable, long-term use.
