Hydraulic Technology Trainer

Get a Price/Quote

Hydraulic Technology Trainer Specification

Accuracy
100 %

Power Source
Electric

Core Components
Hydraulic pump, Valves, Hoses, Reservoir, Fittings

Model No
HTT-3053

Capacity
Standard

Automation Grade
Semi-Automatic

Voltage
220-240 V AC

Temperature Range
Ambient to 60 C

Measurement Range
Up to 250 Bar

Frequency
50 Hz

Feature
Highly Efficient

Equipment Materials
Mild Steel, Powder Coated

Type
Hydraulic Training System

Usage
Laboratory

Display Type
Analog and Digital

Dimension (L*W*H)
1200 x 800 x 1200 mm

Weight
Approx. 55 kg

About Hydraulic Technology Trainer

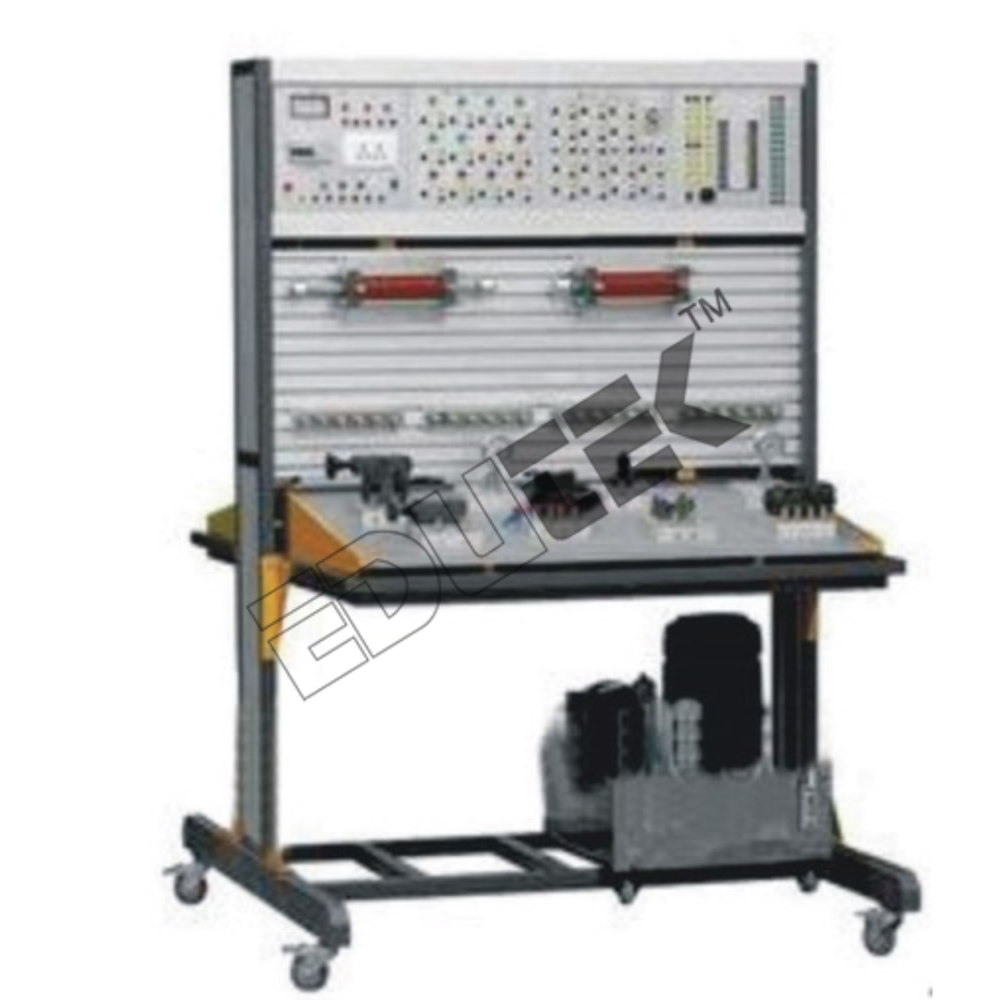

HYDRAULIC TECHNOLOGY TRAINER DOUBLE FACE

This device is composed of control unit, high quality industrial grade hydraulic components,

comprehensive

pump station, safety excess flow device, hydraulic handling device, pressure measurement unit,

aluminium alloy mounting panel(double face), different type hydraulic joints, tool kits, hydraulic

simulation software and so on. It can be used for various hydraulic transmission demonstrations,

hydraulic transmission circuit training, which covers the objects of pressure, flow rate, direction

control and so on. By the operation of this device, students can understand the structure and

function of various hydraulic components and circuit, the working principle of hydraulic pump

station, the assembly and disassembly of each component and so on.

EXPERIMENTS HYDRAULIC TECHNOLOGY TRAINER

Understanding of hydraulic components structure, symbols and functions, Single stage pressure

regulating loop of effusion valve, One level pressure-relief loop of relief valve Oil in speed regulating loop of governor valve, Oil return speed

regulating loop of governor valve, Throttle governing loop of side oil line one way valve, Reversing loop of direction valve, Series speed regulating

loop of speed control valve and one way valve, Parallel speed regulating loop of speed control valve and one way valve, Speed regulating loop of oil

in and oil return one way valve, Disassembly and assembly of relief valve, Disassembly and assembly of Effusion valve, Direction valve, Fluid cylinder,

One way valve, Governor valve, Hydraulic connector.

Comprehensive Training Modules

The system incorporates both basic and advanced hydraulic circuits, enabling step-by-step learning for students and professionals. With hands-on modules, users can understand hydraulic principles, component functions, and system setup. Accessibility to a wide range of experiments allows for thorough practical knowledge acquisition.

Safety and Efficiency First

Designed with high-grade safety features such as overload and pressure relief protections, this trainer prioritizes user safety during operation. The advanced system ensures efficient energy use, while the robust mild steel build and powder coating enhance equipment longevity and reliability in daily laboratory environments.

Versatile Design and User Convenience

Mobility is achieved through a stable trolley base with lockable wheels, making it convenient to reposition within training spaces. The inclusion of both analog and digital displays aids in accurate monitoring, while the adjustable flow and pressure settings cater to diverse experimental requirements for a seamless learning experience.

FAQs of Hydraulic Technology Trainer:

Q: How is the Hydraulic Technology Trainer operated and controlled?

A: The trainer operates via a 0.75 kW electric motor, powered by a standard 220-240 V AC supply. Users can adjust the pump flow rate between 2 and 5 LPM and control operating pressure up to 250 bar using the built-in control panel. Both analog and digital displays are provided for precise real-time monitoring.

Q: What training modules are included with the Hydraulic Technology Trainer?

A: This trainer comes with modules for both basic and advanced hydraulic circuits, allowing comprehensive learning from foundational principles to more complex hydraulic system configurations. Each module is supported by a detailed instruction manual for step-by-step guidance.

Q: When is this trainer most beneficial for use?

A: The Hydraulic Technology Trainer is ideally used in educational laboratories and technical institutes during hands-on training sessions. Whether introducing hydraulic basics or teaching advanced circuit design, its most beneficial for practical demonstrations and experimentation in a safe, controlled environment.

Q: Where can the Hydraulic Technology Trainer be installed and used?

A: Designed for laboratory environments, the mobile base with lockable wheels allows it to be easily positioned wherever required within educational facilities, research institutes, or industrial training centers. Its compact dimensions (1200 x 800 x 1200 mm) facilitate convenient placement.

Q: What is the process for conducting experiments using this trainer?

A: To conduct experiments, connect the required hydraulic components and configure the circuit as described in the instruction manual. Select the desired flow rate and pressure, then monitor outputs on the analog or digital displays. The safety systems ensure secure operation throughout the process.

Q: How does the safety system protect the users and equipment?

A: The trainer includes overload and pressure relief protection, which automatically limits excessive pressure and prevents component damage. High-pressure flexible hoses and robust construction further enhance user safety, making it suitable for repeated educational use.
