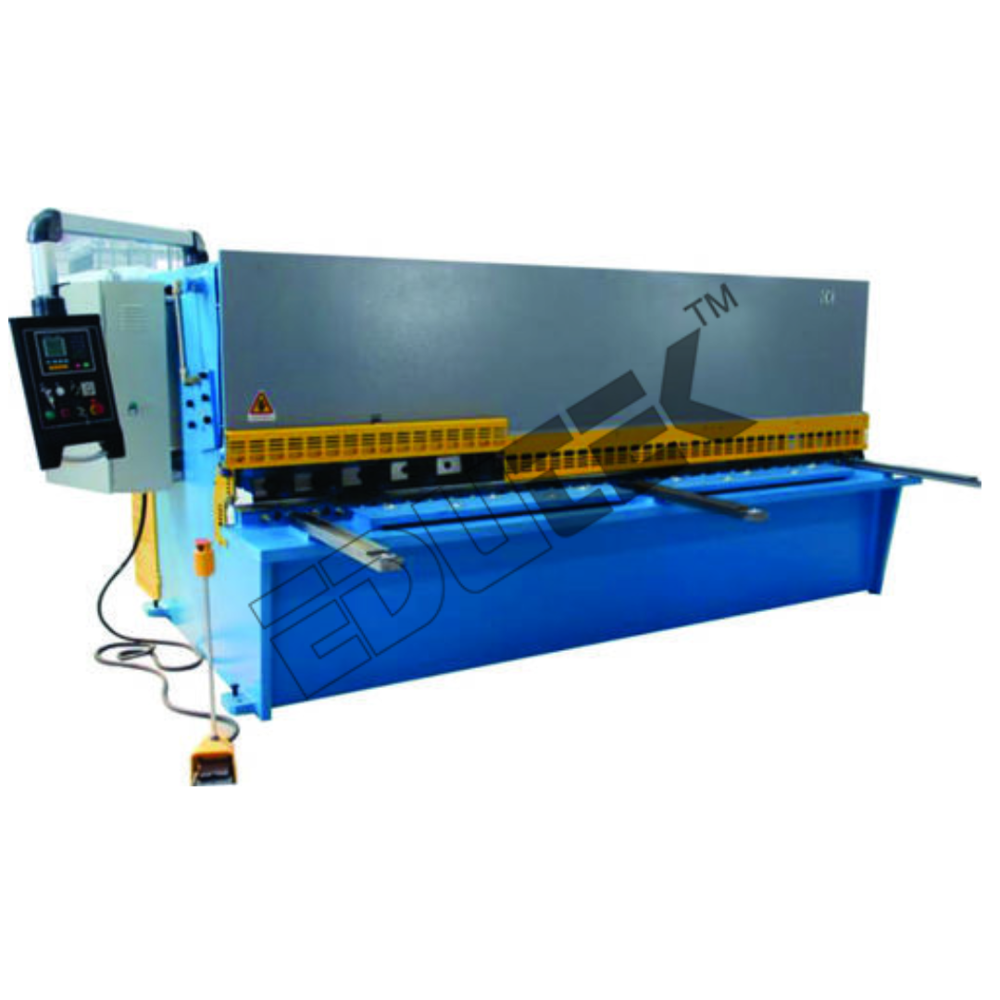

HYDRAULIC GUILLOTINE MACHINE

Name: HYDRAULIC GUILLOTINE MACHINE
Brand: EDUTEK INSTRUMENTATION
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HYDRAULIC GUILLOTINE MACHINE Specification

Temperature
5C 40C

Specimen Size
Customizable sheet size

Max Height
1600 mm

Equipment Type
Hydraulic Guillotine Machine

Power Supply
415V, 3 Phase, 50 Hz

Measuring Range
0-2500 mm (cutting length)

Accuracy
0.2 mm/cut

Features
Sheet support, back gauge, hydraulic hold-down

Resolution
0.1 mm

Response Time
Instantaneous hydraulic response

Number of Specimens
1 per cut

Interface Type
Touch panel/Manual

Automation Grade
Semi-automatic/Automatic

Frequency
50 Hz

Humidity
85%

Test Range
Up to 25 mm mild steel

Mounting Type
Floor mounted

Hardness
Up to 200 HB (material)

Operating Voltage
415V AC

Application
Sheet metal cutting in fabrication plants

Display Type
Digital and Analog Indicators

Usage
Industrial metal sheet cutting

Capacity
10 mm 25 mm sheet thickness

Machine Weight
3200 kg

Test Speed
8-15 cuts/minute

Test Width
Up to 2500 mm

Test Stroke
Variable (up to 150 mm)

Control Mode
Hydraulic automatic

Oil Tank Capacity
250 liters

Safety Features
Interlocked guards & emergency stop

Back Gauge Range
600 mm (motorized)

Noise Level
<78 dB(A)

Frame Construction
Heavy-duty welded steel frame

Lubrication System
Automatic centralized lubrication

Minimum Cutting Thickness
1 mm

Color
Industrial blue/grey

Blade Material
Hardened alloy steel blades

HYDRAULIC GUILLOTINE MACHINE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About HYDRAULIC GUILLOTINE MACHINE

HYDRAULIC GUILLOTINEMACHINE

CNC hydraulic cuttingshearing machine, width Full Bed
Capacity : 3mm to 6mm
Cutting thickness max. : 6mm
Shearing Width : 2500- 6000mm
Motor Power : 7.5- 5.5 Kw
Voltage : 380V 50Hz / 440V 60Hz
Cutting thickness max. : 6mm
(L x W x H) : 3840 x 1710 x 1620mm.

CNC Router, 3-axis setup.

Windows 7 or latest operating platform 19 flatscreen monitor with 2 USB connections.

Network connection RJ 45 10/100 M bit.

Easy input of processing data via EluCam 3-Ddisplay.

Network connection RJ 45 10/100 M bit

Precision Sheet Cutting for Demanding Environments

Designed with industrial fabrication in mind, the Hydraulic Guillotine Machine combines precise engineering with robust frame construction. Its advanced hydraulic system, durable blades, and automated controls deliver high-quality, consistent sheet cutting for a variety of metal thicknesses. Operators benefit from easy-to-use interfaces and reliable digital or analog displays.

Intelligent Safety and Efficient Operation

The machine includes comprehensive safety features such as interlocked guards and emergency stop functions, ensuring operator protection at all times. An automatic centralized lubrication system and intuitive touch panel/manual interface streamline maintenance and operation, supporting efficiency and longevity even in continuous-use scenarios.

FAQs of HYDRAULIC GUILLOTINE MACHINE:

Q: How does the Hydraulic Guillotine Machine ensure precise sheet metal cutting?

A: The machine achieves high-precision cutting through its motorized 600 mm back gauge range, digital/analog accuracy indicators (0.2 mm/cut), and hardened alloy steel blades, suitable for sheets up to 25 mm thick and 2500 mm wide.

Q: What safety features are integrated into the hydraulic guillotine for operator protection?

A: It comes equipped with interlocked guards that prevent operation when open and an emergency stop button, ensuring rapid shutdown in any hazardous situation to safeguard users.

Q: When should the automatic lubrication system be maintained or checked?

A: The automatic centralized lubrication system is designed for consistent performance but should be periodically checked in line with the manufacturers guidelines to ensure optimal operation and machine longevity.

Q: Where is the ideal environment to install this machine?

A: This floor-mounted machine performs best in industrial fabrication facilities with 415V, 3-phase, 50 Hz power, ambient temperatures between 5C40C, and humidity at or below 85%.

Q: What is the typical usage process for sheet cutting applications?

A: Users select sheet size and thickness, adjust the back gauge through the touch panel/manual interface, position the metal sheet, and initiate the cutting cycleeither semi-automatically or automaticallywhile hydraulic hold-downs secure the material.

Q: How does the machine benefit sheet metal fabrication operations?

A: It enhances productivity with fast, accurate cuts (815 cuts/minute), minimizes manual handling thanks to automated features, and delivers consistent results for medium-to-heavy duty sheet metal processing, improving manufacturing efficiency overall.
