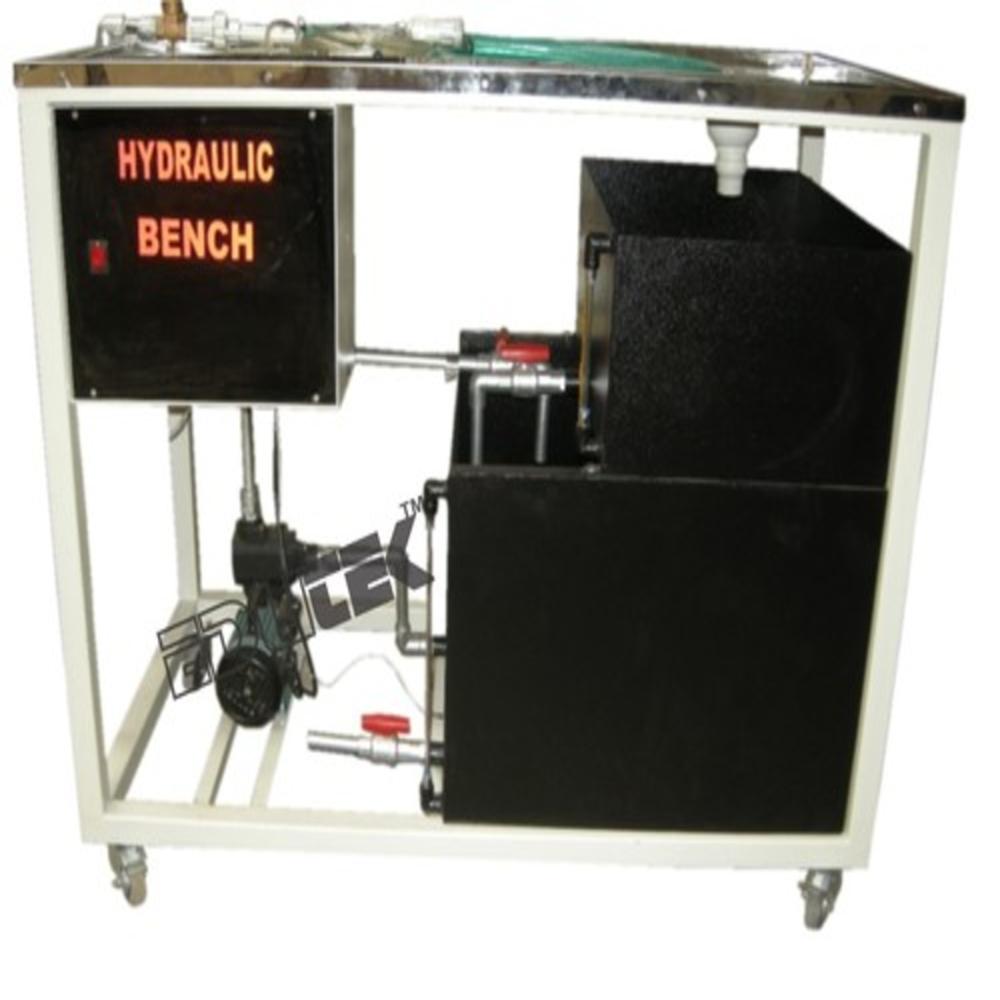

Hydraulic Bench With Transparent Variable Speed Pump

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Hydraulic Bench With Transparent Variable Speed Pump Specification

Accuracy
100 %

Dimension (L*W*H)
1000x730x1100 Millimeter (mm)

Weight
120 Kilograms (kg)

Warranty
1 year

Feature
Highly Efficient

Type
HYDRAULIC BENCH WITH TRANSPARENT VARIABLE SPEED PUMP

Usage
Laboratory

About Hydraulic Bench With Transparent Variable Speed Pump

HYDRAULIC BENCH WITH TRANSPARENT VARIABLE SPEED PUMP

The Basic Hydraulic Bench is of volumetric type and has been designed to provide continuous and controlled supply of water to conduct various experiments using auxiliary modules in typical Fluid Mechanics and Hydraulics Laboratory. The unit is an ideal service unit for conducting student projects. Once filled, no external water supply is required. Water is recycled between the Experiment Module, Measuring Tank and the Storage Tank by the Centrifugal Pump.Several experiments in Fluid Mechanics and Hydraulics require continuous and controlled supply of water. The Basic Hydraulic Bench provides a controlled recirculation water supply to conduct experiments.The Basic Hydraulic Bench is a very important module and is recommended for all Fluid Mechanics and Hydraulics Laboratories in Educational Institutions. It is a basic module for flow related experiments using auxiliary modules

The frame shall be: frame , painted in relief, trolley
Made of rectangular shape 25x25x2 mm
Dimensions 988X702X910 h mm

The feed tank with:

60 l capacity
Plastic material

The pump shall be:

Head in transparent Plexiglas
Power: 0,37 kW
Speed: 02900 rpm by inverter
Flow rate: 1,6 4,8 m/h
Head: 13,3 9 m HO

The calibrated graduated evacuation tank shall allow:

The continuous measurement of water flow in conditions of high or low flow

The vacuum/pressure gauge shall be:

AISI 304 stainless steel case
parties to contact: brass / copper alloy
nominal diameter: 100mm
measuring range: -1 3 bar
accuracy class: 1

The drain tank shall be:

with surface supporting the training modules in PVC ivory coloured
size 970x675x8 mm thick
The bench shall be complete the following valves
Control valve (vacuum pressure)
Control valve (discharge pressure)
Delivery laminating valve
Suction laminating valve
Discharge orifice control valve

The electric control board shall be equipped with:

Circuit breaker and differential switch
Potentiometer for pump speed regulation
Digital rpm meter

The supplies must be:

Power: 220/240 V AC single phase, 50/60 Hz
Water: filling the feed tank before use
Empty Weight: 120kg
Dimensions: mm 1000x730x1100 h

Precision for Laboratory Applications

This hydraulic bench offers exceptional accuracy of 100%, making it ideal for teaching and research environments where precise measurement is crucial. Its transparent design and variable speed pump allow users to visually assess water behavior, enhancing learning and experimentation.

User-Friendly Features and Durability

The bench is crafted with dimensions of 1000x730x1100 mm and a total weight of 120 kg, ensuring stability and ease of use. Highly efficient operation, along with a one-year warranty, provides peace of mind for institutions investing in reliable laboratory equipment.

Manufactured for Export and Local Supply

As an exporter, manufacturer, and supplier in India, this hydraulic bench is designed to meet global standards. It accommodates diverse laboratory needs, offering a perfect blend of quality, usability, and long-lasting performance.

FAQs of Hydraulic Bench With Transparent Variable Speed Pump:

Q: How does the transparent variable speed pump benefit laboratory experiments?

A: The transparent variable speed pump allows users to observe water flow and adjust the speed for different experimental requirements, resulting in greater control and clearer understanding during hydraulic studies.

Q: What is the process for installing the hydraulic bench in a laboratory?

A: Installation involves positioning the bench (1000x730x1100 mm) on a stable surface, connecting the pump to the water source, and running initial calibration to ensure accuracy and efficiency before commencing experiments.

Q: Where is this hydraulic bench manufactured and supplied?

A: This model is both manufactured and supplied in India, supporting export and domestic needs with superior build standards and reliable local service.

Q: When should I consider using this bench in my laboratory setup?

A: This hydraulic bench is ideal for use in teaching laboratories, research centers, and industrial training facilities whenever precise hydraulic measurement and efficient demonstration are required.

Q: What are the key usage benefits of the hydraulic bench with a variable speed pump?

A: Its design ensures high efficiency, ease of operation, and accurate results. The transparency and adjustable pump make it highly versatile for various hydraulic studies, improving the quality of experimental outcomes.

Q: How is accuracy maintained at 100% during operation?

A: The bench is engineered with precision components and a calibrated variable speed pump, ensuring consistent and accurate readings for all hydraulic experiments as specified.

Q: What kind of warranty and after-sales support is provided?

A: A one-year warranty comes standard, with support available from the manufacturer and supplier in India for maintenance, repairs, and any operational queries.
