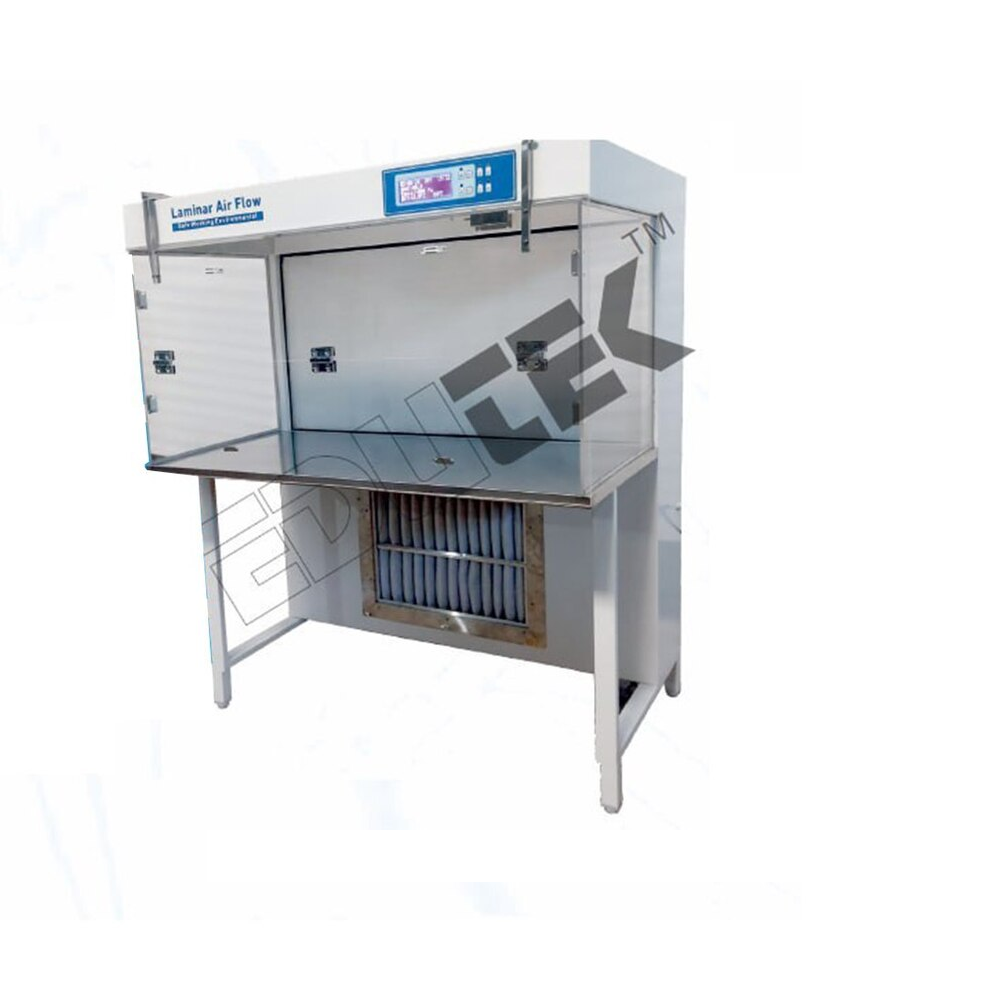

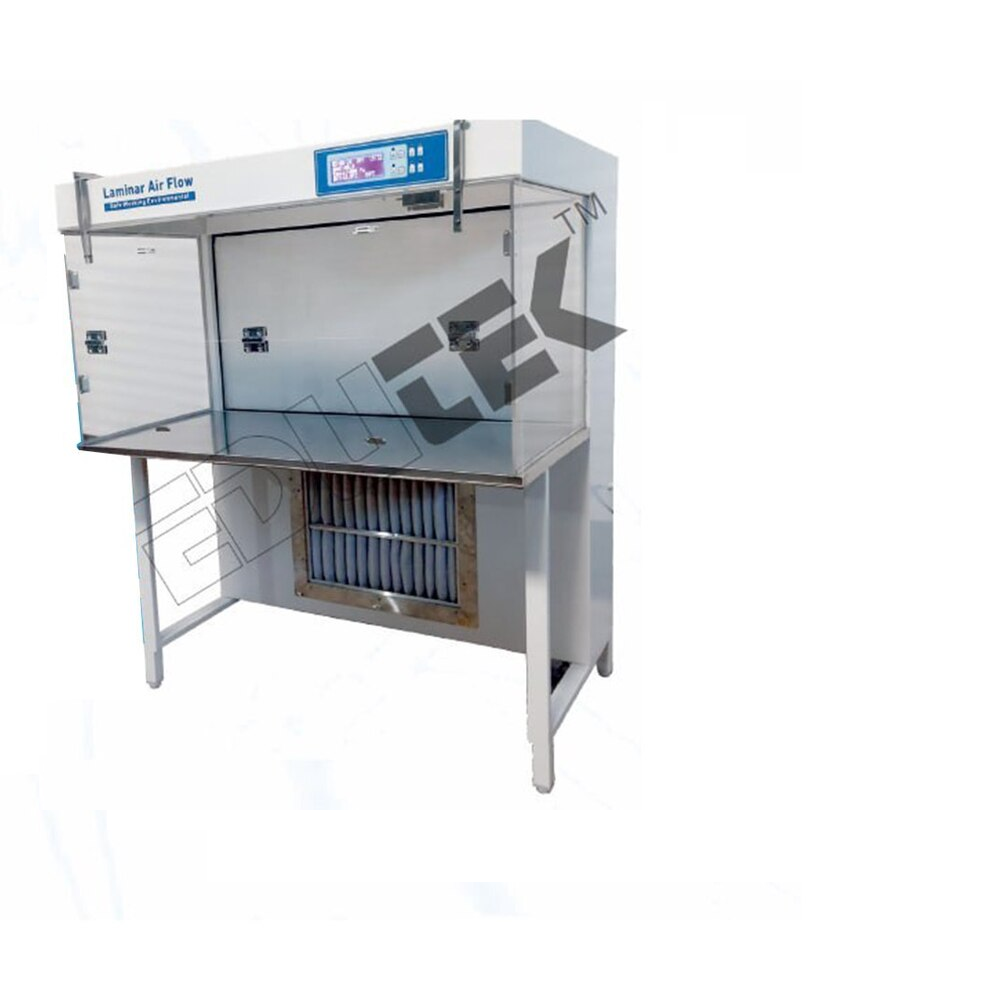

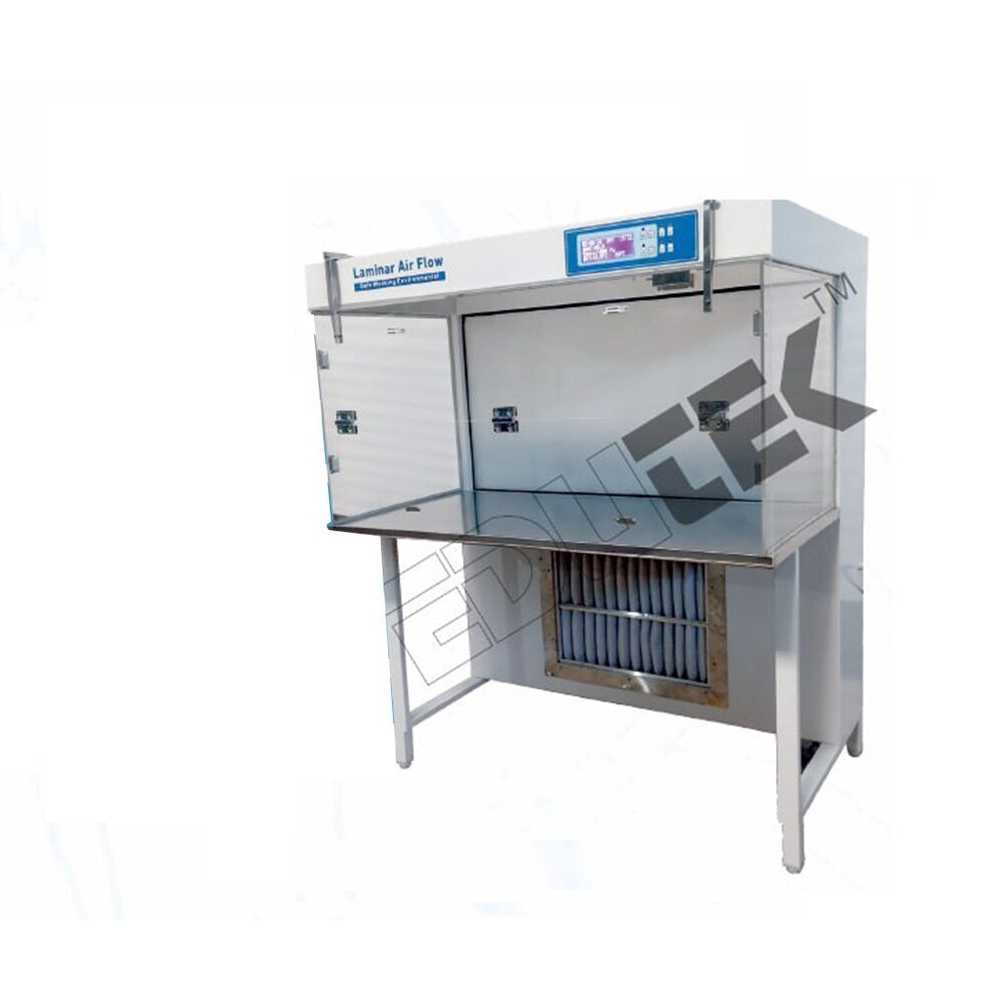

HORIZONTAL LAMINAR AIRFLOW CABINET

Name: HORIZONTAL LAMINAR AIRFLOW CABINET
Brand: EDUTEK INSTRUMENTATION
Price: 1800.0 INR
Availability: InStock

Price 1800.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HORIZONTAL LAMINAR AIRFLOW CABINET Specification

Warranty
1 YEAR

Automation Grade
Semi-Automatic

Temperature Range
Ambient to 50C Celsius (oC)

Measurement Range
Air Flow Velocity: 0.3 0.5 m/s

Frequency
50 Hz Hertz (HZ)

Accuracy
0.5% for airflow velocity mm

Model No
EFH-943

Material
SS

Power Source
230V AC Mains

Core Components
HEPA Filter, Motor Blower, Stainless Steel Body, Fluorescent Light, Manometer

Feature
Low Noise Operation, High Efficiency Particulate Air (HEPA) Filtration, UV Germicidal Lamp

Voltage
230V Volt (v)

Equipment Materials
SS (Stainless Steel)

Type
Horizontal Laminar Airflow Cabinet

Usage
Laboratory/Pharmaceutical/Biological Research

Display Type
Analog/LED

Dimension (L*W*H)
Approx. 4ft x 2ft x 2ft Foot (ft)

Weight
Approx. 70-100 Kg Kilograms (kg)

Air Cleanliness Level
Class 100 as per US Federal Standard 209E

Door Operation
Manual/Sliding

Control Panel
On/Off switch for Blower, UV, Light

Blower Motor
Dynamic balanced, vibration-free

Pre Filter
Washable Synthetic Filter

Illumination
LED or Fluorescent Lighting

Front Door
Acrylic or Tempered Glass

Work Table Material
Stainless Steel 304 Grade

Side Panels
Toughened Glass

Finish
Powder Coated or Matt Finish

Electrical Socket
Single/Double as per requirement

Mounting Type
Table Top / Floor Standing

Air Velocity
0.3 - 0.5 m/s (average across work surface)

UV Lamp
Optional 1 x 15W

Noise Level
Less than 65 dB

HORIZONTAL LAMINAR AIRFLOW CABINET Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque

Packaging Details
Carton Box, Export Quality also Available

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About HORIZONTAL LAMINAR AIRFLOW CABINET

HORIZONTAL LAMINAR AIRFLOW Edutek Horizontal Laminar Airflow Cabinet is designed to provide a clean air environment for research operation which required complete anti-bacterial working area The series involves constant positive pressure inside the cabinet which prevents intake of contaminated air features Low noise level Low power consumption Comfortable lighting and legroom Equipped with an energy efficient motor blower Intuitive and easy to use microprocessor controller Cold-rolled steel with anti-bacterial powder coating exterior and SS 304 interior for operations Anti-ultraviolet radiation toughened glass 5mm side window Motorized front window and UV timer available Washable polyester fiber pre-filter with 85% efficiency at 5um large particles Microprocessor control system with LCD LED display Direct drive high strength motor with impellers to deliver consistent airflow with lesser noise and vibration Wind speed adjusted Application Edutek Horizontal Laminar Airflow Cabinet is used in research and manufacturing to other fields such as Aerospace bioscience pharmaceutical production and food processing medical research laboratory Hospitals manufacturing facilities and other research and production environment

Precision HEPA Filtration for Contaminant-Free Workspace

This airflow cabinet utilizes a high-efficiency particulate air (HEPA) filter to remove 99.97% of airborne contaminants, ensuring a pristine working environment. Combined with a washable synthetic pre-filter, this filtration system provides robust protection for sensitive laboratory work, minimizing the risk of sample contamination.

Robust Design Meets Versatile Applications

Engineered with stainless steel 304 grade for the work table and body, and toughened side glass panels, this cabinet withstands sustained laboratory use. Whether in pharmaceutical, biological, or research labs, its ergonomic build, customizable mounting options, and durable materials guarantee reliability and adaptability in various scientific environments.

Advanced Illumination and Safety Features

The horizontal laminar airflow cabinet comes equipped with efficient LED or fluorescent lighting for excellent work visibility. An optional UV germicidal lamp (1 x 15W) enables thorough decontamination when required, while safety mechanismssuch as manual/sliding front doors and analog/LED displayssupport user safety and operational awareness.

FAQs of HORIZONTAL LAMINAR AIRFLOW CABINET:

Q: How does the EFH-943 Horizontal Laminar Airflow Cabinet maintain Class 100 air cleanliness?

A: The cabinet is equipped with a HEPA filter, which traps 99.97% of particles down to 0.3 microns, and a washable synthetic pre-filter for coarse particles. Dynamic balanced, vibration-free blower motors maintain a steady airflow of 0.30.5 m/s across the workspace, ensuring a consistent Class 100 air cleanliness level as per US Federal Standard 209E.

Q: What types of lighting are integrated and how does it benefit laboratory work?

A: The EFH-943 features either LED or fluorescent lighting, which illuminates the workspace clearly and efficiently. Optimal lighting reduces eye strain, improves visibility, and supports accurate handling of sensitive materials inside the cabinet, making it ideal for precise laboratory procedures.

Q: When should the UV lamp be utilized, and what is its purpose?

A: The optional 15W UV germicidal lamp should be activated before or after laboratory use, never during work with samples. Its ultraviolet rays help in disinfecting the work surface by deactivating microorganisms, enhancing overall contamination control and maintaining aseptic conditions.

Q: Where is the horizontal laminar airflow cabinet typically used?

A: This cabinet is designed for laboratory, pharmaceutical, and biological research settings. Its robust construction, high air cleanliness, and efficient filtration make it suitable for facilities that require controlled contamination-free environments, such as research labs, cleanrooms, and production areas.

Q: What is the process for operating the control panel?

A: Users operate the cabinet via a control panel that includes on/off switches for the blower, lighting, and optional UV lamp. The panel may feature either analog or LED display to show current operational status, making it straightforward to monitor and manage airflow, illumination, and disinfection cycles.

Q: How does the cabinets material and design benefit daily laboratory use?

A: Manufactured from stainless steel 304 grade, the cabinet resists corrosion and is easy to clean, supporting sterile practices. The durable powder-coated or matt finish further enhances longevity, while features like toughened glass panels and ergonomic design offer both protection and comfort during continuous lab work.
