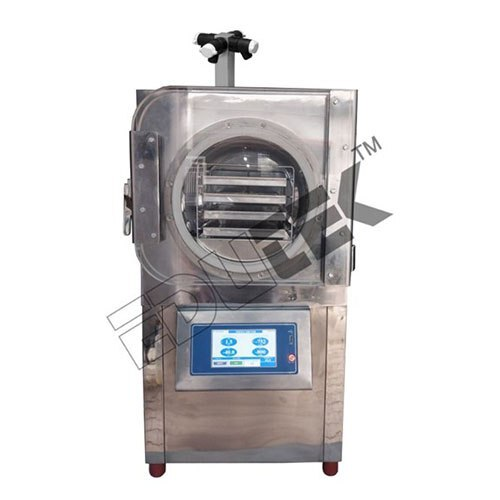

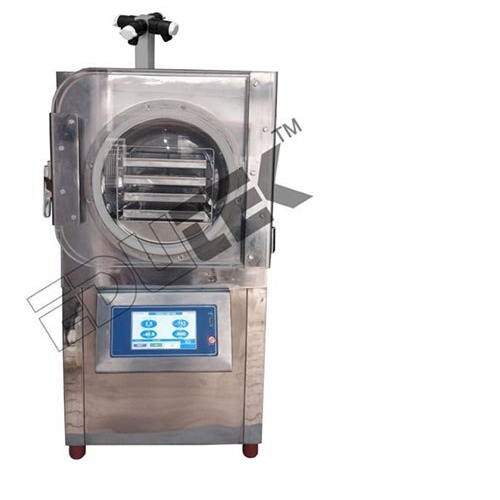

Horizontal Freeze Dryer

Price 400000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Horizontal Freeze Dryer Specification

Capacity
43 L Ltr

Warranty
1 year

Material
ss

Usage
Laboratory Instruments

Product Type
Horizontal Freeze Dryer

Application
Laboratory Instruments

Equipment Materials
ss

Type
Horizontal Freeze Dryer

Temperature Range
-40 Celsius (oC)

Display Type
Digital

Horizontal Freeze Dryer Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
2 Pieces Per Week

Delivery Time
2 Week

Sample Available
No

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About Horizontal Freeze Dryer

It is fully customized with the programming required for your application. This includes multiple manageable profiles each providing the ability to automatically power on and off the condensing unit and the oil free vacuum pump in conjunction with ascending controlled temperature and time settings.

Control the rate of freeze ultimate final freeze temperature and the duration of time your sample is held at the ultimate freeze temperature before the drying cycle begins.

Control of the shelf temperature during the dry cycle allowing the material to dry in phases at different temperatures.

Automatically control the rate of sublimation during the primary drying cycle with shelf heaters.

Through this process the unit has control of the attendant vacuum pressure. The freeze dryer records and logs the pressure and temperature during the entire freeze dry cycle for ensured system performance.

Connect the unit to a PC via Ethernet cable for data logging and exporting.

System includes a 7 CFM oil free scroll vacuum pump which is quiet fast and does not require regular user maintenance.

Features

User friendly interface provides program customization up to 10 thermal treatment and 12 drying steps
Constructed with a durable stainless steel chamber and collector
Large 4.3 inch full color touch screen display provides real time pressure and temperature data
Easily connect to a PC via ethernet cable for data logging and communication
Capable of freeze drying as much as 1 to 2 gallons of material
Medium freeze dryer has a 4 L sublimated ice holding capacity
Runs on 230 Vac 50 Hz power

Technical specification

Type Standard Chamber 4 port manifolds
Cold Trap Temp -40 C
Temp Uniformity 1
Vacuum Degree 0.1 Pa
Condensing Capacity 3 kg per hour
Drying Chamber Capacity 43 L
Material Loading Capacity 3000 ml

Robust Design and Performance

Engineered with high-grade stainless steel, this horizontal freeze dryer ensures longevity and superior resistance to corrosion. Its 43-liter capacity allows ample space for bulk sample processing while maintaining optimal freeze-drying conditions. The horizontal orientation simplifies loading and unloading, making it ideal for frequent laboratory operations.

Precision Temperature Control

Operating at temperatures as low as -40C, the freeze dryer preserves sample integrity and quality. The digital display provides accurate monitoring and control, allowing users to maintain precise conditions essential for reproducibility in laboratory experiments.

FAQs of Horizontal Freeze Dryer:

Q: How does the horizontal freeze dryer benefit laboratory applications?

A: The horizontal freeze dryer enables effective dehydration of samples at low temperatures, preserving their structure and minimizing nutrient loss. Its spacious 43-liter capacity and horizontal design facilitate efficient batch processing, making it highly advantageous for laboratories handling large or multiple samples.

Q: What is the process for operating this freeze dryer in the laboratory?

A: To use the freeze dryer, place your samples on the trays inside the stainless steel chamber, set the desired parameters using the digital display, and initiate the freeze-drying cycle. The system will lower the temperature to -40C, rapidly freezing the samples, and then apply a vacuum to sublimate the ice, resulting in thoroughly dried samples.

Q: When should I choose a freeze dryer with a 43-liter capacity?

A: A 43-liter freeze dryer is suitable when you require medium-scale processing or need to lyophilize a large number of samples simultaneously. This capacity is ideal for research, development, and quality control tasks in laboratories where efficiency and throughput are important.

Q: Where is this horizontal freeze dryer manufactured and supplied from?

A: This horizontal freeze dryer is manufactured and supplied by reputable exporters, manufacturers, and suppliers based in India, ensuring robust build quality and compliance with international laboratory standards.

Q: What materials are used in the construction of this equipment?

A: The freeze dryer is constructed primarily from stainless steel (ss), offering excellent durability, chemical resistance, and easy cleaning to meet rigorous laboratory hygiene requirements.

Q: How does the digital display enhance user experience?

A: The digital display offers clear, real-time information on temperature and operational settings, allowing users to precisely manage the freeze-drying process and ensure reproducible results with every batch.

Q: What warranty coverage is provided with this freeze dryer?

A: A one-year warranty is included, covering manufacturing defects and standard maintenance support to provide peace of mind and ensure uninterrupted operation in your laboratory.
