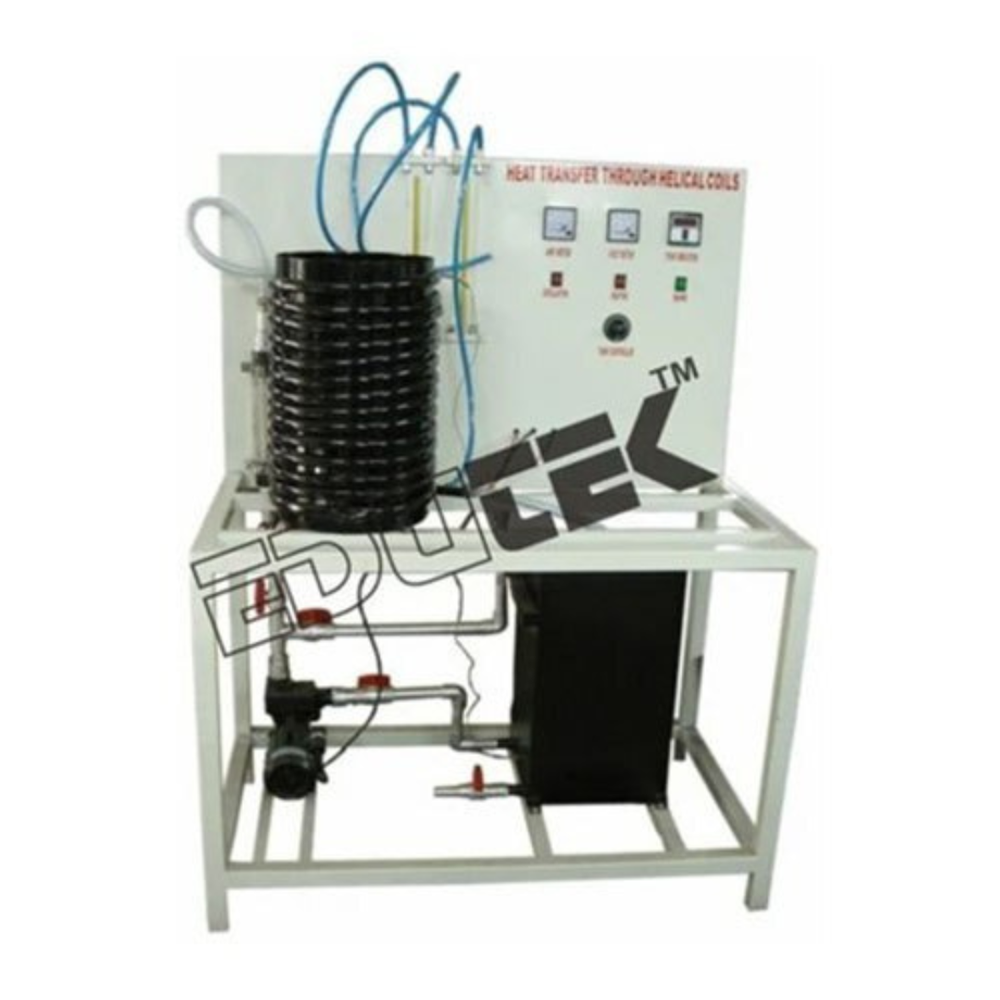

HELICAL COIL HEAT EXCHANGER APPARATUS

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HELICAL COIL HEAT EXCHANGER APPARATUS Specification

Voltage
230 V AC

Temperature Range
Ambient to 100C

Usage
Heat Transfer Laboratory Equipment

Capacity
1-2 Liters

Feature
Compact Design, Durable, Easy to Operate, Corrosion Resistant

Automation Grade
Semi-Automatic

Model No
HCHX-01

Accuracy
1C

Measurement Range
0-100C

Core Components
Helical Coil, Water Tank, Pump, Heater, Flow Control Valve, Thermocouples

Product Type
HELICAL COIL HEAT EXCHANGER APPARATUS

Frequency
50 Hz

Application
Heat Transfer Laboratory Equipment

Power Source
Electric

Equipment Materials
SS 304 Stainless Steel, Glass, Mild Steel Frame with Powder Coating

Type
Heat Exchanger Laboratory Apparatus

Display Type
Digital Analog Combination

Dimension (L*W*H)
Approx. 800 x 500 x 1000 mm

Weight
Approx. 35-40 kg

HELICAL COIL HEAT EXCHANGER APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About HELICAL COIL HEAT EXCHANGER APPARATUS

Specification:

HELICALCOIL HEAT EXCHANGER APPARATUS

Edutek delivering a wide gamut ofHelical Coil.

This coil is designed by our adroitprofessionals using high-grade raw materials and modish technology, who havein-depth knowledge about the industrial standards. Available with us innumerous specifications, to meet the varied demands of our respectable clients.

Features:

Rust proof.

Less maintenance.

Maximum strength.

Specifications:

Control panel comprising of Standardmake on off switch, Mains Indicator etc.

The whole set-up is well designed andarranged in a good quality painted structure.

Helical Coil Material Stainless SteelDia 12.

No. of Turns 15.

Coil Tube Dia OD 21mm, ID 17mm(Approx.).

Sump Tank Material StainlessSteel/PVC, Capacity 50 Ltrs.

Water Circulation FHP Pump,Crompton/Sharp make.

Manometer 2 Nos.

Flow measurement Rotameter.

Piping GI and PVC.

Efficient and Durable Laboratory Design

Constructed from SS 304 stainless steel, glass, and a powder-coated mild steel frame, the apparatus ensures durability and corrosion resistance for long-term use in educational labs. Its compact structure fits easily into standard laboratory spaces while maintaining robust operational stability.

Precise Measurement and Control Features

Equipped with 4-6 Pt-100 temperature sensors and a rotameter for accurate flow measurement, the device enables reliable data collection. Users can manually record data or opt for a digital interface, supporting a wide range of experimental investigations and educational demonstrations.

Safety and Ease of Operation

The apparatus integrates safety features such as over-temperature protection and fuses to safeguard users during experiments. Its semi-automatic functionality, combined with an easy-to-use digital and analog display, offers a secure and straightforward user experience.

FAQs of HELICAL COIL HEAT EXCHANGER APPARATUS:

Q: How does the Helical Coil Heat Exchanger Apparatus operate in a heat transfer laboratory setting?

A: This apparatus functions by allowing the exchange of heat between fluids through its helical coil system. Users circulate water using the centrifugal pump, and the 1 kW heater introduces or removes thermal energy. Temperature is monitored at several points using Pt-100 sensors, with flow rates indicated by the rotameter.

Q: What are the benefits of using this apparatus for laboratory experiments?

A: The apparatus offers accurate measurement capabilities, with temperature accuracy of 1C and reliable flow control. Its durable, corrosion-resistant construction ensures longevity, while advanced safety features provide secure operation, making it ideal for both training and demonstration purposes.

Q: When should the over-temperature protection feature be engaged?

A: The over-temperature protection automatically activates if the system temperature approaches unsafe levels (near 100C), preventing overheating and safeguarding both the apparatus and user. Regular operational use will engage this feature without manual intervention.

Q: Where can this apparatus be installed and used effectively?

A: Designed for educational heat transfer laboratories, the compact and sturdy apparatus is ideally suited for institutions, research centers, and industrial training facilities across India and globally, wherever reliable heat exchanger studies are essential.

Q: What process should be followed for safe operation?

A: Ensure the apparatus is set up on a stable surface and all connections are secure. Fill the water tank with the desired fluid, power on the heater and pump, and set desired flow using the valve. Monitor temperatures via the digital-analog display and adhere to safety warnings throughout the experiment.

Q: How is data recorded and monitored during experiments?

A: The device provides both manual data recording through analog displays and an optional digital interface for computerized data logging. This dual-type display assists users in closely monitoring temperature and flow parameters throughout experiments.
