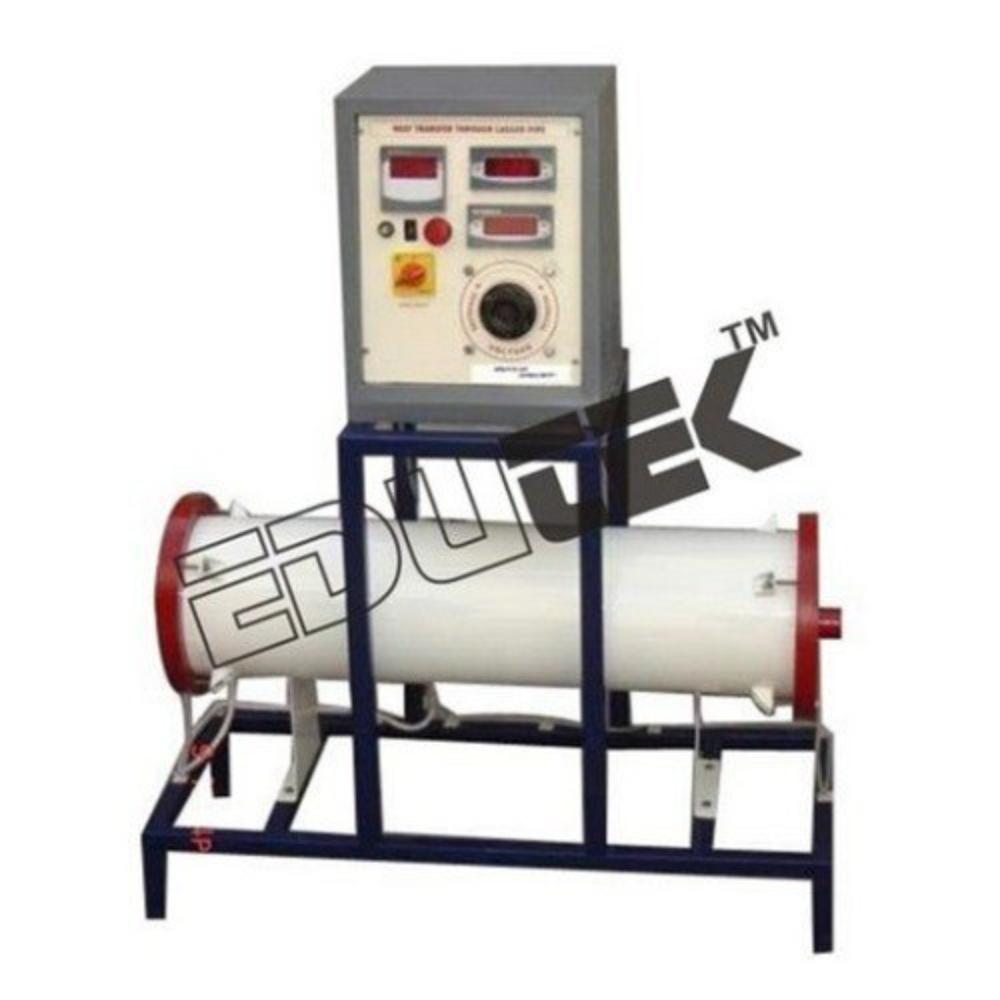

Send InquiryHEAT TRANSFER THROUGH LAGGED PIPE APPARATUS
Price 28500.0 INR/ Piece
MOQ : 1 Piece
HEAT TRANSFER THROUGH LAGGED PIPE APPARATUS Specification
- Product Type
- HEAT TRANSFER THROUGH LAGGED PIPE APPARATUS
- Usage
- Heat Transfer Laboratory Equipment
- Warranty
- 1 Year
- Feature
- Temperature Sensors are fitted tomeasure the temperature of pipe walls for radial outward heat flow measurement.Inside the inner pipe, a Nichrome wire heater is placed axially. Heat input tothe heater is given through a variac and measured by Digital Voltmeter andDigital Ammeter.
- Application
- Heat Transfer Laboratory Equipment
- Type
- HEAT TRANSFER THROUGH LAGGED PIPE APPARATUS
HEAT TRANSFER THROUGH LAGGED PIPE APPARATUS Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Packaging Details
- Carton Box, Export Quality also Available
- Main Export Market(s)
- Asia, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About HEAT TRANSFER THROUGH LAGGED PIPE APPARATUS
Specification:
HEAT TRANSFER THROUGH LAGGED PIPE APPARATUS
Edutek the setup is designed andfabricated to study lagging phenomenon in case of pipes.
It consists of three concentric pipesof small thickness as compared to diameter and are arranged concentrically, andclosed with the help of two discs.
Two different insulating materialsfill the annuli between the cylinders compactly.
Temperature Sensors are fitted tomeasure the temperature of pipe walls for radial outward heat flow measurement.Inside the inner pipe, a Nichrome wire heater is placed axially. Heat input tothe heater is given through a variac and measured by Digital Voltmeter andDigital Ammeter.
By varying the heat-input rates, widerange of experiments can be performed
Experiments
To estimate the actual rate of heattransfer through the composite cylinders from the measured interfacetemperature of the known value of thermal conductivity of the two insulatingmaterials.
To determine the effective thermalconductivity of the composite cylinders
To determine the theoreticaltemperature profile within the composite cylinders Utilities Required
Precision Measurement Instruments
This apparatus is equipped with high-quality digital instruments, including a voltmeter and ammeter, ensuring that electrical input data is measured with accuracy. Temperatures at various pipe wall locations are detected by embedded sensors, allowing for detailed analysis of temperature gradients and heat transfer phenomena.
Application in Heat Transfer Laboratories
Perfectly suited for academic, research, and industrial laboratories, this device is mainly used to teach and study concepts of radial heat flow through insulated pipes. It enables students and researchers to visualize heat transfer and insulation effects under controlled and repeatable conditions.
FAQ's of HEAT TRANSFER THROUGH LAGGED PIPE APPARATUS:
Q: How does the Heat Transfer Through Lagged Pipe Apparatus measure heat flow?
A: The apparatus determines heat flow using temperature sensors positioned on the pipe's walls and by monitoring the electric input to an internal Nichrome wire heater. The radial outward heat transfer is calculated based on these measurements.Q: What key components are included in the apparatus?
A: Core components include a lagged pipe, an axially placed Nichrome wire heater, digital voltmeter, digital ammeter for power monitoring, temperature sensors for recording pipe wall temperatures, and a variac to control the heat input.Q: When should this apparatus be used in an educational setting?
A: It should be utilized during laboratory sessions focused on the study of heat transfer, especially when demonstrating radial heat flow, insulation effects, and thermal conductivity concepts.Q: Where is the Heat Transfer Through Lagged Pipe Apparatus manufactured and supplied?
A: This apparatus is manufactured, exported, and supplied from India by established laboratory equipment providers.Q: What is the process for measuring radial heat transfer using this equipment?
A: First, power is supplied via a variac to the Nichrome heater inside the inner pipe. As heat flows radially outward through the lagged layers, temperature sensors record wall temperatures, and input power is tracked with digital instruments, allowing calculation of heat transfer rates.Q: How does using this apparatus benefit heat transfer studies?
A: It offers hands-on experimental learning, provides accurate data for understanding the effectiveness of insulation, and enables users to validate theoretical heat transfer models with real-world results.
