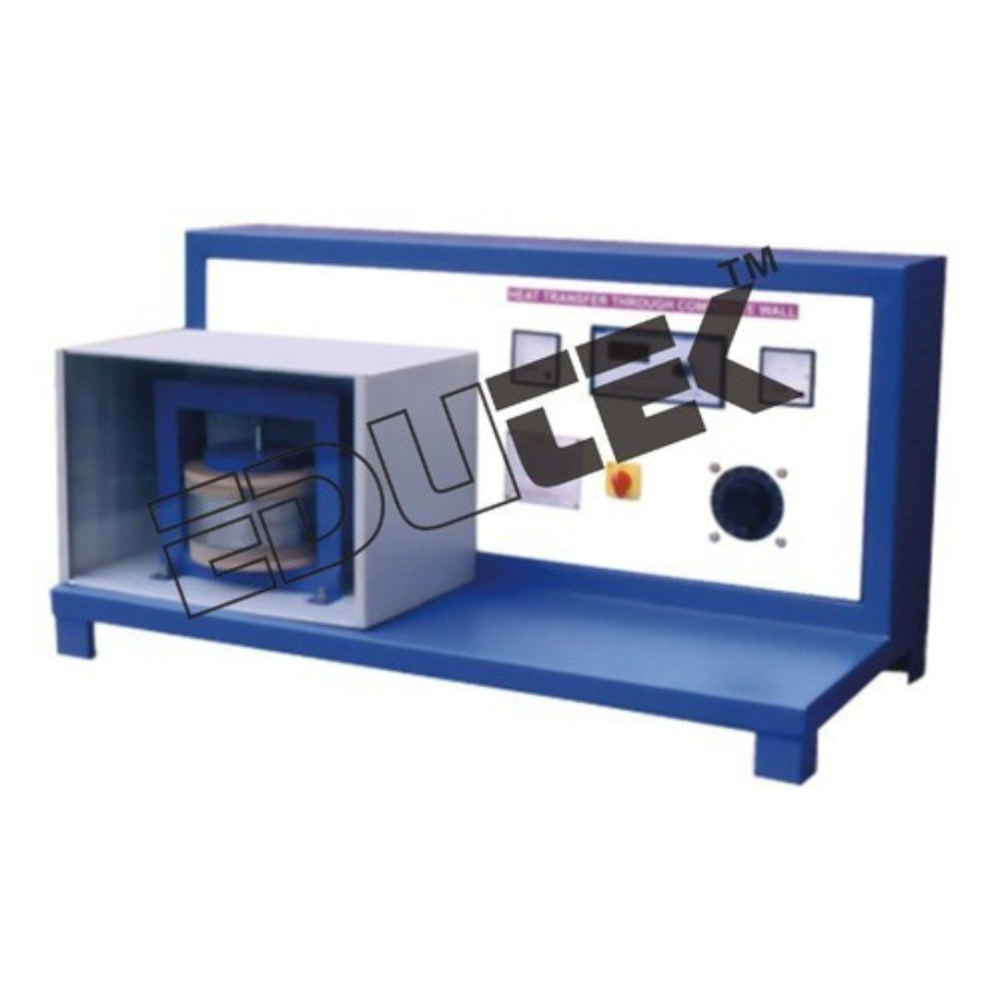

Heat Transfer Through Composite Walls

Price 1000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Heat Transfer Through Composite Walls Specification

Core Components
12 Channel Digital Temperature Indicator. Dimmer stat : 0 - 2 A. Main's On/Off Switch. Voltmeter : 0 - 250 V. Ammeter : 0 - 3 A.

Feature
These products are manufactured by our skilled engineers using high-grade materials and innovative technology. The offered walls are available in different designs and other related specifications, in order to meet the variegated expectations of our valuable customers. Our provided range is rigorously tested by the team of our professionals. The setup consists of a heater sandwiched between two sets of slabs. Three types of slabs are provided on either sides of heater, which forms a composite structure. A small hand press frame is provided to ensure the perfect contact between the slabs. A variac is provided for varying the input to the heater and Digital Voltmeter and Digital Ammeter display the heat input. Heat produced by heater flows axially on both the sides. Temperature Sensors are embedded between interfaces of slabs to determine the temperature gradient. The experiment can be conducted at various values of input and calculation can be made accordingly.

Warranty
1 Year

Power Source
230 v Ac Supply 50 Hz.

Type
Mechanical Engineering Lab

Usage
To determine total thermal resistance & thermal conductivity of composite wall. To plot temperature gradient along composite wall structure. The experiments can be conducted at various values of input & calculation can be made accordingly. To plot Heat flux Vs thermal conductivity in composite structure.

Heat Transfer Through Composite Walls Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cheque, Telegraphic Transfer (T/T)

Supply Ability
Unit

Delivery Time
2 Week

Sample Available
Yes

Packaging Details
Standard Packaging , Wooden Box , Bubble Wrap Sheets

Main Domestic Market
All India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Heat Transfer Through Composite Walls

Composite Walls Apparatus

These products are manufactured by our skilled engineers using high-grade materials and innovative technology. The offered walls are available in different designs and other related specifications, in order to meet the variegated expectations of our valuable customers. Our provided range is rigorously tested by the team of our professionals. The setup consists of a heater sandwiched between two sets of slabs. Three types of slabs are provided on either sides of heater, which forms a composite structure. A small hand press frame is provided to ensure the perfect contact between the slabs. A variac is provided for varying the input to the heater and Digital Voltmeter and Digital Ammeter display the heat input. Heat produced by heater flows axially on both the sides. Temperature Sensors are embedded between interfaces of slabs to determine the temperature gradient. The experiment can be conducted at various values of input and calculation can be made accordingly.

To determine total thermal resistance & thermal conductivity of composite wall.
To plot temperature gradient along composite wall structure.
The experiments can be conducted at various values of input & calculation can be made accordingly.
To plot Heat flux Vs thermal conductivity in composite structure.

EXPERIMENTAL SETUP :

Heater Assembly.
Test specimen MS 2 Nos. Bakelite 2 Nos. Wood 2 Nos.
Assembly Mounting frame.
Clamp Plates 2 Nos.
Set of thermo couples.

CONTROL PANEL:

12 Channel Digital Temperature Indicator.
Dimmer stat : 0 - 2 A.
Main's On/Off Switch.
Voltmeter : 0 - 250 V.
Ammeter : 0 - 3 A.

SPACE REQUIRED:

1.5 m.(L)x 1.0 m(W) table top.
Service Required.
230 v Ac Supply 50 Hz.

Precise Engineering & Versatile Design

Our composite wall products are crafted using high-grade materials, guided by experienced engineers, and supported with advanced technology. Multiple design options and specifications are available, meeting diverse laboratory requirements. Rigorous quality checks ensure each unit delivers reliable and repeatable experimental results, crucial for academic research and industrial demonstrations.

Comprehensive Experimental Capability

The setup facilitates multiple thermal experiments. The heaters input can be precisely varied, and temperature sensors embedded within the wall allow for detailed measurement of temperature gradients. Users can plot temperature distributions along the wall or analyze heat flux versus thermal conductivity, fostering a deeper understanding of thermal properties in layered materials.

FAQs of Heat Transfer Through Composite Walls:

Q: How do temperature sensors work in this composite wall setup?

A: The embedded temperature sensors are placed at the interfaces of the slabs and continuously monitor the temperature at multiple points. This allows users to determine the temperature gradient across the composite wall, which is crucial for evaluating thermal conductivity and resistance.

Q: What is the main process for conducting experiments using this equipment?

A: To begin, users set up the slabs in the provided hand press frame, ensuring perfect contact. The heaters input is varied using the dimmer stat, and heat flows axially on both sides. Temperature data is collected through the digital temperature indicator, enabling calculation of thermal properties and plotting of temperature profiles.

Q: When should this apparatus be used in a laboratory setting?

A: This equipment is ideal for experiments involving the determination of total thermal resistance, thermal conductivity, and heat flux in composite wall structures. It is most beneficial during laboratory sessions focused on heat transfer and thermal analysis within mechanical engineering curricula.

Q: Where are these composite wall setups typically utilized?

A: These setups are commonly used in mechanical engineering labs, research facilities, and universities where heat transfer properties of materials are studied. Exported, manufactured, and supplied across India, they serve as essential tools for both educational and training purposes.

Q: What benefits do users gain from employing this composite wall system?

A: Users benefit from precise measurement of thermal properties, the ability to vary experimental inputs, and robust data collection. The system enhances instructional demonstrations and supports advanced research into the behavior of heat transfer in layered materials.

Q: How does the warranty support users?

A: With a one-year warranty, the product offers reliability and peace of mind. It covers manufacturing defects, ensuring users receive prompt support and functional equipment for uninterrupted experimentation and learning.
