HEAT TRANSFER FROM A PIN-FIN APPARATUS

Name: HEAT TRANSFER FROM A PIN-FIN APPARATUS
Brand: EDUTEK INSTRUMENTATION
Price: 23900.0 INR
Availability: InStock

Price 23900.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HEAT TRANSFER FROM A PIN-FIN APPARATUS Specification

Usage
Heat Transfer Laboratory Equipment

Accuracy
100 %

Product Type
HEAT TRANSFER FROM A PIN-FIN APPARATUS

Application
Heat Transfer Laboratory Equipment

Warranty
1 Year

Type
HEAT TRANSFER FROM A PIN-FIN APPARATUS

HEAT TRANSFER FROM A PIN-FIN APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Middle East, Asia, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About HEAT TRANSFER FROM A PIN-FIN APPARATUS

Specification:

HEAT TRANSFER FROM A PIN-FIN APPARATUS

Range of Experiments to be Carried Out

To study the temperature distributionalong the length of a pin fin in natural & forced convection. To calculateGr, Pr & Nu number in natural conviction. Calculate Re, Pr & Nu numberin forced conviction. Calculate the value of m & obtain the temperature atvarious locations along the length of the fin in natural & forcedconviction.

Calculate the values of heat transferrate from the fin & the fin effectiveness in natural & forcedconviction. The experiments can be conducted at various values of input &calculation can be made accordingly.

Experimental Setup

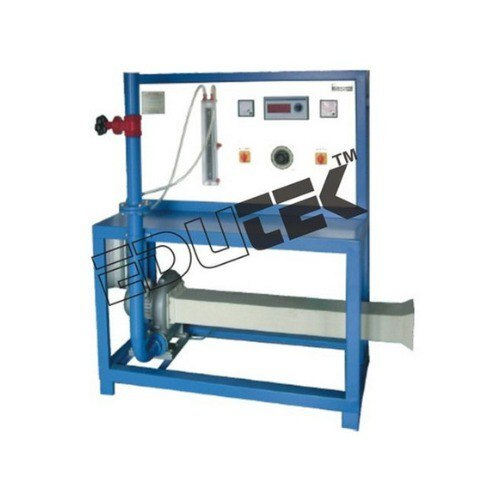

Band Heater Assembly.

Pin type Fin.

Blower Unit with orifice &manometer arrangement for measurement.

Duct in which fin is fitted.5. Set ofthermocouples.

Control Panel

12 Channel Digital TemperatureIndicator

Dimmer stat: 0 - 2 A.

Mains On-Off Switch.

Voltmeter: 0 - 250 V.

Ammeter: 0 - 3 A.

Blower On-Off Switch.

Service Required : 230 v Ac Supply 50Hz

Enhance Your Heat Transfer Studies

This HEAT TRANSFER FROM A PIN-FIN APPARATUS provides a hands-on approach to learning complex heat transfer concepts. Perfect for engineering laboratories, it lets users examine heat dissipation and efficiency in real-world scenarios, facilitating a deeper understanding of practical thermal applications and theory.

Built for Reliability and Precision

Manufactured in India with meticulous attention to quality, the apparatus guarantees 100% measurement accuracy. Supported by a one-year warranty, the equipment is robust and designed for long-term laboratory use. Exports and supply services ensure availability for academic and research institutions worldwide.

FAQ's of HEAT TRANSFER FROM A PIN-FIN APPARATUS:

Q: How does the pin-fin apparatus facilitate the study of heat transfer?

A: The pin-fin apparatus demonstrates the principles of heat transfer through extended surfaces by allowing users to measure temperature gradients and heat loss along a metal fin. This hands-on experiment helps students and researchers analyze convective and conductive heat transfer, providing vital insights into fin efficiency.

Q: What is the main usage of the HEAT TRANSFER FROM A PIN-FIN APPARATUS in laboratories?

A: This apparatus is primarily used in heat transfer laboratories to teach and study thermal phenomena related to fins. It enables measurement of heat dissipation, analysis of temperature profiles, and calculation of efficiency, supporting both instructional and research objectives.

Q: When should you use a pin-fin apparatus in a heat transfer course?

A: It is ideal to use the pin-fin apparatus when covering topics like heat exchangers, cooling systems, and extended surface enhancement techniques. Incorporating this setup during practical lab sessions deepens theoretical understanding and demonstrates real-world applications.

Q: Where can the HEAT TRANSFER FROM A PIN-FIN APPARATUS be installed or utilized?

A: This versatile device is suitable for installation in university laboratories, research centers, and technical institutes focused on thermodynamics, heat transfer, and mechanical engineering education. Its adaptability allows for easy integration into various experimental setups.

Q: What is the process for conducting experiments with this pin-fin apparatus?

A: The typical process involves heating one end of the pin (fin), observing heat distribution along its length, and recording temperature at several points using sensors. The results are then analyzed to understand heat transfer coefficients and fin performance.

Q: What are the key benefits of using this apparatus for heat transfer studies?

A: The apparatus provides precise, repeatable results, enabling accurate analysis of heat transfer rates and fin efficiency. Its straightforward, reliable design enhances the learning experience, helping users gain practical knowledge essential for engineering applications.
