About H PARAMETERS OF PNP TRANSISTOR IN COMMON EMITTER MODE WITH BAKELITE PANEL & ROUND METERS

Specification:

H PARAMETERS OF PNP TRANSISTOR IN COMMON EMITTER MODE WITH BAKELITE PANEL & ROUND METERS

Objective: Calculation of H Parameters, such as current gain, input impedance, Output impedance and reverse feedback ratio.

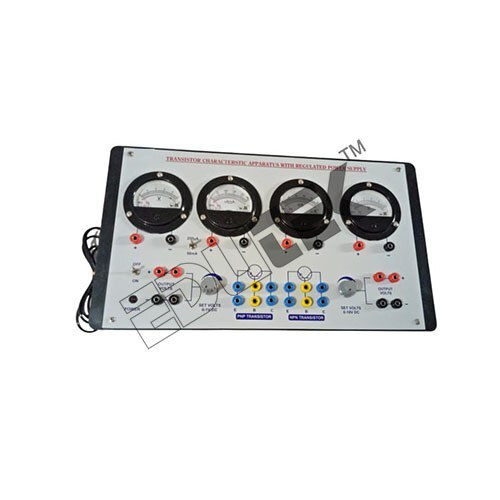

Features: Instrument comprises of Two DC Regulated Power Supplies 0-10VDC/150mA,0-1VDC/150mA, Four round meters, One PNP Transistor mounted behind the panel, connections of Supplies, Meters & Transistor brought out at 4mm Sockets.




Precision Measurement for Electronics Engineering

This instrument enables accurate determination of a PNP transistor's h-parameters in common emitter mode, vital for circuit analysis and transistor characterization. The combination of Bakelite panel and round meters ensures both reliability and clarity during experimental setups, essential for comprehensive learning or detailed research.


Robust Construction and User-friendly Design

The use of a Bakelite panel enhances durability, while round meters provide easy-to-read analog outputs. Designed for seamless integration into engineering laboratories, the unit's configuration minimizes installation efforts and optimizes workflow during experimentation and teaching sessions.

FAQ's of H PARAMETERS OF PNP TRANSISTOR IN COMMON EMITTER MODE WITH BAKELITE PANEL & ROUND METERS:


Q: How does this instrument help in analyzing PNP transistors in common emitter mode?

A: This device measures the h-parameters of PNP transistors in common emitter mode, providing critical data for electronic circuit analysis and transistor modeling. The accurate readings assist students and professionals in understanding, designing, and troubleshooting amplifier circuits more effectively.

Q: What are the primary benefits of the Bakelite panel and round meters?

A: The Bakelite panel offers excellent electrical insulation and mechanical strength, enhancing safety and durability. Round meters facilitate quick and clear reading of values, making the instrument user-friendly, especially in an educational setting.

Q: Where is this instrument typically used?

A: It is commonly utilized in engineering colleges, technical institutes, and R&D laboratories where practical understanding and analysis of transistor parameters are required as part of the electronics curriculum or research projects.

Q: What is the process to operate the unit for parameter measurement?

A: To use the instrument, connect the PNP transistor to the provided terminals, ensure the power supply is set to electrical (50 Hertz), and follow the included instructions to perform the parameter measurements. The round meters will display the relevant values for data recording and analysis.

Q: When should this instrument be used in the context of engineering electronics?

A: This instrument should be used during laboratory sessions or research work that involves studying the behavior and characteristics of PNP transistors, specifically in common emitter configurations, for amplifier design and analysis.

Q: What warranty and support are available with the instrument?

A: The unit comes with a one-year warranty from the date of purchase, covering manufacturing defects. This ensures assured performance and reliable support, making it suitable for institutional and professional users.
