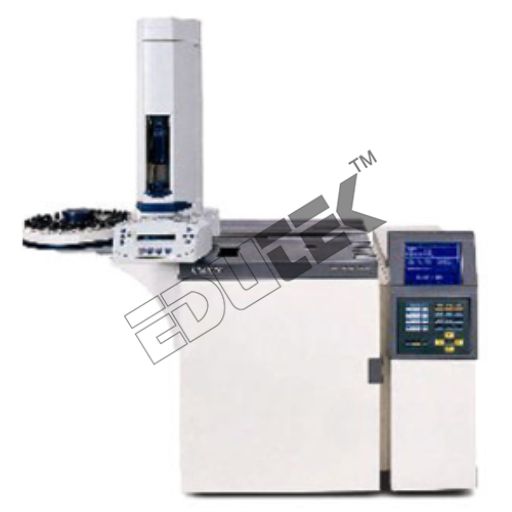

Gas Chromatograph

Gas Chromatograph

Product Details:

X

Product Description

GAS CHROMATOGRAPH
  • Fitted with Two FID Detectors , & two Injectors (one for packed 4mm Dia. Glass column and other Split/ split less injector for Capillary 0.54 mm Dia column ) Column Oven
  • Temperature range Ambient + 10C) ~ 400C (using liquid CO2 gas*: -50C ~400C)
  • Dimensions 250 (W) 360 (H) 175 (D) mm
  • Oven capacity 15.8L
  • Temperature accuracy Set value (K) 1% (calibration at 0.01C increments)
  • Temperature deviation 2C max. (on 200mm dia. circumference 30mm from rear)
  • Temperature variation co-efficient 0.01C/C
  • Temperature program steps Up to 20 (cooling program possible)
  • Programmed rate setting range 250C ~ 250C/min
  • Total time for all steps 9999.99 minutes max.
  • Linear heating range 30C/min up to 150C
  • 20C/min up to 250C
  • 10C/min up to 380C
  • 7C/min up to 400C (at 25C ambient temperature)
  • Cooling rate 300C ~ 50C in 6 min max. (at 25C ambient temperature)
  • Columns accepted Capillary columns for pesticides analysis: 2 Packed columns(OV101, SE-30 ) for GC compatible fitting: 4 (Glass columns: 2)
  • Injection Unit ( Injector for Sample )
  • Temperature range Up to 400C
  • Heating settings 1C steps
  • No. of units installed simultaneously Up to 3 units
  • Sample injection unit types Dual , one packed, one split/split less, Carrier Gas Flow Controller For Packed / Dual
  • Flow rate setting range 0 ~ 100mL/min
  • Programmable steps 7
  • Programmed rate setting range 400 ~ 400mL/min
  • Correction function Maintains column _low rate during column oven heating
  • For Capillary Split/Split less, Direct (Split/split less injection mode)
  • Pressure setting range 0 ~ 970kPa
  • Programmable steps 7 (pressure-decreasing program possible)
  • Programmed rate setting range 400 ~ 400kPa/min
  • Split ratio setting range 0 ~ 9999.9
  • Total flow rate setting range 0 ~ 1200mL/min
  • Correction function Maintains column average linear velocity during column oven heating(for capillary only)
  • Pressure mode direct injection Pressure setting range 0 ~ 970kPa/min Programmable steps 7-9
  • Programmed rate setting range -400 ~ 400kPa/min Correction function Maintains column average linear velocity during column oven heating(for capillary only).
GC SYRINGES
  • Graduated 5 Micro liter Hamilton /SGS Syringes Graduated 10 Micro liter Hamilton /SGS Syringes Accessories &Spares.
System operating Software:
  • Software compatible for operating all components of GC system, port to data management and printer for printing analytical data with chromatogram, including computer to system and software compatible ,with high speed Ram , & Rom . Storage capacity of data up to 400 GB, Along with printer. Oil less dry Air Compressor with storage tank &canopy for air supply to GC for dual FID , With auto start when tank is full. Filtration assembly for air
  • Operating at 220 VAC 50 Hz.
  • All system Operate able: At 220-230 V, Ac; 50 Hz. with necessary cables.
  • UPS with Stabilizer One No.1
