Friability Test Apparatus

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Friability Test Apparatus Specification

Use
Tablet Abrasion and Friability Assessment

Properties
High Durability, Precise Measurement, Easy Operation

Application
Pharmaceutical Tablet Friability Testing

Display Type
Digital

Treatment Type
Tablet Mechanical Strength Test

Temperature Range
Ambient

Frequency
50 Hz

Product Type
Friability Test Apparatus

Accuracy
0.1 RPM

Storage Capacity
Test up to 2 drums simultaneously

Height
410 mm

Suitable For
Laboratory, Research, Quality Control

Color Code
White & Transparent

Power
25 Watts

Function
Tests tablet resistance to abrasion

Dimension (L*W*H)
370 x 320 x 410 mm

Material
Stainless Steel and Acrylic

Weight
Approx. 15 Kg

Automation Grade
Automatic

Shape
Rectangular

Phase
Single Phase

Voltage
220V AC

Display
Digital LED

Power Source
Electric

Safety Features
Auto Stop, Overload Protection

Timer Range
Up to 999 minutes

Packaging Type
Corrugated Box

Operational Mode
Continuous/Programmable

Sample Capacity
Up to 100 tablets per drum

Drive System
Direct Drive Motor

No. of Drums
2 drums

Drum Material
Acrylic

Calibration
Manual & Auto Calibration

Compatible Standards
IP/USP/EP/BP

Noise Level
Low Noise Operation

Test Speed
25 RPM (Adjustable)

Friability Test Apparatus Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Friability Test Apparatus

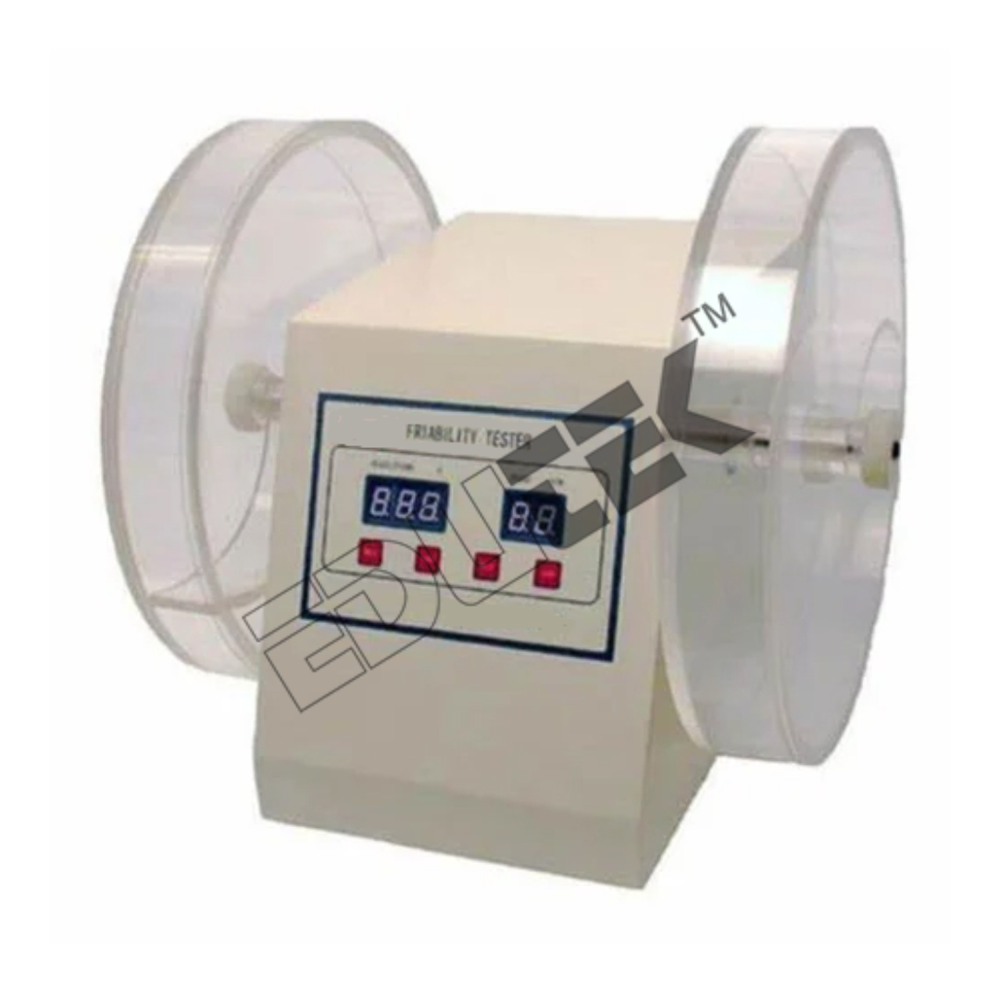

Friability Test Apparatus

Specifications of Friability Test Apparatus

Used to determine the durability and abrasivness of tablets. A transparent perpex drum (made of imported perspex sheet 6.4mm thick ) 300mm dia x 35mm deep and white cover disc and nut, also a shaped radial fixed blade which carries the tablets along with it up to the central height and lets them off while the drum is rotating. Thus the tablets rub against each other without any hard impact. The drum rotates at a fixed speed of 30 RPM by a geared motor and the rotation period is controlled by a timer (imported time switch duration of 1 to 15 minutes) per determined end preset. The motor unit is housed in a shaped steel cabinet with shaft extended on one side upon which the drum rotates. Switches with neon indicators and time switch are fitted on a panel and provided work on 220 Volts 50 C/s AC. Digital models also available.

Efficient Dual Drum Design

Featuring two transparent acrylic drums, this apparatus enables simultaneous friability testing of up to 200 tablets, optimizing operational efficiency. Its robust stainless steel body and direct drive motor ensure extended durability and consistent performance, even during repetitive testing cycles. The adjustable 25 RPM speed and programmable timer cater to diverse sample requirements, making it a versatile choice for laboratories.

Unmatched Precision and Safety

The apparatus is equipped with manual and automatic calibration modes, guaranteeing reliable measurements with an accuracy of 0.1 RPM. Critical safety mechanisms such as auto-stop and overload protection minimize operational risks and protect both users and samples. The low-noise drive system also ensures a quiet laboratory environment while testing.

Comprehensive Compliance and Ease of Use

Adhering to major pharmacopeial standards (IP/USP/EP/BP), the friability tester is ideal for quality control and research labs. The digital LED display offers clear, real-time data tracking, while user-friendly controls and continuous or programmable operation modes simplify test setup. Supplied in sturdy corrugated packaging, its easy to install and maintain.

FAQs of Friability Test Apparatus :

Q: How does the Friability Test Apparatus assess tablet abrasion and resistance?

A: The apparatus subjects tablets within acrylic drums to controlled rotation at adjustable speeds (up to 25 RPM), tumbling them repeatedly to simulate handling and shipment stresses. The degree of tablet weight loss after testing reflects their friability and mechanical strength, assisting in quality control and formulation optimization.

Q: What are the key benefits of using a two-drum system in this apparatus?

A: With two drums, the device allows simultaneous testing of different tablet samples or batch replicates, saving valuable time and improving throughput. Each drum can hold up to 100 tablets, ensuring comprehensive assessments and efficient laboratory workflows.

Q: When should laboratories calibrate the Friability Test Apparatus?

A: Calibration should be performed regularly, following the manufacturers guidelines or prior to critical testing batches. The unit offers both manual and auto calibration features to maintain accuracy, thereby ensuring test results remain within acceptable tolerances.

Q: Where is this Friability Test Apparatus most suitable for deployment?

A: Designed for laboratories, research institutes, and pharmaceutical quality control departments, this apparatus is ideal wherever precise tablet friability and abrasion testing are required, whether in manufacturing facilities or academic and industrial research settings.

Q: What is the typical process for conducting a friability test with this device?

A: Place the required number of tablets (up to 100 per drum) into the acrylic drums, set the rotation speed and test duration on the digital LED display, and start the test. After completion, weigh the tablets to determine weight loss, which indicates friability.

Q: How do safety features like auto-stop and overload protection benefit users?

A: Auto-stop halts the test upon completion or if a fault occurs, preventing equipment or sample damage. Overload protection safeguards the apparatus from excessive loads, enhancing safety for operators and minimizing the risk of mechanical failure.

Q: What standards does this friability tester comply with, and why is compliance important?

A: The apparatus complies with IP, USP, EP, and BP pharmacopeial standards, ensuring that test results are globally recognized and accepted in regulatory submissions and quality assurance protocols.
