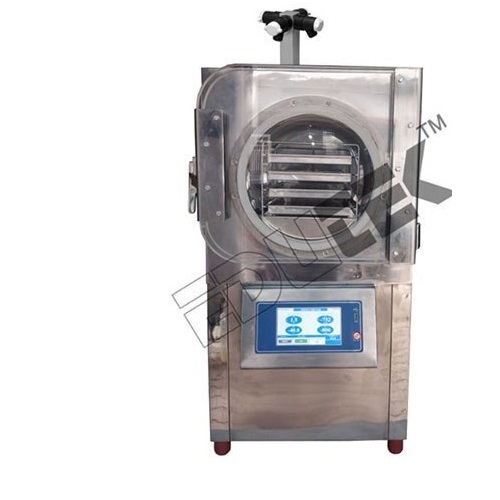

Freeze Dryer 43 Liters

About Freeze Dryer 43 Liters

It is fully customized with the programming required for your application.This includes multiple manageable profiles, each providing the ability toautomatically power on and off the condensing unit and the oil-free vacuum pumpin conjunction with ascending, controlled temperature and time settings.

Control the rate of freeze, ultimate final freeze temperature, and theduration of time your sample is held at the ultimate freeze temperature beforethe drying cycle begins.

Control of the shelf temperature during the dry cycle, allowing the materialto dry in phases, at different temperatures.

Automatically control the rate of sublimation during the primary dryingcycle with shelf heaters.

Through this process, the unit has control of the attendant vacuum pressure.The freeze dryer records and logs the pressure and temperature during theentire freeze-dry cycle for ensured system performance.

Connect the unit to a PC via Ethernet cable for data logging and exporting.

System includes a 7 CFM oil-free scroll vacuum pump which is quiet, fast,and does not require regular user maintenance.

Features:

User-friendly interface provides program customization up to 10 thermaltreatment and 12 drying steps.

Constructed with a durable stainless-steel chamber and collector

Large 4.3" full-color, touch-screen display provides real-time pressureand temperature data

Easily connect to a PC via ethernet cable for data logging and communication

Capable of freeze drying as much as a 1-2 gallons of material

Medium freeze dryer has a 4 L sublimated ice holding capacity

Runs on 230Vac VAC 50 Hz VAC power

Technical specification:

Type: Standard Chamber, 4 port manifolds

Cold Trap Temp.: -40C

Temp. Uniformity: ±1

Vacuum Degree: Ë0.1Pa

Condensing Capacity: 3kg/h

Drying Chamber Capacity: 43L

Material Loading Capacity: 3000ml
