Price 60000.0 INR/ Piece

MOQ : 1 Piece

FRANCIS TURBINE TEST RIG Specification

  • Application
  • Fluid Mechanics Lab Equipment
  • Product Type
  • FRANCIS TURBINE TEST RIG
  • Usage
  • Fluid Mechanics Lab Equipment


FRANCIS TURBINE TEST RIG Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Western Union
  • Packaging Details
  • Carton Box, Export Quality also Available
  • Main Export Market(s)
  • Asia, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, 14001, CE


About FRANCIS TURBINE TEST RIG

Specification:

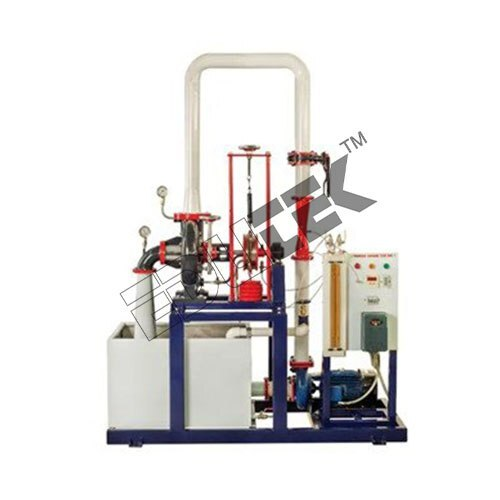

FRANCISTURBINE TEST RIG

Francis Turbine is a reactionturbine, which was developed by an English born American Engineer Sir J. B.Francis.

The water enters the turbine throughthe outer periphery of the runner in the radial direction and leaves the runnerin axial direction and hence it is called a mixed flow turbine.

As the water flows to the runner, apart of pressure energy goes on changing into kinetic energy.

Thus the water through the runner isunder pressure.

The runner is completely enclosed in anair tight casing and the casing & runner is always full of water.

The present set-up consists of arunner.

The water is fed to the turbine bymeans of Centrifugal Pump, radially to the runner. The runner is directlymounted on one end of a central SS shaft and other end is connected to aloading dynamometer arrangement.

The circular window of the turbinecasing is provided with a transparent acrylic sheet for observation of flow onto the runner. This runner assembly is supported by thick cast iron pedestal.

Load is applied to the turbine withthe help of loading dynamometer arrangement so that the efficiency of theturbine can be calculated.

A draught tube is fitted on theoutlet of the turbine.

The set-up is complete with guidemechanism.

Pressure and Vacuum gauges are fittedat the inlet and outlet of the turbine to measure the total supply head on theturbine. A venturi meter with differential pressure manometer is provided tomeasure the discharge of water through the nozzle of turbine.

Product Specification

Speed: 1500 RPM (Approx.)

Output Power: 3 kW.

Discharge: 2000 LPM (Approx.)

Supply Head: 20 m (Approx.)

Runner: Curved Vanes Type.

Dynamometer: Rope Brake Drum type, Drum Dia 300 mm.
