Send InquiryForced Air Gas Burner Training Panel
Price 50.0 INR/ Piece
MOQ : 1 Piece
Forced Air Gas Burner Training Panel Specification
- Feature
- Highly Efficient
- Weight
- 115 Kilograms (kg)
- Dimension (L*W*H)
- 1650x700x1850 Millimeter (mm)
- Accuracy
- 100 %
- Type
- FORCED AIR GAS BURNER TRAINING PANEL
- Usage
- Laboratory
About Forced Air Gas Burner Training Panel

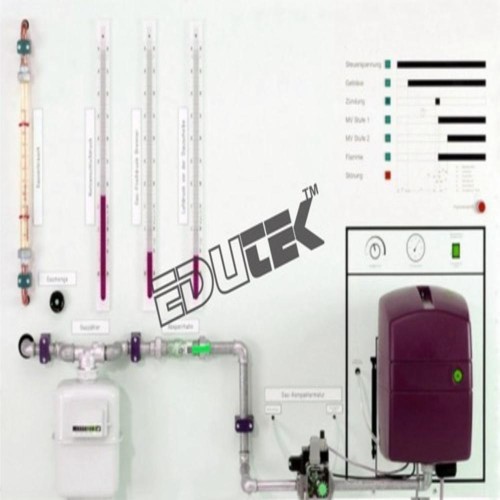

FORCED AIR GAS BURNER TRAINING PANEL
The trainer contains a commercially available forced air gas burner. The elements for a gas controlled system are combined into one compact fitting.
The burner function is simulated using air making it possible to use the unit in training rooms without hazard. The compressed air is supplied by a small integrated compressor.
Learning Objectives / Experiments
- Familiarisation with components for heating systems
- Starting a gas burner
- Nominal load adjustment on a gas burner
- Fault-finding and fixing
- Calculation of the gas flow rate / operating volume
Specification
- Simulation of the operation of a gas burner
- Hazard-free operation of the burner with air
- Diaphragm pump for pressure generation, pumping medium: air
- Display of the most important operating pressures on single tube manometers
- Indication of burner operation using a flickering light
- Monitoring of burner operation using flame safeguard
Technical Data
Gas burner
- Rating class: 13...28kW
Gas pressure controller
- Admission pressure: 0,4bar
- Outlet pressure: 0,04bar
Diaphragm pump
- Power consumption: 70W
- Max. flow rate: 70L/min at 230mbar
Measuring ranges
- Flow rate air: 0,5...5,5m³/h
- Pressure: 3x 0...50mbar
Dimensions and Weight
- LxWxH: 1650x700x1850mm
- Weight: approx. 115k
Precision Engineering for Educational Excellence
This training panel delivers 100% accuracy, ensuring students receive precise and repeatable results during experiments. The panels meticulously engineered components allow for clear demonstration of forced air gas burner operations, helping users develop a thorough understanding of combustion processes in a safe and efficient manner.
Rugged Construction and Practical Design
With a substantial weight of 115 kilograms and a durable frame measuring 1650x700x1850 mm, the panel is built for frequent laboratory use. Its design supports straightforward handling and setup, while robust materials guarantee long-term durability even in high-traffic educational environments.
FAQs of Forced Air Gas Burner Training Panel:
Q: How is the Forced Air Gas Burner Training Panel typically used in laboratories?
A: This panel is primarily utilized for educational demonstrations and hands-on training, enabling users to study the function and operating parameters of forced air gas burners. It is suitable for showcasing combustion principles, troubleshooting, and efficiency analysis.Q: What are the main benefits of using this highly efficient training panel?
A: The major advantages include exceptional accuracy of 100%, robust construction for longevity, and clear demonstration capabilities. It enhances students understanding of burner technologies while maximizing laboratory efficiency and safety.Q: When is the best time to incorporate this panel into technical education curriculums?
A: The panel can be introduced at intermediate or advanced stages of technical courses where combustion, thermal engineering, or practical burner operations are being taught, ensuring learners can directly apply theoretical knowledge.Q: Where can the Forced Air Gas Burner Training Panel be installed and operated?
A: It is designed for use in laboratory settings, particularly in technical schools, colleges, and industrial training centers. The panels dimensions make it suitable for both spacious and compact lab environments.Q: What is the process for training with this panel?
A: The typical process involves setting up the burner components, adjusting airflow and fuel supply, and conducting step-wise demonstrations. Instructors can illustrate burner efficiency, flame characteristics, and safety protocols, while students engage in hands-on learning.Q: What are the usage precautions to ensure safe operation in the lab?
A: Users should adhere to all safety guidelines, including proper ventilation, using protective gear, and following the manufacturers instructions. Regular maintenance and supervised operation are essential for user and equipment safety.
