Flow In Pipe Networks Apparatus

Name: Flow In Pipe Networks Apparatus
Brand: EDUTEK INSTRUMENTATION
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Flow In Pipe Networks Apparatus Specification

Measurement Range
0-250 mm H2O (Manometers)

Core Components
Pipe Network, Control Valves, Manometers, Water Supply System, Flowmeter

Temperature Range
Ambient, up to 45 C Celsius (oC)

Model No

Accuracy
1% of Full Scale (Manometer Readings) %

Power Source
Electric (for Pump Operation)

Feature
Demonstrates Parallel/Series Pipe Flows, Pressure Loss, Network Analysis

Voltage
220-240 V AC Volt (v)

Frequency
50 Hz Hertz (HZ)

Automation Grade
Manual Control

Capacity
6 liters/min (Typical Flow Capacity) Pcs/hr

Equipment Materials
Anodized Aluminum, Stainless Steel, Acrylic, Brass

Type
Educational Fluid Mechanics Apparatus

Usage
Fluid Mechanics Laboratory, Flow Network Analysis, Hydraulic Education

Display Type
Analog (Manometers, Scale Readings)

Dimension (L*W*H)
1200 x 750 x 600 mm Millimeter (mm)

Weight
Approx. 20-25 kg Kilograms (kg)

Maintenance
Low, Easy-To-Clean Components

Scale Graduation
Clearly Marked with Graduations for Accurate Readings

Water Reservoir Capacity
18 Liters

Included Accessories
Flexible Tubing, Instruction Manual, Set of Measuring Cylinders

Safety Features
Non-Slip Feet, Electrical Safety Conformance, Overflow Protection

Installation
Bench-Top, Portable

Pump Type
Centrifugal, Self-Priming

Number of Manometer Tubes
8-10 tubes (for multi-point pressure measurement)

Pipe Arrangement
Interconnected Network with Interchangeable Paths (Parallel and Series)

Noise Level
<65 dB (Pump Operation)

Surface Finish
Powder Coated Frame, Leak-proof Joints

Connection Type
Quick-Release Couplings and Isolation Valves

Educational Application
Hydraulic Resistance, Flow Distribution, Node/Loop Method Demonstrations

Maximum Flow Rate
10 L/min (System dependent)

Flow In Pipe Networks Apparatus Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cheque, Cash Advance (CA), Cash in Advance (CID), Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Flow In Pipe Networks Apparatus

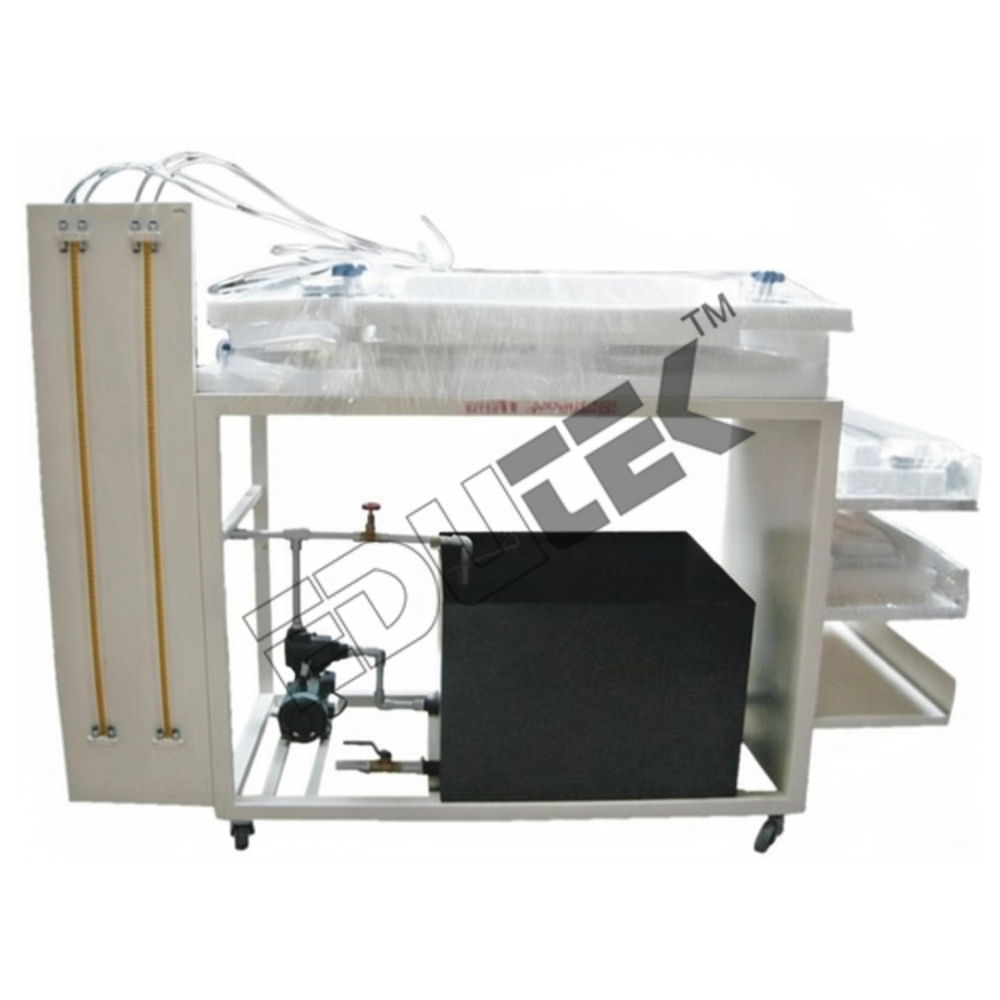

FLOW IN PIPE NETWORKS APPARATUS

Edutek are manufacturer and exporter of flow In Pipe Networks Apparatus for Mechanical Engineering Fluid Lab.

This equipment is designed to measure the flows and pressure drops in a wide range of pipe network configuration e.g. individual pipes, series pipes,

A pipe network specifically designed to allow the setting up of a wide range of pipe arrays and the measurement of the flows and pressures using water as the fluid.
A self-contained water supply and volumetric measurement module provides the base for pipe assemblies.

Test Pipes

1 off 22.5mm ID;
2off 17.5mm ID;
2 off 13.0mm ID;
common length 0.7m. Circulating pump: 0.55kW (0.75 HP) centrifugal.

Comprehensive Pipe Network Demonstrations

Explore the dynamics of hydraulic resistance, pressure loss, and flow distribution with the interconnected and interchangeable pipe network. The apparatus supports both series and parallel path arrangements, allowing students to experiment and analyze various network configurations essential for understanding real-world fluid systems.

Precision Measurement and Safe Operation

Equipped with 810 clearly graduated manometer tubes, the unit ensures accurate pressure readings (1% full scale) at multiple points. Safety enhancements, including non-slip feet, overflow protection, and electrical conformance, provide a reliable and safe learning environment for practical laboratory sessions.

Versatile, User-Friendly Design

Designed for hassle-free operation, the apparatus features quick-release couplings, isolation valves, and easy-to-clean, corrosion-resistant materials. It is portable, bench-top friendly, and comes with essential accessories such as flexible tubing, measuring cylinders, and detailed manuals, making it convenient for instruction and maintenance.

FAQs of Flow In Pipe Networks Apparatus:

Q: How are flow and pressure measurements conducted using this apparatus?

A: The apparatus uses 810 analog manometer tubes with clearly marked graduations to enable multi-point pressure measurement throughout the network. Flow rates are monitored with the supplied flowmeter and measuring cylinders, ensuring accurate data collection for hydraulic experiments.

Q: What educational principles can be demonstrated with the Flow In Pipe Networks Apparatus?

A: This equipment is ideal for illustrating hydraulic resistance, flow distribution, series and parallel network analysis, and the application of the node/loop methodall foundational concepts in fluid mechanics and engineering courses.

Q: When is the apparatus typically used during fluid mechanics education?

A: It is primarily employed during hands-on laboratory sessions for demonstrating and practicing principles related to flow in networks, pressure drop analysis, and fluid distribution. Its interactive nature helps reinforce theoretical concepts in practical settings.

Q: Where should the Flow In Pipe Networks Apparatus be installed for optimal use?

A: With its bench-top, portable design, the apparatus is best deployed in laboratory environments where space and ease of access are important. Non-slip feet guarantee stability during operation on standard lab surfaces.

Q: What is the process for configuring different pipe network setups?

A: The interconnected pipe network supports quick configuration changes using interchangeable paths. By adjusting the isolation valves and quick-release couplings, users can easily alternate between parallel and series piping arrangements to observe different flow characteristics.

Q: How does the apparatus benefit instructors and students?

A: It provides a tangible, interactive platform for understanding complex fluid dynamics, reinforcing classroom theory through practical experiments. The quick setup, low-maintenance features, and precise measurement instruments enable efficient and effective instruction.
