Send InquiryFIELD CBR EQUIPMENT HAND OPERATED
Price 2800.0 INR/ Piece
MOQ : 1 Piece
FIELD CBR EQUIPMENT HAND OPERATED Specification
- Accuracy
- High sensitivity for load measurements %
- Power Source
- Manual
- Temperature Range
- Suitable for standard lab temperature Celsius (oC)
- Feature
- Portable and easy-to-use
- Capacity
- 50 kN Pcs/hr
- Frequency
- Not applicable (manual operation) Hertz (HZ)
- Model No
- Measurement Range
- 0 to 50 mm penetration
- Core Components
- Load frame hand-operated crank dial gauge
- Automation Grade
- Manual
- Voltage
- Not applicable (manual) Volt (v)
- Warranty
- 1 Year
- Equipment Materials
- Mild steel
- Type
- Load testing equipment
- Usage
- Field testing and laboratory testing for soil CBR
- Display Type
- Analog
- Dimension (L*W*H)
- 700 x 300 x 300 mm Millimeter (mm)
- Weight
- Approx. 25 kg Kilograms (kg)
About FIELD CBR EQUIPMENT HAND OPERATED

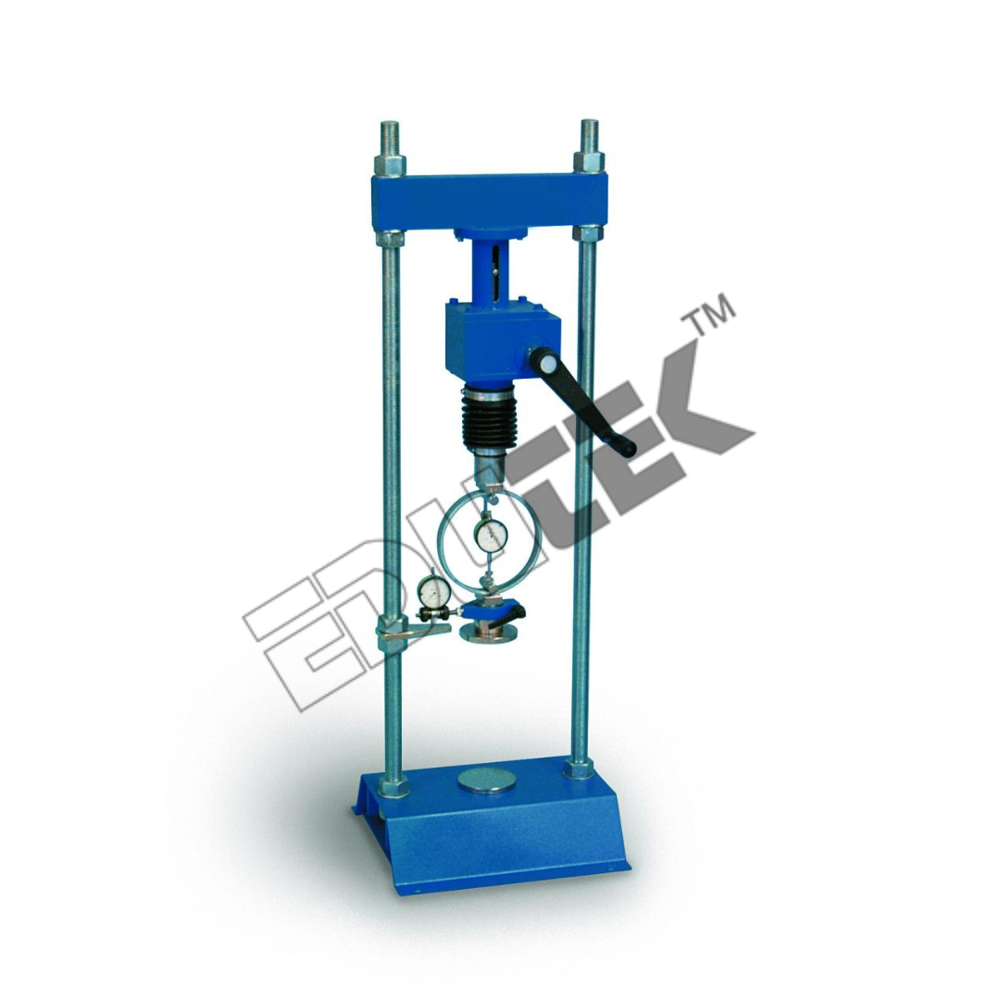

CBR TEST MACHINE HAND OPERATED
Use: CBR test in Lab to determine soil bearing capacity.
Standard: BS 1377, 1924, EN 13286-47, ASTM D1883, AASHTO T193
Specification:
- 1 CBR Loading Press.
- Proving Ring. 28 kN (6,000 lb) capacity.
- Proving Ring. 50 kN (11,200 lb) capacity.
- Penetration Dial Indicator. 25 mm range x 0.01 mm divisions.
- 4 CBR Molds.
- 1 Spacer Disc.
- 4 Filter Screens.
FAQs of FIELD CBR EQUIPMENT HAND OPERATED:
Q: What is the measurement range of the FIELD CBR Equipment Hand Operated?
A: The measurement range of the FIELD CBR Equipment Hand Operated is 0 to 50 mm penetration.Q: What is the capacity of the FIELD CBR Equipment Hand Operated?
A: The capacity of the FIELD CBR Equipment Hand Operated is 50 kN.Q: What is the power source of the FIELD CBR Equipment Hand Operated?
A: The power source of the FIELD CBR Equipment Hand Operated is manual.Q: What is the warranty period for the FIELD CBR Equipment Hand Operated?
A: The FIELD CBR Equipment Hand Operated comes with a warranty of 1 year.Q: What are the core components of the FIELD CBR Equipment Hand Operated?
A: The core components of the FIELD CBR Equipment Hand Operated include a load frame, hand-operated crank, and a dial gauge.
