Send InquiryExtractor Frame Universal
Price 1000.0 INR/ Unit
MOQ : 1 Unit
Extractor Frame Universal Specification
- Usage
- Preparing test specimens for CBR, Unconfined Compression, Triaxial, and Compaction tests
- Product Type
- Soil Sample Preparation Apparatus / Geotechnical Accessory
- Color
- Select (Typically Blue/Grey Steel)
- Core Components
- Frame, Clamps, Screws
- Measurement Range
- Universal
- Classification
- Geotechnical Engineering / Soil Mechanics Testing
- Accuracy
- 100 % %
- Capacity
- Universal (Suitable for Various Sizes) Pcs/hr
- Application
- Civil Engineering Labs, Research Facilities
- Model No
- Operate Method
- Mechanical Extrusion: The mould containing the sample is placed in the frame, and the screw jack is turned to push the sample out of the bottom of the mould onto a receiving plate
- Feature
- Highly Efficient
- Power Source
- Manual
- Material
- Steel, Cast Iron
- Automation Grade
- Manual
- Equipment Materials
- Steel, Aluminium
- Type
- Extractor Frame
- Dimension (L*W*H)
- Custom/Universal Fit Millimeter (mm)
- Weight
- Approx. 2-4 kg Kilograms (kg)
About Extractor Frame Universal

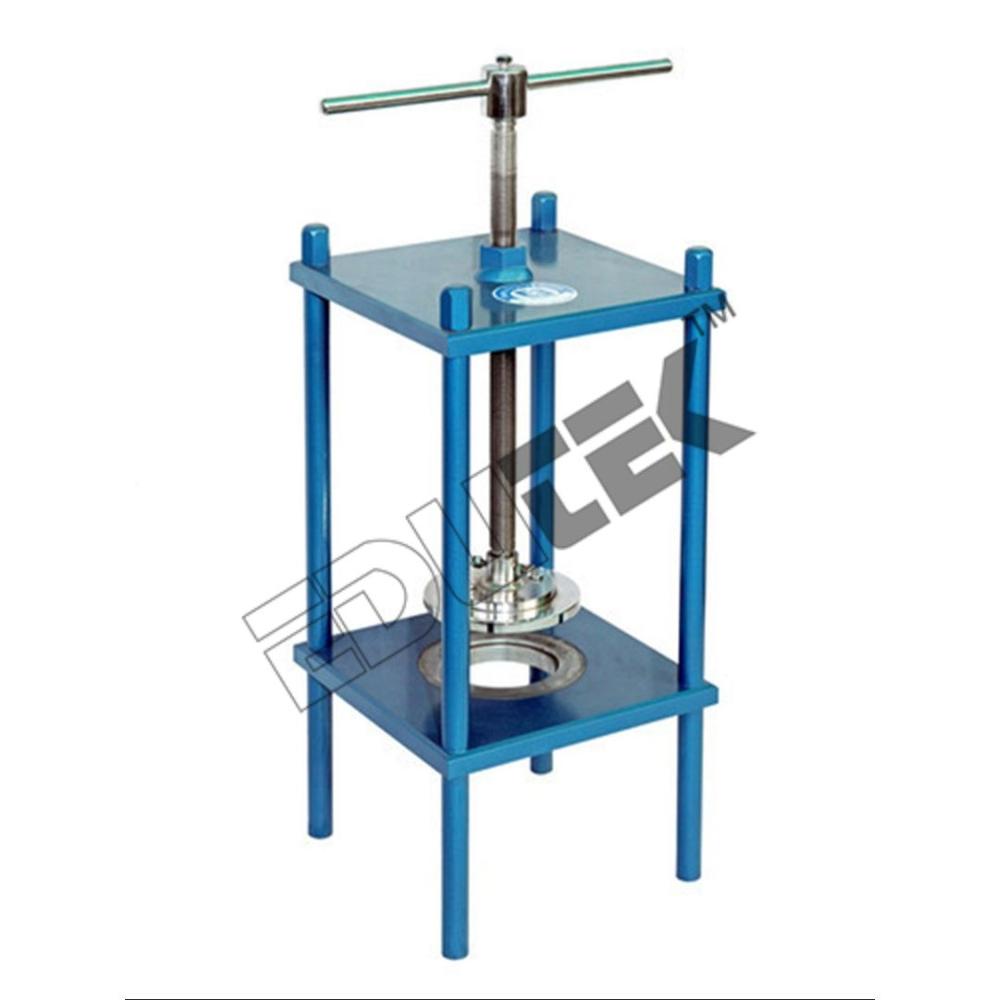

Extractor Frame Universal
Designed to extract specimens from almost every type of sampling tube and mould used in solid engineering laboratory or in the field. It can be mounted vertically or horizontally as desired. It has an unique feature that three 38mm dia sample.
Specification
Comprises of a frame designed for screw jack operation, one each of the adaptors for 38mm, 75mm, 100mm, 150mm dia meter specimens and a stand to obtain simultaneously three 38mm diameter samples from one 100mm diameter sample. The adaptor plate which slides along the slotted support can be claimed at any desired position by means of locking nuts. Besides this, the tube or mould can be held in position by raising the tube guides and held in position with locking screws. The lead screw movement can be stopped at any predetermined position by tightening the lead screw collar. Plunger adaptor for 200mm dia samples. Adaptor plate with 200mm dia hole and device to extract b number 38mm dia samples.
Exceptional Material and Build Quality
Constructed from premium steel and aluminium, the UF-EXTRACTOR frame resists corrosion and maintains structural integrity under rigorous laboratory conditions. The polished surface finish enhances longevity, making it suitable for repeated use and easy to clean.
Universal Compatibility and Full Adjustability
Engineered to fit most standard extraction apparatus, the frames fully adjustable jaws and arms secure equipment of diverse sizes firmly. This flexibility ensures seamless adaptation for multiple laboratory setups, maximizing utility and convenience.
Bench and Stand Mounting Options
Designed for bench or stand mounting, the UF-EXTRACTOR can be integrated effortlessly into various lab environments. Its stable base and non-slip grips help prevent accidents, contributing to a safer workspace.
FAQs of Extractor Frame Universal:
Q: How do I mount the Extractor Frame Universal in my laboratory setup?
A: The UF-EXTRACTOR frame offers flexible mounting options, letting you securely attach it to a bench or use it as a stand-mounted unit. Simply adjust and fasten the clamps and screws to fit your workspace configuration.Q: What extraction apparatus is compatible with this frame?
A: Designed for universal use, the Extractor Frame Universal fits most standard laboratory extraction apparatus. Its fully adjustable jaws allow accommodation of equipment with varying dimensions.Q: When should I use the Extractor Frame Universal during lab processes?
A: It is ideally used whenever stable and accurate support for extraction apparatus is required, particularly during chemical or analytical procedures that benefit from precise equipment positioning.Q: Where is the UF-EXTRACTOR best utilized?
A: This extractor frame is best suited for laboratory environments, including educational, research, and industrial labs needing adaptable and secure equipment mounting for extraction operations.Q: What steps are involved in adjusting the frame for different apparatus sizes?
A: To adjust the frame, loosen the screws, position the jaws and arms according to your apparatus size, and tighten the components until the equipment is securely held in place. The process accommodates most extraction setups safely.Q: What are the key benefits of using the Extractor Frame Universal?
A: The main benefits include high efficiency, full adjustability, enhanced safety through non-slip grips and stable base, corrosion resistance, and universal compatibility, offering laboratories reliable and accurate extraction support.
