Experiments With A Reaction Turbine

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Experiments With A Reaction Turbine Specification

Feature
Highly Efficient

Warranty
1 year

Dimension (L*W*H)
360x250x180 Millimeter (mm)

Weight
5 Kilograms (kg)

Accuracy
100 %

Type
EXPERIMENTS WITH A REACTION TURBINE

Usage
Laboratory

About Experiments With A Reaction Turbine

EXPERIMENTS WITH A REACTION TURBINE

The conversion of pressure energy into kinetic energy in the rotor is characteristic for reaction turbines.
The experimental unit is placed upon the base unit. The two units together provide the basic experiments to get to know the operating behaviour and the most important characteristic variables of reaction turbines.
The water jet discharged from the rotor which drives the turbine according to the reaction principle can be observed during operation. This facilitates the understanding of the principle of operation and the underlying laws (eg. momentum).

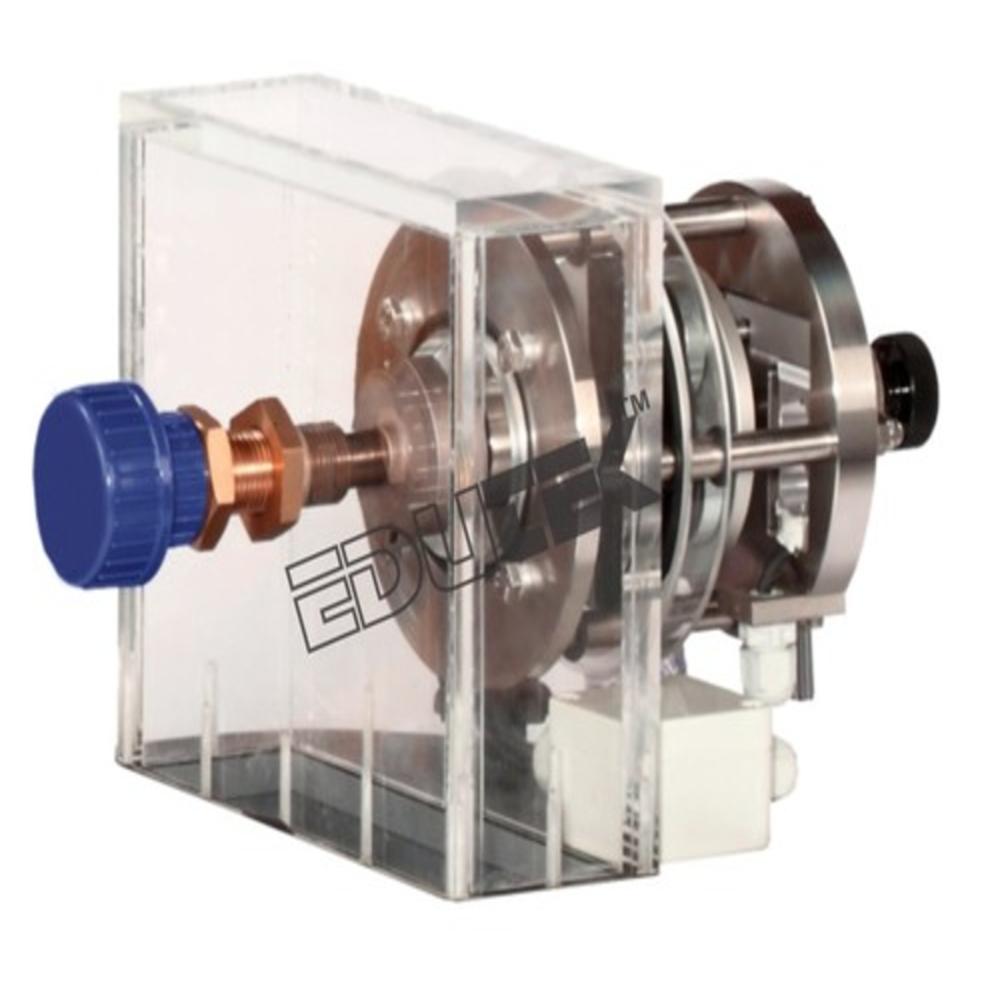

Consists of a rotor mounted in a transparent housing and a loading device outside of the housing. The eddy current brake generates a defined load. The eddy current brake is specially developed. It is wear-free and can be finely adusted.
The torque delivered by the turbine is determined via an electronic force sensor. The speed is measured with an optical speed sensor. The measuring values are transferred to the base unit
The water supply and the flow rate measurement are realised with the base unit. A pressure control included in enables the
recording of characteristics at a constant head.
All the advantages of software-supported experiments and evaluation are offered by the software in.
The well-structured instructional material sets out the fundamentals and provides a step-by-step guide through the experiments.

Learning Objectives / Experiments

Principle of operation of a reaction turbine
Characteristic curves at constant head
Relationship between torque and speed
Efficiency dependent on speed
Flow rate dependent on speed
Hydraulic power and mechanical power depending on speed
Evaluation of measuring values and characteristics based on the theory

Specification

Turbine to place upon the base unit for turbines
Functioning and operating behaviour of a reaction turbine
Transparent housing for observing the discharged water jet
Constant pressure of the turbine represents in practice the head and is adjusted via base unit for turbines
Turbine load using the wear-free and adjustable eddy current brake
Force sensor to determine the torque on turbine shaft
Optical speed sensor for measuring the turbine speed
Water supply, flow rate measurement and unit-specific software data acquisition and operation via base unit for turbines

Technical Data

Turbine

Power output: approx. 60W at 8000min-1
Rotor diameter: 50mm

Measuring ranges

Torque: 0..0,5Nm
Speed: 0..20000min-1

Dimensions and Weight

LxWxH: 360x250x180mm
Weight: approx. 5kg

Precision and Efficiency in Every Experiment

Engineered for laboratory settings, this reaction turbine experiment apparatus delivers 100% accuracy for clear and reproducible results. Its compact design fits effortlessly into any workspace, making it ideal for educational and research environments. Highly efficient, it helps students and researchers understand turbine dynamics through practical, real-world applications.

Trusted Indian Manufacturer and Exporter

Proudly manufactured, exported, and supplied from India, the apparatus meets strict quality standards. It combines durability with user-friendly operation, reinforced by a 1-year warranty for peace of mind. Choose a product that supports reliable experiments and stands up to repeated use in demanding academic settings.

FAQs of Experiments With A Reaction Turbine:

Q: How does the Experiments With A Reaction Turbine apparatus ensure accuracy during laboratory usage?

A: The apparatus is designed to deliver 100% accuracy through precise engineering and robust construction, ensuring that experimental results in laboratory conditions are reliable and repeatable.

Q: What are the main benefits of using this reaction turbine experiment setup in educational laboratories?

A: This setup provides hands-on learning of turbine mechanisms, aids in visualizing fluid dynamics, and encourages practical understanding, making it an invaluable teaching tool for students and researchers alike.

Q: When should I consider using this apparatus in my curriculum or research?

A: It is ideal for inclusion in courses or research activities focused on fluid mechanics, energy conversion, or mechanical engineering, especially when a practical demonstration of reaction turbines is required.

Q: Where is the Experiments With A Reaction Turbine apparatus manufactured and available for export?

A: This apparatus is manufactured in India and is supplied and exported globally, offering excellent quality backed by reputable Indian manufacturing standards.

Q: What is the general process for conducting an experiment using this turbine setup?

A: The experiment involves assembling the turbine as per the manual, introducing a controlled fluid flow, and observing parameters such as energy conversion and efficiency to understand how reaction turbines operate.

Q: How does the size and weight of the unit benefit laboratory environments?

A: With its compact dimensions (360x250x180 mm) and lightweight design (5 kg), the unit is easy to transport, install, and store, maximizing laboratory space and facilitating frequent use.

Q: What warranty and after-sales support does the manufacturer provide?

A: The product is supplied with a 1-year warranty that covers manufacturing defects, ensuring reliable performance and support throughout its initial service life.
