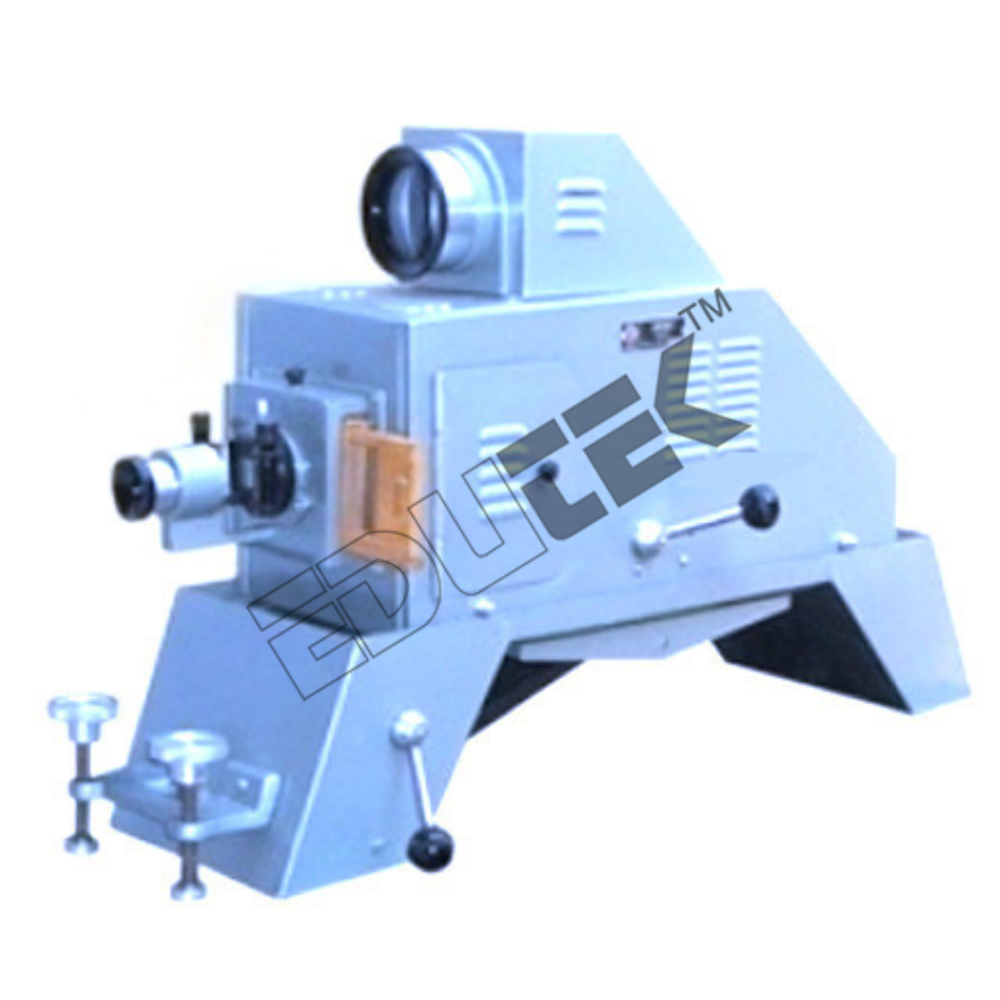

Epidiascope .

Price 1000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Epidiascope . Specification

Dimension (L*W*H)
Approximately 56cm x 35cm x 40cm

Product Type
Epidiascope

Use
Classroom Teaching, Presentations, Visual Demonstrations

Shape
Rectangular Box

Phase
Single Phase

Height
40 cm (approx)

Properties
High Intensity Illumination, Adjustable Lens, Integrated Cooling Fan

Weight
Around 20 kg

Accuracy
High precision focusing mechanism

Power
500W

Material
Metal and Glass

Frequency
50 Hz

Display Type
Optical Projection

Automation Grade
Manual

Humidity Range
Up to 90% RH (non-condensing)

Suitable For
Educational Institutions, Seminar Halls, Training Centers

Application
Projecting images of opaque objects, documents, books, and diagrams

Function
Projection of Opaque Objects and Transparencies

Color Code
Grey/Black

Temperature Range
0C to 40C

Voltage
220-240V AC

Display
Direct Optical Projection

Power Source
Electric

Focusing Mechanism
Rack and Pinion

Cooling System
Air-cooled with Fan

Operational Safety
Thermal Cut-off and Overload Protection

Maintenance
Easy Access for Lamp and Lens Replacement

Lamp Type
Halogen Lamp

Brand Compatibility
Universal

Image Size
Up to 100 inches diagonal (approx)

Projection Distance
2 to 5 meters (Adjustable)

Body Finish
Sturdy, Powder-coated Metal

Lens Type
Achromatic, Anti-Reflection Coated

Mount Type
Desktop

Epidiascope . Trade Information

Minimum Order Quantity
1 Set

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Epidiascope .

Epidiascope

Specifications of Epidiascope

It is an indispensable visual aid for the teacher or lecturer and is today the most popular equipment of its kind in use in colleges, universities, laboratories, training and research centres. It is a gem of Indian craftsmanship fabricated with multipurpose equipment serving as an episcope, lantern slide projector and filmstrip slide projector.

As an Episcope : It projects books, pictures maps, diagram, stamps coins and other solid objects. Books and other objects are placed from where an area of 61/4" x 61/4" is evenly illuminated and projected over to the screen. Object of much large size like maps end charts can be projected in stage of 6 1/4" x 6 1/4".

As a Slide Projector : Instantaneous change-over from episcopic projection to diascopic projection by just turning a lever mounted to the right hand side, size of slides 3 1/4" x 3 1/4"; 2" x 2" can be shown with the diascopic attachment fitted with anastigmatic lens.

As a filmstrip Projector : Quick-change over from slide adpter to filmstrip adapter by just loosening a screw on the lens adapter 35mm single double frame filmstrips and 3" x 1" microslide are projected with this attachment fitted with lens (4" 100mm).

Although fabricated with multipurpose equipment it is simple to operate, easy to clean and gives clear sharp focus.

Cooling System : AC Motor Driven Blower for exhaustion of heat.

All these factors results in absolute comfort for the operator and immunity from damage for projected material without tremendous light output

Epidiascope 1000W/240V lamp, surface coated reflecting mirror with noiseless colling system is also available

Crystal-Clear Projection for Every Learning Environment

Featuring an achromatic, anti-reflection coated lens and adjustable projection distance (2 to 5 meters), the Epidiascope ensures sharp and vibrant visuals on screens up to 100 inches. Its precise focusing mechanism guarantees image clarityideal for intricate diagrams, documents, or opaque objects.

Operator Safety and Hassle-Free Maintenance

With built-in thermal cut-off and overload protection, you can operate the Epidiascope worry-free during extended sessions. Lamp and lens replacement is straightforward thanks to its user-friendly design, minimizing downtime for busy classrooms and training environments.

Designed for Versatility and Durability

Constructed from powder-coated metal and toughened glass, the Epidiascope stands up to frequent use in demanding settings. Its universal brand compatibility and stable desktop mounting make it a flexible asset for educators and presenters alike.

FAQs of Epidiascope :

Q: How do I replace the halogen lamp or lens in the Epidiascope?

A: Lamp and lens replacement is quick and simple due to the easy-access design. Just follow the instructions in the user manual to safely access and change these components, ensuring the unit is switched off and unplugged before maintenance.

Q: What applications is the Epidiascope best suited for?

A: This projector excels in classroom teaching, seminar presentations, training demonstrations, and any situation requiring the clear projection of books, opaque objects, documents, or diagrams onto a large screen.

Q: When should I use the Epidiascopes thermal cut-off feature?

A: The thermal cut-off engages automatically if the projector overheats during prolonged use, providing additional safety. If triggered, allow the unit to cool before resuming use.

Q: Where can I position the Epidiascope for optimal image size and clarity?

A: Place the unit on a stable desktop surface, maintaining a projection distance of 2 to 5 meters from the screen. Adjust focus using the rack and pinion mechanism to achieve the desired image size and sharpness, up to approximately 100 inches diagonal.

Q: What benefits does the air-cooled fan system offer?

A: The integrated fan provides robust airflow to keep the halogen lamp and internal components cool, supporting consistent performance and prolonging equipment lifespan, especially in extended teaching or presentation sessions.

Q: How can I ensure accurate focusing during operation?

A: Utilize the precise rack and pinion focusing mechanism to adjust lens position smoothly, resulting in sharp and detailed projections tailored to your material and desired image size.

Q: Is the Epidiascope compatible with different brands or setups?

A: Yes, the Epidiascope boasts universal brand compatibility, making it suitable for integration into a wide variety of educational and professional projection environments.
