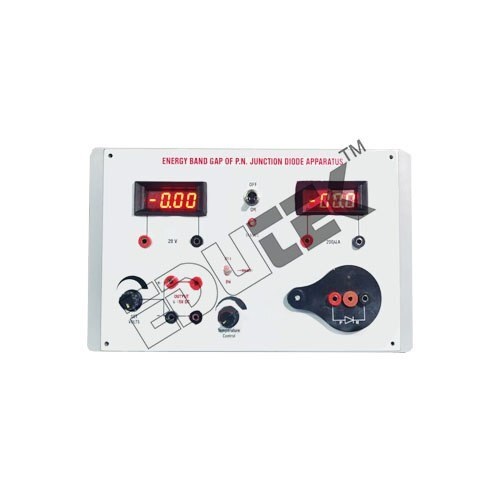

ENERGY BAND GAP APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS

Name: ENERGY BAND GAP APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS
Brand: EDUTEK INSTRUMENTATION
Price: 1800.0 INR
Availability: InStock

Price 1800.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ENERGY BAND GAP APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS Specification

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Power Supply
20V DC

Product Type
ENERGY BAND GAP APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Function
ENERGY BAND GAP APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS

Warranty
1 Year

Features
ENERGY BAND GAP APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS Inbuilt Variable DC Regulated Power Supply of 0-20V DC. Temperature Controlled Electric oven to heat up the Diode. Mercury thermometer is mounted on front panel to measure the temperature of oven Volt Meter Range of 20V DC for measure the Voltages. Current Meter Range of 500mA for measure the Current.

ENERGY BAND GAP APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About ENERGY BAND GAP APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS

Specification:

ENERGY BAND GAP APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS

Inbuilt Variable DC Regulated Power Supply of 0-20V DC.

Temperature Controlled Electric oven to heat up the Diode.

Mercury thermometer is mounted on front panel to measure the temperature of oven

Volt Meter Range of 20V DC for measure the Voltages.

Current Meter Range of 500mA for measure the Current.

Versatile Laboratory Instrument

This apparatus is engineered for educational and experimental use within electronics engineering, providing accurate voltage and current measurements alongside temperature control. Its user-friendly design integrates all essential features, facilitating seamless laboratory experiments for students and professionals alike.

Precise Temperature and Electrical Measurement

Featuring a temperature-controlled electric oven and reliable digital meters, this apparatus consistently delivers accurate readings. The 20V DC voltmeter and 500mA current meter make it suitable for a wide range of electronic testing procedures, to effectively determine energy band gaps.

FAQ's of ENERGY BAND GAP APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS:

Q: How do I use the Energy Band Gap Apparatus for experiments?

A: To use the apparatus, connect your sample diode to the measurement terminals, set the desired oven temperature using the temperature controller, and adjust the DC regulated power supply as needed. Monitor the voltage and current on the digital meters, and use the mercury thermometer for precise temperature readings during the experiment.

Q: What benefits does the aluminum panel and digital meter design offer?

A: The aluminum panel adds durability and enhanced heat dissipation, while the digital meters provide clear, accurate voltage and current readings. This combination ensures reliable performance and user safety during laboratory use.

Q: When should the apparatus be calibrated for optimal results?

A: It is recommended to calibrate the apparatus before starting any new series of experiments, or after any significant movement or power supply changes, to ensure the most accurate measurements and repeatability.

Q: Where is the apparatus typically used?

A: This apparatus is commonly used in engineering colleges, research laboratories, and industrial settings across India for electronic and semiconductor studies, particularly in experiments involving energy band gap determination.

Q: What is the measuring range for voltage and current?

A: The built-in voltmeter can measure up to 20V DC, while the current meter is capable of measuring up to 500mA, covering standard requirements for semiconductor experiments.

Q: How does the temperature-controlled oven benefit the measurement process?

A: The temperature-controlled oven provides precise heating capabilities, essential for observing diode behavior at different temperatures, which is critical for determining the energy band gap of semiconductors accurately.
