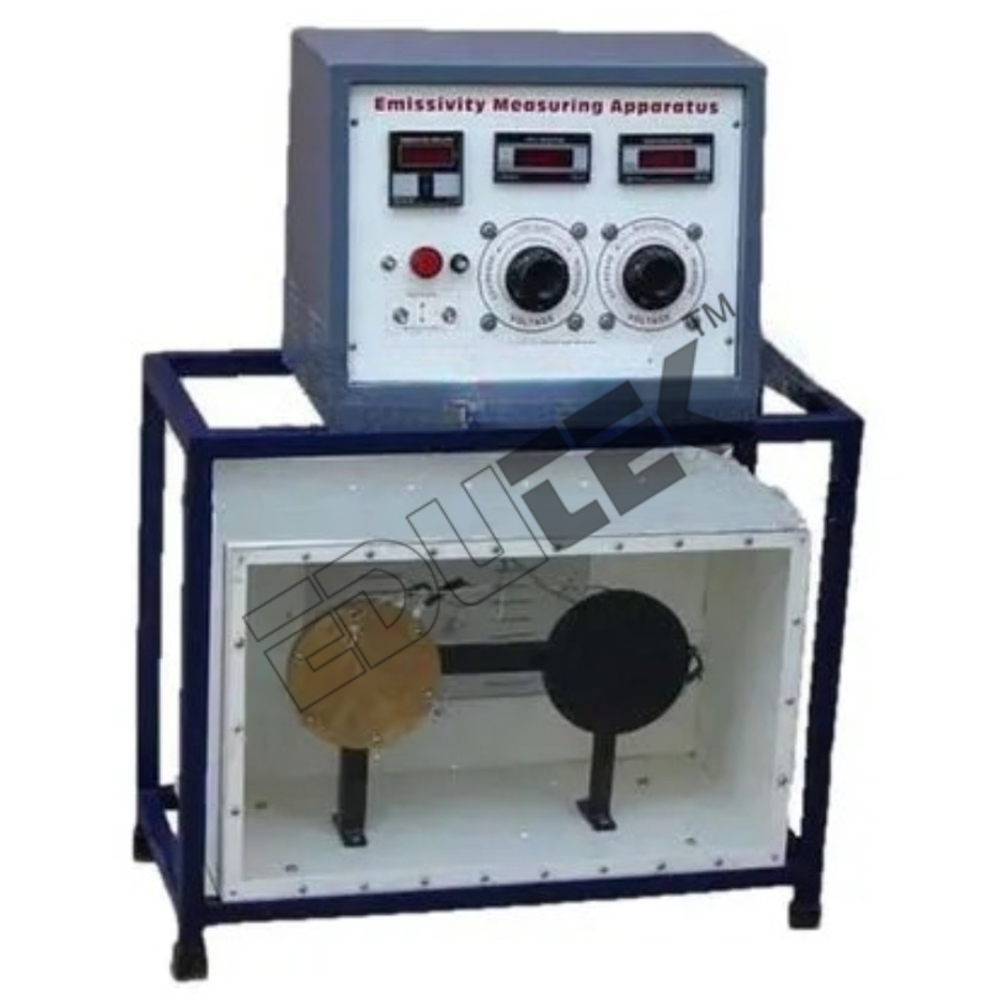

Send InquiryEMISSIVITY MEASUREMENT APPARATUS
Price 1000.0 INR/ Piece
MOQ : 1 Piece
EMISSIVITY MEASUREMENT APPARATUS Specification
- Power Source
- Single Phase
- Frequency
- 50 Hz Hertz (HZ)
- Operate Method
- The present Set-up is designed tomeasure the emissivity of test plate. The test plate comprises of a micaheater sandwiched between two circular plates. Black plate is identical with testplate, but its surface is blackened. As all the physical properties,dimension and temperature are equal heat losses from both plates will be sameexcept radiation loss. Hence the input difference will bedue to difference in emissivity. Both plates are supported onindividual brackets in a enclosure with one side glass to ensure steadyatmospheric conditions. Temperature Sensors are provided tomeasure the temperature of each plate and surrounding. Electric Supply is given to heatersthrough separate variacs so that temperatures of both can be kept equal and isme asured with Digital Voltmeter and Digital Ammeter.
- Application
- Heat Transfer Laboratory Equipment
- Material
- Cast Iron
- Usage
- Heat Transfer Laboratory Equipment
- Product Type
- EMISSIVITY MEASUREMENT APPARATUS
EMISSIVITY MEASUREMENT APPARATUS Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Packaging Details
- Carton Box, Export Quality also Available
- Main Export Market(s)
- Africa, Asia, Middle East
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About EMISSIVITY MEASUREMENT APPARATUS
Specification:
EMISSIVITY MEASUREMENT APPARATUS
Description
The present Set-up is designed tomeasure the emissivity of test plate.
The test plate comprises of a micaheater sandwiched between two circular plates.
Black plate is identical with testplate, but its surface is blackened.
As all the physical properties,dimension and temperature are equal heat losses from both plates will be sameexcept radiation loss.
Hence the input difference will bedue to difference in emissivity.
Both plates are supported onindividual brackets in a enclosure with one side glass to ensure steadyatmospheric conditions.
Temperature Sensors are provided tomeasure the temperature of each plate and surrounding.
Electric Supply is given to heatersthrough separate variacs so that temperatures of both can be kept equal and isme asured with Digital Voltmeter and Digital Ammeter.
Product Description
Material: Cast Iron
Brand: Teknik
Frequency: 50 Hz
Phase: Single Phase
