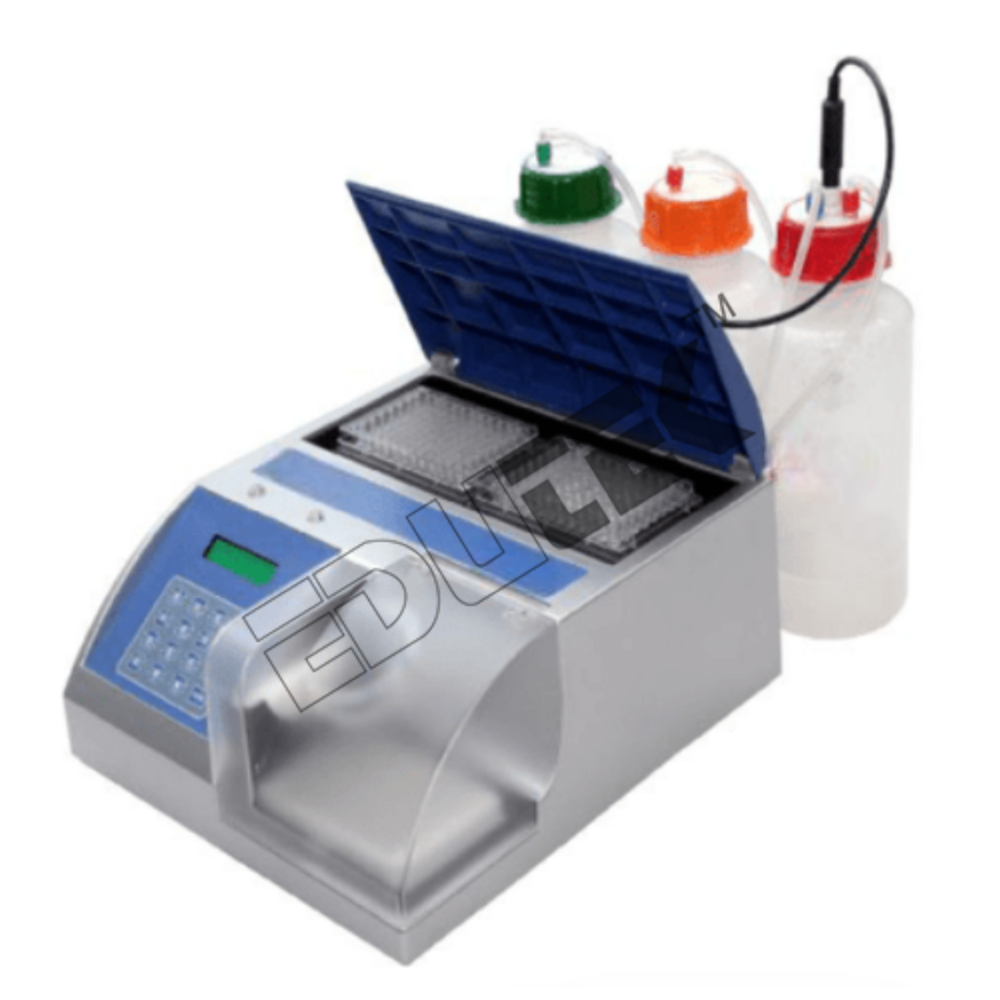

Elisa Washwell Plate Analyzer

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Elisa Washwell Plate Analyzer Specification

Weight
11 kg (approx.)

Power
350 VA

Usage
Washwell Plate is an automatic Strip/ Plate washer with built -in incubator & programmable time. Its extensive liquid management system generates acoustic signal and error messages which are prompted on the display. Different plate types can be supported and are easily loaded in the plate carrier ensuring that plates are always in the right position with gurarantee of optimum washing of wells regardless of the well configuration e.g. Round/ flat bottom types.

Application
ELISA plate washing for clinical laboratories, research, and diagnostics.

Dimension (L*W*H)
465 x 395 x 180 mm

Product Type
ELISA WASHWELL PLATE ANALYZER

Color
White & Blue

Capacity
1 x 8 / 1 x 12 strips, up to 96-well plates

Voltage
220-240V AC, 50/60 Hz

Material
ABS Plastic & Stainless Steel Manifold

Operate Method
Automatic with microprocessor control, digital display, keypad operation

Classification
Laboratory Equipment

Storage Temperature
10°C to 40°C

Residual Volume
< 2µl per well

Soak Time
Programmable, 0-999 seconds

Wash Modes
Multiple programmable washing modes

Incubator Function
Built-in incubator, programmable timing

Alarm Functions
Acoustic signals and error messages for liquid management issues

External Interface
RS232/USB

Supported Plate Types
Flat, round, U-bottom, V-bottom 96-well ELISA plates

Display
Large graphical LCD display

Dispensing Volume
50-3000 µl (programmable)

Number of Wash Channels
8 or 12 channels (programmable)

Elisa Washwell Plate Analyzer Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Elisa Washwell Plate Analyzer

ELISA WASHWELL PLATE ANALYZER ETA-34

Washwell Plate is an automatic Strip/ Plate washer with built -in incubator & programmable time. Its extensive liquid management system generates acoustic signal and error messages which are prompted on the display. Different plate types can be supported and are easily loaded in the plate carrier ensuring that plates are always in the right position with gurarantee of optimum washing of wells regardless of the well configuration e.g. Round/ flat bottom types.

FEATURES OF ELISA WASHWELL PLATE ANALYZER

Specially designed Manifold assembly to prevent any scratching on bottom of well.
User programmable soak time, wash cycles and dispensing volume.
On Board two plate incubator at 37 C with programmable timer.
Waste bottle full warning with audible alarm.
Built-in stabilizer.
Continuous aspiration to prevent overflow.
Removable manifold.
Ability to wash single strip of 8 wells.

Versatile Plate Compatibility

The Elisa Washwell Plate Analyzer is designed to handle a range of 96-well ELISA plates, including flat, round, U-bottom, and V-bottom varieties. The easy-to-load plate carrier ensures that each plate is securely positioned for optimal washing performance, regardless of configuration. This versatility makes it a suitable solution for various laboratory applications.

Advanced Programmable Features

This analyzer offers fully programmable washing and dispensing volumes (503000 l), soak times (0999 seconds), and multiple wash modes. Microprocessor control and a digital keypad allow users precise customization of each wash protocol, ensuring flexibility and consistency across different assay requirements.

User-Friendly Design and Safety Functions

Operators benefit from the large, graphical LCD display, guiding them through setup and operation. The system includes acoustic alarm functions and error messages that promptly notify users of liquid management issues. These safeguards, together with the robust construction and optimal washing mechanics, support a reliable workflow in laboratory settings.

FAQs of Elisa Washwell Plate Analyzer:

Q: How does the Elisa Washwell Plate Analyzer improve ELISA workflow efficiency?

A: The analyzer automates the plate washing and incubation process, reducing manual labor and human error. Its programmable features and extensive error notification system enhance reproducibility and throughput in clinical and research laboratories.

Q: What types of ELISA plates are compatible with this analyzer?

A: It supports all standard 96-well ELISA plates, including flat, round, U-bottom, and V-bottom designs. Plates are easily loaded and remain properly positioned throughout the wash cycle, ensuring optimal results.

Q: When should I use the built-in incubator function?

A: The built-in incubator is ideal when precise, programmable timing for incubation steps is required as part of your ELISA protocol. This ensures consistent assay conditions and improved experimental accuracy.

Q: Where can the analyzer be installed, and what are its space requirements?

A: With dimensions of 465 x 395 x 180 mm and weighing approximately 11 kg, the analyzer can be conveniently placed on any standard laboratory bench. It operates efficiently in ambient temperatures ranging from 10C to 40C.

Q: What is the process for programming a wash cycle?

A: Users can set wash parameters such as the number of strips, volume (503000 l), soak time (0999 seconds), and wash modes using the digital keypad and graphical LCD display. Settings are saved and repeated with high precision, streamlining routine operations.

Q: How does the analyzer ensure liquid management and safety?

A: The system continuously monitors liquid levels and operational status, issuing acoustic alarms and on-screen error messages if an issue occurs. This proactive approach helps prevent operational mishaps and safeguards both samples and equipment.

Q: What are the main benefits of choosing this analyzer for ELISA plate washing?

A: Key benefits include automated operation, high throughput, support for various plate types, precise and programmable washing, built-in incubation, and advanced safety featuresall contributing to accurate and reproducible ELISA results.
