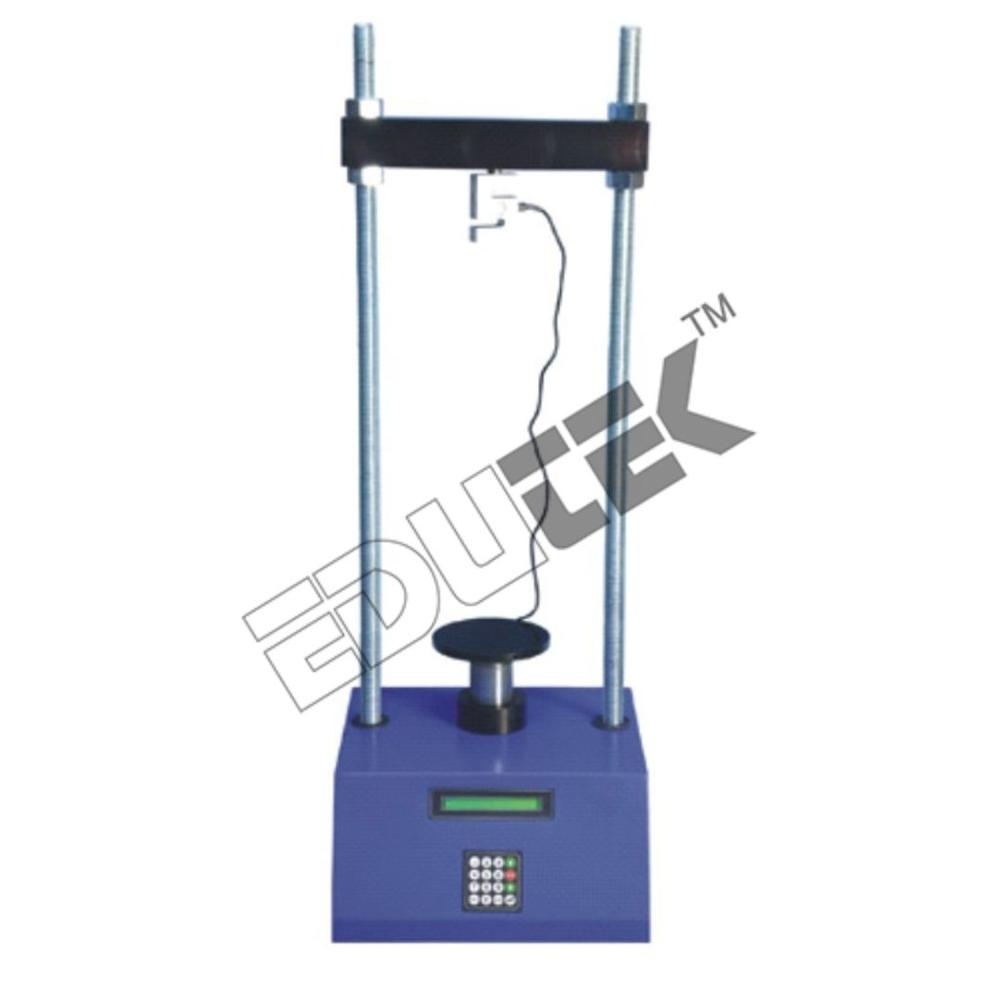

Send InquiryElectronic Unconfined Compression Tester
Price 1000.0 INR/ Unit
MOQ : 1 Unit
Electronic Unconfined Compression Tester Specification
- Measurement Range
- 0-1000 kg
- Core Components
- Microprocessor Load cell Aluminum body
- Material
- Steel, Aluminum, Electronic Components
- Classification
- Geotechnical Engineering / Soil Mechanics Testing
- Feature
- Compact and portable design
- Power Source
- Electric
- Operate Method
- Automated Loading: Specimen is placed between platens; the motor drives the lower platen up at a fixed rate, and load deformation data is automatically recorded until failure
- Warranty
- 1 year
- Product Type
- Soil Strength Tester / Compression Tester
- Temperature Range
- 0 C to 50 C Celsius (oC)
- Capacity
- 1000 kg Kg
- Color
- Select (Typically Blue/Grey Frame)
- Application
- Civil Engineering, Geotechnical Labs
- Model No
- Voltage
- 220-240V Volt (v)
- Accuracy
- 0.5% %
- Usage
- Foundation design, bearing capacity calculation, slope stability analysis
- Frequency
- 50/60 Hz Hertz (HZ)
- Automation Grade
- Automatic
- Equipment Materials
- Aluminum Metal
- Type
- Electronic Unconfined Compression Tester
- Display Type
- Digital LCD
- Dimension (L*W*H)
- 450 x 350 x 700 mm Millimeter (mm)
- Weight
- 25 kg Kilograms (kg)
About Electronic Unconfined Compression Tester
Electronic Unconfined Compression Tester
This is similar to with the added advantage of a motorised drive permitting a choice of three constant rates of stain.
Specification
Comprises a screw operated load frame, cap.5000kg with a gear box and motor drive giving 1.25, 1.5, 2.5mm/min. Rates of strain, a pair of cone seating, adapter for proving ring, and stain dial gauge bracket. Supplied with one pair of male/female coning tools for 38mm dia samples but without ring and dial gauge. Suitable for operation on 230 V, Single Phase A.C. Supply.
Accessories
- Coning tools in pairs (Male & Female) for samples having diameter 38mm, 50mm, 75mm & 100mm
FAQs of Electronic Unconfined Compression Tester:
Q: What is the usage of the Electronic Unconfined Compression Tester?
A: The Electronic Unconfined Compression Tester is used for testing the compressive strength of soil.Q: What are the key features of the Electronic Unconfined Compression Tester?
A: The Electronic Unconfined Compression Tester features automatic operation, a digital LCD display, and a compact and portable design.Q: What is the measurement range of the Electronic Unconfined Compression Tester?
A: The measurement range of the Electronic Unconfined Compression Tester is 0-1000 kg with an accuracy of 0.5%.Q: What is the voltage requirement for the Electronic Unconfined Compression Tester?
A: The Electronic Unconfined Compression Tester requires a voltage range of 220-240V at a frequency of 50/60 Hz.Q: What materials are used in the construction of the Electronic Unconfined Compression Tester?
A: The Electronic Unconfined Compression Tester is constructed with aluminum metal for durability and reliability.
