Electrical Dc Machine Training Unit

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Electrical Dc Machine Training Unit Specification

Usage
Laboratory, Educational Institutions

Operating Temperature
0C to 50C

Features
Overload protection, modular panel design, easy interconnection

Sensors Specification
Integrated current and voltage sensors

Output
DC mechanical output

Power Source
AC mains

Power Supply
230 V AC, 50 Hz

Input
AC mains

Display Type
Digital

Response Time
Instantaneous

Interface
Banana socket terminals

IP Rating
IP20

Resolution
Analog & digital meters resolution of 0.01 V/A

Components
DC Machine, Control Panel, Digital Meters, Connection Cords

Product Type
Electrical DC Machine Training Unit

Application
Electrical machine training

Rated Voltage
220 V DC

Supply Voltage
230 V AC

Size
Standard laboratory size

Dimension (L*W*H)
950 mm 550 mm 350 mm

Function
Training and demonstration of DC electrical machines

Color
Blue & White

Weight
Approx. 35 kg

Current Rating
10 A

Capacity
1 kW

Thickness
3 mm panel

Frequency
50 Hz

Electrical Dc Machine Training Unit Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Electrical Dc Machine Training Unit

Electrical Dc Machine Training Unit

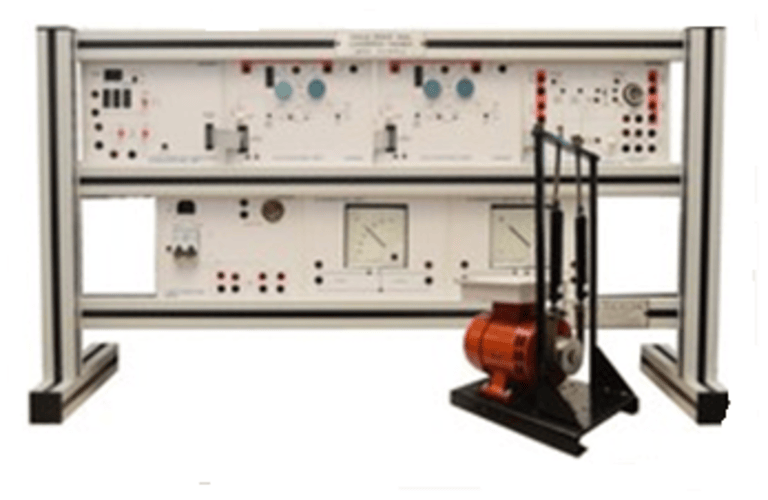

The unit serves to familiarize students with the components and principle of operation of A Dc motor and Dc generator and enables them to examine the characteristic values of the dc machines.

Motor power: 300W
Power supply:220V, 60Hz, 3-phase
Pc and Software and license for operation included

All required tools for operation included Series of motors, generators, brake, tools and various accessories to be able to make anytest on the electric Dc machines included complete with all required accessories and machines.

Comprehensive Training Capability

Experience hands-on learning with a training unit suitable for all educational levels. The equipment accommodates a range of experiments in DC machine principles, making it ideal for students and professionals in electrical engineering.

Built-In Safety and Durability

The training system incorporates overload, MCB, and fuse protection within a robust powder-coated steel and ABS enclosure. Its modular panel design and galvanic isolation ensure user safety and long-term reliability.

Easy Operation and Compatibility

Intuitive color-coded terminals, user-friendly controls, and compatibility with standard laboratory setups make installation and operation straightforward. Both manual and automatic control systems cater to diverse educational needs.

FAQs of Electrical Dc Machine Training Unit:

Q: How do I safely operate the Electrical DC Machine Training Unit?

A: Begin by connecting the unit to a standard 230 V AC mains supply. Ensure all terminals are correctly color-coded for easy identification, and use the included user manual for guidance. The device offers both manual and automatic controls, maintaining user safety with integrated MCB, fuse protection, and galvanic isolation.

Q: What components are included with the training unit?

A: The unit comes complete with a DC machine, modular control panel, digital meters with 0.01 V/A resolution, connection cords, current and voltage sensors, a comprehensive user manual, and experiment sheets for guided learning.

Q: When should the machine be recalibrated after installation?

A: The training unit is factory calibrated for immediate use. Calibration is typically maintained for standard laboratory applications. It is recommended to check calibration annually or after intensive usage to ensure accuracy.

Q: Where can this training unit be installed?

A: Designed for standard laboratory environments, the bench-top unit fits laboratories in educational institutions or industrial training centers, requiring minimal setup space with dimensions of 950 mm 550 mm 350 mm.

Q: What is the process for conducting an electrical machine experiment with this unit?

A: Students or trainees will follow experiment sheets to connect the DC machine via banana socket terminals, operate controls as per experiment requirements, and monitor results using digital displays. Instantaneous response and clear readings aid in accurate experimentation.

Q: How does the overload and safety protection work?

A: The system includes overload protection through built-in MCBs and fuse mechanisms, instantly disconnecting power during faults to prevent equipment and user damage. Galvanic isolation further enhances safety by separating the control and power circuits.

Q: What benefits does this unit offer educational institutions?

A: It offers a safe, versatile, and reliable platform for demonstrating and studying DC machine principles, supporting beginner to advanced curricula. Instantaneous response, easy interconnection, and robust construction provide enduring value for laboratory education.
