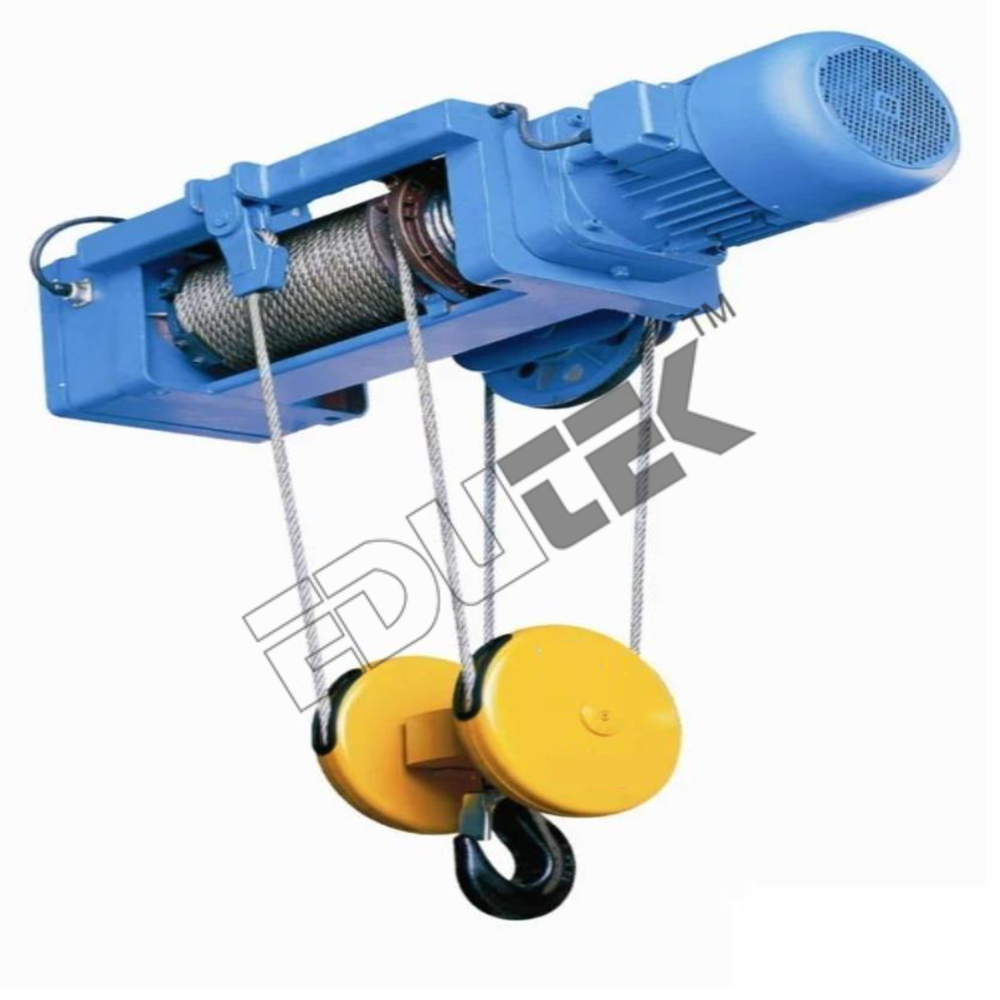

Electric Hoisting Equipment

Get a Price/Quote

Electric Hoisting Equipment Specification

Temperature Range
-10C to +50C

Measurement Range
Up to 6 meters

Capacity
2 Ton

Accuracy
High Precision Lifting

Frequency
50 Hz

Voltage
415V AC

Automation Grade
Semi-Automatic

Power Source
Electric

Core Components
Motor, Chain, Gearbox

Model No
EHE-2000

Feature
Overload Protection, Rugged Construction

Equipment Materials
High-Strength Alloy Steel

Type
Electric Hoisting Equipment

Usage
Industrial Lifting

Display Type
Analog

Dimension (L*W*H)
780 x 360 x 500 mm

Weight
Approx. 120 kg

About Electric Hoisting Equipment

HOISTING EQUIPMENT

Standard

BS EN 14492-1:2006

Specification

Conical rotor, Squirrel Cage, 1 hr. Rated, Class F, Insulated crane duty motor
Electromechanical, Conical disc type, 100% failsafe maintenance free Brake
Wear-resistant, Heat-treated, Grade 80, Special alloy steel calibrated load chain
Control voltage of 110 Volts

Advanced Safety and Control Features

The EHE-2000 integrates pendant push button controls with an emergency stop for immediate response during operations. Overload protection prevents equipment strain, ensuring both user and load safety. The IP54-rated enclosure shields internal components from dust and water, making it suitable for industrial and outdoor environments.

Superior Durability and Performance

Constructed with high-strength alloy steel, the EHE-2000 is designed to withstand rigorous use in diverse conditions. Powder coating provides an additional layer of protection against corrosion and wear, extending the lifespan of the equipment. This model maintains high performance within a wide temperature range, from -10C to +50C.

FAQs of Electric Hoisting Equipment:

Q: How does the EHE-2000 Electric Hoisting Equipment ensure operational safety?

A: The hoisting equipment features emergency stop functionality on its pendant control, as well as built-in overload protection. These mechanisms minimize risks by automatically halting operation in unsafe conditions. The IP54 protection class further guards against dust and water ingress during use.

Q: What materials and components are used in the hoisting mechanism?

A: The EHE-2000 utilizes a high-strength alloy steel chain, along with a robust motor and gearbox. These premium components are engineered for industrial durability and precise lifting over a range up to 6 meters.

Q: When is this hoisting equipment most appropriately used?

A: This electric hoist is ideal for applications in factories, warehouses, and construction sites where accurate and efficient lifting of heavy materialsup to 2 tonsis required. Its semi-automatic control allows operators to manage repetitive lifting tasks with ease and safety.

Q: Where can the EHE-2000 be installed and operated safely?

A: With its compact dimensions (780 x 360 x 500 mm) and IP54 protection, the equipment is suited for indoor and sheltered outdoor environments where exposure to dust or water may occur but extreme conditions are not present. It is widely used across industrial sites in India and exported internationally.

Q: What is the typical process for using the pendant control system?

A: Operators use the push button pendant to maneuver the hoist, enabling precise movement of the load. The analog display provides real-time feedback, and the emergency stop button can be activated instantly if abnormal conditions or hazards arise.

Q: How does the EHE-2000 benefit industrial users?

A: The hoist delivers high-precision lifting with minimal noise (under 80 dB[A]), making operations both efficient and comfortable. Its rugged construction and overload protection features reduce downtime and maintenance, improving productivity and safety in heavy-duty lifting applications.
