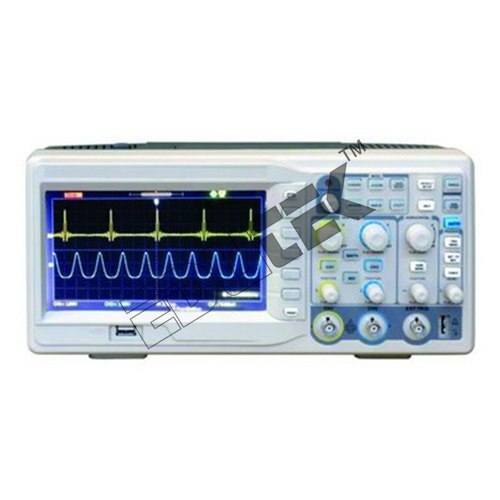

DSO 25MHZ 2 CHANNEL SAMPLING RATE 250MS/S (COLOR LCD DISPLAY)

Get a Price/Quote

MOQ : 1 Piece

DSO 25MHZ 2 CHANNEL SAMPLING RATE 250MS/S (COLOR LCD DISPLAY) Specification

Interface
USB Host, USB Device, LAN (optional)

IP Rating
Not Rated

Components
Oscilloscope, Probes, Power Cable, User Manual

Processor Speed
High-speed signal acquisition engine

Operating Temperature
0C to +40C

Response Time
Instantaneous digital triggering

Usage
ENGINEERING ELECTRONICS EQUIPMENTS

Power Source
AC Powered

Display Type
Color LCD Display

Output
Display Output via Color LCD Screen, USB Interface

Input
2 Channel analog inputs (CH1, CH2), BNC connectors

Power Supply
AC Mains

Features
Color LCD, Auto-ranging, Compact size, Easy interface, 2 independent channels

Resolution
8 bits vertical resolution

Product Type
DSO 25MHZ 2 CHANNEL SAMPLING RATE 250MS/S (COLOR LCD DISPLAY)

Application
ENGINEERING ELECTRONICS EQUIPMENTS

Rated Voltage
100-240V AC, 50/60Hz

Supply Voltage
100-240V AC

Size
Compact Desktop

Dimension (L*W*H)
306 mm 147 mm 122 mm

Function
Digital Storage Oscilloscope (DSO) for signal testing, analysis, and debugging

Color
White with colored function keys and trims

Weight
Approx. 2.5 kg

Thickness
Approx. 120 mm

Capacity
Memory depth approx. 40 Kpts/channel

Current Rating
Max input 1 M, CAT II 300V

Frequency
Bandwidth 25 MHz

Trigger Modes
Edge, Pulse, Video, Slope, Alternate

Cooling
Built-in fan for reliable operation

Save/Recall Function
Save up to 10 waveforms and 10 setups

Display Size
7 inch color LCD

Sampling Rate
250MS/s real time per channel

Math Functions
Add, Subtract, Multiply, FFT

Vertical Sensitivity
2 mV/div to 10 V/div

Auto Measurement
20+ automatic measurements

Languages
Multi-language user interface

Max Input Voltage
400 V (DC+AC peak, 1 M input)

Cursor Measurement
Voltage, Time, Delta measurements

Waveform Update Rate
up to 2,000 wfms/s

Input Impedance
1 M 2%, 20 pF 5 pF

Storage
Supports USB flash drive for data/trace storage

Probe Attenuation
1X, 10X switchable

Horizontal Scale (Time Base)
5 ns/div to 50 s/div

DSO 25MHZ 2 CHANNEL SAMPLING RATE 250MS/S (COLOR LCD DISPLAY) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About DSO 25MHZ 2 CHANNEL SAMPLING RATE 250MS/S (COLOR LCD DISPLAY)

Specifications:

DSO 25MHZ 2 CHANNEL SAMPLING RATE 250MS/S (COLOR LCD DISPLAY)

Bandwidth: 25 MHz

Channel: 2

Real Time Sample: 1 Gsa/S

Equivalent Sampling Rate:50GSa/s.

Memory Depth: 40 k

Rise time: 1.7ns

Time base accuracy50ppm, Volts/DIV

Range: 2mv/ div-5v/div

Input Impendence: 1m

For Voltage measurement, Temperature, Impedance, electricPower, frequency etc.

High-Precision Signal Analysis

With a sampling rate of 250MS/s and 25MHz bandwidth, the oscilloscope delivers accurate signal acquisition across a wide frequency range. The device provides advanced math and automatic measurement features, supporting complex electronic engineering tasks with high data fidelity. Users can observe fast digital signals and minute voltage variations easily.

Comprehensive Data Management

The oscilloscope offers convenient data storage through its USB flash drive support, allowing users to save up to 10 waveforms and setups for quick recall. Its memory depth of approximately 40Kpts per channel ensures detailed waveform captures. The instruments user interface accommodates multiple languages, streamlining operation in diverse settings.

User-Centric Design and Versatility

This model boasts a compact desktop form, a sturdy construction, and intuitive colored function keys. Its equipped with a built-in fan for effective cooling, ensuring consistent performance. Suitable for use in laboratories, engineering institutions, and electronic manufacturing, its optimized for reliable testing and signal analysis.

FAQs of DSO 25MHZ 2 CHANNEL SAMPLING RATE 250MS/S (COLOR LCD DISPLAY):

Q: How do I save and recall waveform data on this oscilloscope?

A: You can easily save up to 10 waveform traces and 10 setups using a USB flash drive connected to the oscilloscopes USB host port. Access the save/recall function through the device menu, choose the desired waveform, and follow on-screen instructions for seamless data management.

Q: What measurement capabilities does this oscilloscope support for engineering applications?

A: The oscilloscope supports over 20 automatic measurements, including voltage, time, and delta measurements via on-screen cursors. Its math functionsAdd, Subtract, Multiply, and FFTenable thorough signal analysis, making it well suited for complex testing and debugging tasks in electronics engineering.

Q: When should I use the different trigger modes provided?

A: Use Edge trigger for basic signal detection, Pulse for analyzing digital pulses, Video for video signal testing, Slope for capturing specific signal slopes, and Alternate to observe simultaneous channels. Selecting the right mode ensures accurate signal synchronization and detailed analysis.

Q: Where can this oscilloscope be effectively utilized?

A: This oscilloscope is ideal for use in educational labs, engineering research facilities, field service environments, and electronic product development due to its portability, robust features, and high-precision measurement capabilities.

Q: What is the process for setting up the input channels and probes?

A: Simply connect your input signals to the BNC connectors labeled CH1 and CH2. Select the appropriate probe attenuation (1X or 10X) based on measurement requirements and adjust vertical sensitivity (2mV/div to 10V/div) to optimize the displayed signal.

Q: How does the built-in fan benefit instrument operation?

A: The integrated cooling fan ensures stable temperature control during extended operation, protecting internal circuits from overheating and thereby maintaining measurement accuracy and prolonging the oscilloscopes lifespan.
