DROP WISE & FILM WISE CONDENSATION APPARATUS

Name: DROP WISE & FILM WISE CONDENSATION APPARATUS
Brand: EDUTEK INSTRUMENTATION
Price: 9500.0 INR
Availability: InStock

Price 9500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DROP WISE & FILM WISE CONDENSATION APPARATUS Specification

Application
Heat Transfer Laboratory Equipment

Usage
Heat Transfer Laboratory Equipment

Product Type
DROP WISE & FILM WISE CONDENSATION APPARATUS

Material
Copper tubes

Type
DROP WISE & FILM WISE CONDENSATION APPARATUS

Dimension (L*W*H)
Diameter: 19 mm (Approx.) Length: 170 mm (Approx.) Millimeter (mm)

DROP WISE & FILM WISE CONDENSATION APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Advance (CA), Cheque

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About DROP WISE & FILM WISE CONDENSATION APPARATUS

Specification:

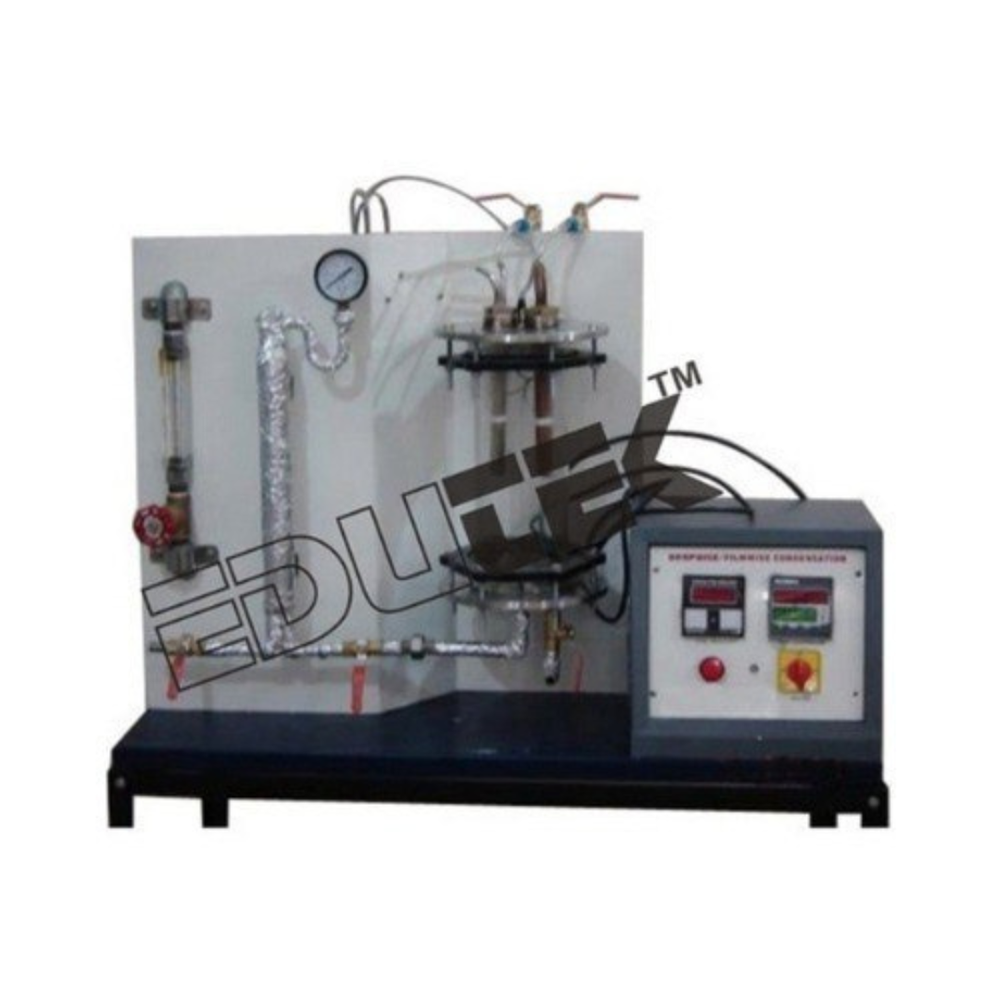

DROP WISE & FILM WISE CONDENSATION APPARATUS

Description:

Condensation is a phase change heattransfer process occurring in many industrial applications, such as in steampower plants, refrigeration plants etc.

Thus, this is one of the importantheat transfer process as present in mechanical and chemical engineering applications.

The condensation of vapour on a surface is of two types:

Drop wise Condensation,

Film wise Condensation.

This setup is designed fordetermining heat transfer co-efficient of two types of condensation and forvisualization of these processes.

It consists of a vertical frame.Condensation tubes are fitted inside compact glass cylinder.

Steam generator is fitted at thebackside of the cylinder.

Steam comes directly from generatorto the cylinder.

Digital Temperature Indicatormonitors the temperatures.

Pressure gauge and Rotameter canobserve steam pressure and cold water flow rates respectively

A Digital temperature Controller isprovided for controlling the temperature of Steam.

Technical Specifications:

Steam Generator: 8 Ltrs. (Approx.) made of Stainless steel with1.5 kW heater.

Insulated with ceramic wool andcladded by aluminum foil

Pressure Gauge: Bourdon type

Copper tubes (2 Nos.): One with natural finish and othernickel polished

Diameter: 19 mm (Approx.)

Length: 170 mm (Approx.)

Water Flow measurement: Rotameter Condensate

Measurement: Measuring Cylinder & Stopwatch

Control valves: one each for Steam, Cooling water & Drain

Digital Temp. Controller: 0-199.90C (For Steam Generator)

Digital Temp. Indicator: 0-199.90C, with multi-channel

Understanding Condensation Phenomena

This apparatus allows users to investigate the distinct behaviors of dropwise and filmwise condensation. By simulating real-world heat transfer conditions, students and researchers can closely observe variations in condensation rates, which is essential for advancing thermal engineering knowledge.

Superior Construction for Accuracy

Manufactured from copper tubes, the apparatus ensures optimal thermal conductivity and durability. Its dimensions-19 mm in diameter and 170 mm in length-are precisely chosen to facilitate accurate experimental outcomes and easy handling in laboratory settings.

FAQ's of DROP WISE & FILM WISE CONDENSATION APPARATUS:

Q: How does the DROP WISE & FILM WISE CONDENSATION APPARATUS operate in a heat transfer laboratory?

A: The apparatus operates by allowing steam to condense on copper tube surfaces in controlled conditions, letting users distinguish between dropwise and filmwise condensation. Observations made with this apparatus help analyze heat transfer efficiency for both phenomena.

Q: What are the primary applications of this apparatus?

A: This equipment is primarily used in academic and industrial laboratories to study heat transfer processes, specifically the differences between dropwise and filmwise condensation. It aids in experiments for thermal science, engineering education, and research.

Q: When should I use this apparatus during laboratory experiments?

A: Use the DROP WISE & FILM WISE CONDENSATION APPARATUS when you need to compare the efficiency of heat transfer between dropwise and filmwise condensation. It is especially valuable during coursework or research related to phase change heat transfer topics.

Q: Where is this condensation apparatus commonly supplied from?

A: We manufacture and supply this specialized apparatus from India, providing it to educational, research, and industrial laboratories both domestically and internationally as an exporter, manufacturer, and supplier.

Q: How does the construction material benefit heat transfer studies?

A: The use of copper tubes in this apparatus enhances heat transfer due to copper's high thermal conductivity. This ensures accurate, repeatable experiments, which are vital for comparative condensation studies.

Q: What process is typically followed for conducting experiments with this apparatus?

A: Steam is introduced to the copper tubes, and as it cools, condensation forms either as droplets (dropwise) or a continuous film (filmwise). Temperature and condensation rates are measured for both situations, facilitating detailed heat transfer analysis.

Q: What advantages does this apparatus offer for laboratory users?

A: The apparatus offers clear visualization and comparison of condensation mechanisms, fosters practical learning, and supports detailed research in heat transfer. It also delivers consistent results due to its robust copper construction and precise dimensions.
