Send InquiryDouble Beam UV VIS Spectrophotometer
Price 100.0 INR/ Piece
MOQ : 1 Piece
Double Beam UV VIS Spectrophotometer Specification
- Capacity
- Can accommodate standard 10 mm cuvettes
- Usage
- Quantitative and qualitative analysis in laboratory settings
- Color
- White with Blue Accents
- Power
- 150 W
- Application
- Research, pharmaceuticals, clinical labs, chemical analysis, biotechnology, environmental testing
- Operate Method
- Automatic (Microprocessor controlled with touch screen or interface)
- Classification
- Laboratory Instrument
- Material
- ABS Body with metal components
- Product Type
- Double Beam UV VIS Spectrophotometer
- Weight
- 18 kg
- Dimension (L*W*H)
- 600 mm x 450 mm x 230 mm
- Voltage
- 220 V, 50 Hz
- Photometric Accuracy
- 0.3% T
- Data Output
- USB, RS232, and printer port connectivity
- Wavelength Accuracy
- 0.3 nm
- Stray Light
- 0.05%T @ 220 nm, 360 nm
- Accessory Compatibility
- Compatible with sippers, auto samplers, temperature control accessories
- Storage Capability
- Internal Memory & USB Data Storage
- Photometric Range
- -0.3 to 3.0 A
- Cuvette Type
- Quartz and glass cuvette compatible
- Spectral Bandwidth
- 2 nm
- Detector Type
- Silicon Photodiode
- Light Source
- Deuterium Lamp & Tungsten Halogen Lamp
- Software
- User-friendly software with multi-function analysis
- Sample Holder
- 4-position cell changer (optional)
- Wavelength Repeatability
- 0.2 nm
- Scan Speed
- Fast, Medium, Slow (Selectable)
- Photometric Repeatability
- 0.2% T
- Wavelength Range
- 190 nm 1100 nm
- Baseline Flatness
- 0.002 A (200-1100 nm)
- Display
- Large LCD or Graphic Display
Double Beam UV VIS Spectrophotometer Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Sample Available
- Yes
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Packaging Details
- carton box, export quality also available
- Main Export Market(s)
- Asia, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001 ,CE

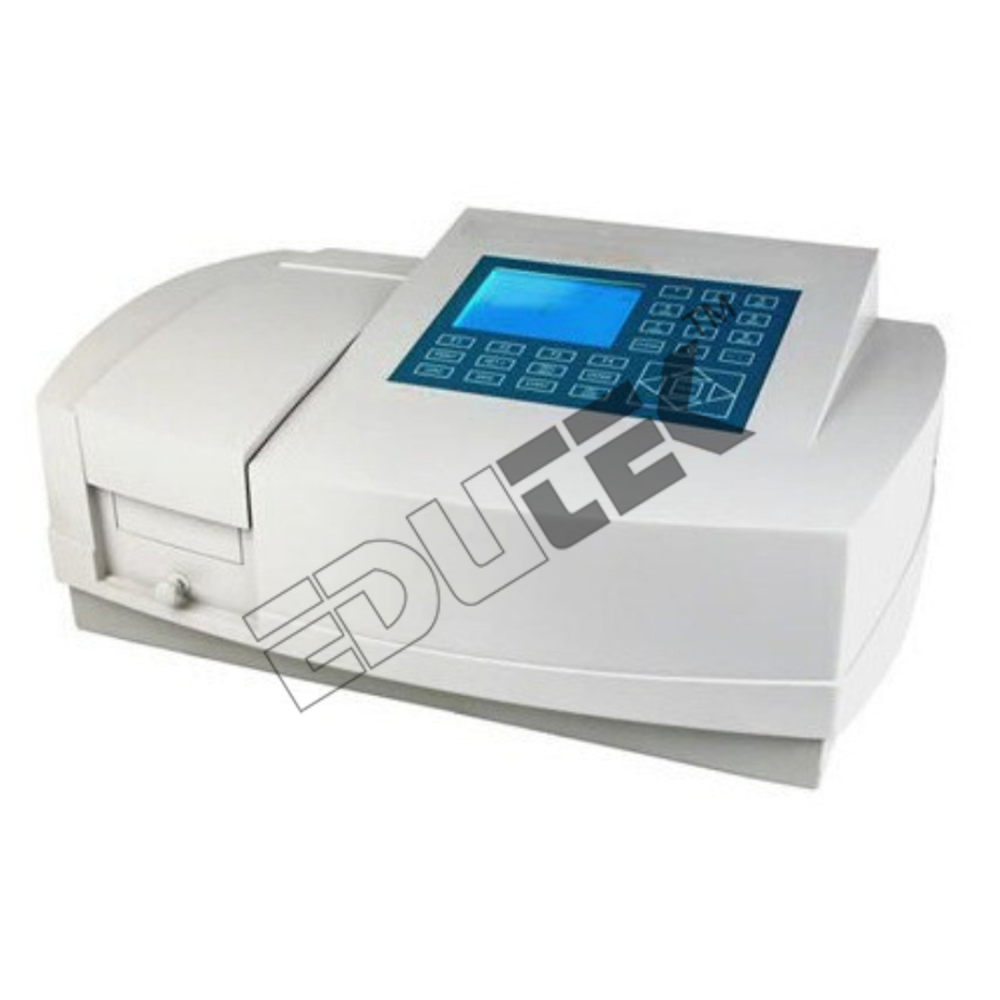

About Double Beam UV VIS Spectrophotometer
Microprocessor UV-VIS Spectrophotometer (Double Beam)
Labrador is advanced DOUBLE BEAM UV-VIS Spectrometer with more accuracy and flexible requirement. The two detectors are used to measure sample and reference respectively and simultaneously for satisfying of requirement of various fields , Such as biochemical research and industry, Pharmaceuticals analysis and productions, Environments productions, food industry Etc.
| Optical System | Double Beam(1200 lines/mm | |
|
| Grating) | |
| Wave Range | 190-1100nm | |
| Mode | Basic/Quantiative/Wavelength | |
|
| Scan/DNA Protein Test/Kinetics | |
| Scanning Speed | Fast/Meadium/Low | |
| Band Width | 1 nm | |
| Wavelength Accuracy | + 0.1 nm | |
| Wavelength Repeatability | 0.1 nm | |
| Photometric Accuracy | + 0.3% T | |
| Photometric Respectability | 0.2% T | |
| Photometric Display Range | 0-200%n T,-0.3- 3.0 A,0-9999 C | |
| Stability | + 0.001 A/h @ 500 nm | |
| Baseline Flantess | + 0.001 A | |
| Noise | < 0.05% T @ 220 nm, 360 nm | |
| Stray Light | < 0.05% T @ 220nm,360 nm | |
| Data Output Part | USB | |
| Printer Part | Parallel Part | |
| Display | Graphic LCD (320*240 Dots) | |
| Lamps | Deuterium Lamp & Tungsten | |
|
| Halogen Lamp | |
| Detector | Silicon Photodiodes | |
| Dimension (L*W*H) | 625*430*206nm | |
| Net Weight | 26 Kg | |
Precision Meets Versatility
Engineered with advanced optics and microprocessor control, this double beam spectrophotometer covers a broad wavelength range (190 nm 1100 nm) with remarkable wavelength and photometric accuracy. Its robust design supports diverse analytical applications in modern laboratories, enhancing reliability and repeatability for every measurement.
Intuitive Operation and Data Management
A large LCD or graphic display and user-friendly software ensure a seamless analytical workflow. Data can be easily exported via USB, RS232, or dedicated printer ports, while internal and USB data storage capabilities provide flexibility for extensive research documentation.
Designed for Laboratory Excellence
Compatible with sippers, auto samplers, temperature accessories, and both quartz and glass cuvettes, this instrument accommodates varying sample types. The robust ABS body and metal construction ensure durability for intense lab use, while the 4-position cell changer (optional) boosts productivity.
FAQs of Double Beam UV VIS Spectrophotometer:
Q: How does the double beam UV VIS spectrophotometer improve accuracy in laboratory analyses?
A: The double beam configuration eliminates fluctuations from the light source and environmental changes by referencing a blank sample continuously. Features like 0.3 nm wavelength accuracy, 0.2 nm repeatability, and 0.3% T photometric accuracy contribute to reliable, reproducible measurements.Q: What types of samples and cuvettes can be analyzed with this spectrophotometer?
A: This instrument is compatible with both quartz and glass cuvettes of standard 10 mm path length. It can handle liquid samples common in chemical analysis, biotechnology, pharmaceuticals, and environmental testing.Q: When should you use the selectable scan speeds (fast, medium, slow) provided by the instrument?
A: Selectable scan speeds allow users to optimize measurement based on sample requirements: use fast scans for quick surveys, medium for standard analyses, and slow for highly detailed spectral scans, especially when signal sensitivity and precision are critical.Q: Where can the data be stored or exported from the spectrophotometer?
A: Data generated can be stored internally, saved onto USB storage devices, or exported through USB, RS232, or printer ports. This flexibility ensures efficient record-keeping and reporting across research and QA/QC environments.Q: What process does the double beam spectrophotometer use for photometric analysis?
A: The process involves passing light through the sample and reference simultaneously, measuring the absorbance or transmittance at selected wavelengths. The systems microprocessor and touch screen interface manage measurements, calculations, and result storage automatically.Q: How does using multiple light sources benefit spectrophotometric applications?
A: The combination of Deuterium and Tungsten Halogen lamps ensures consistent and stable illumination across the full wavelength range, from ultraviolet to visible, expanding application versatility and improving accuracy.Q: What are the benefits of using this spectrophotometer in research and industry laboratories?
A: Laboratories benefit from wide analytical range, high measurement precision, robust data management, automatic operation, and compatibility with automation accessories. This leads to increased productivity and reliable results in research, quality control, and advanced chemical analysis.
