Domestic Heating System Control Training Panel

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Domestic Heating System Control Training Panel Specification

Accuracy
100 %

Dimension (L*W*H)
1400x700x1850 Millimeter (mm)

Weight
75 Kilograms (kg)

Feature
Highly Efficient

Type
DOMESTIC HEATING SYSTEM CONTROL TRAINING PANEL

Usage
Laboratory

About Domestic Heating System Control Training Panel

DOMESTIC HEATING SYSTEM CONTROL TRAINING PANEL

The trainer clearly demonstrates the function of a heating controller. The electronic controller, room thermostat and mixing valve are real components. The water, indoor and outdoor temperatures are set using potentiometers. Lights indicate the function of the pumps and the boiler.

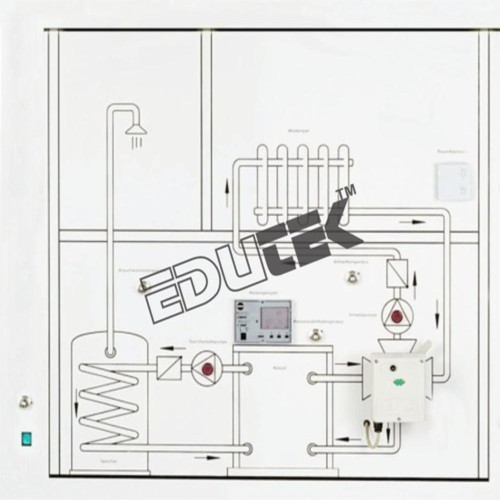

The components are clearly laid out on the process schematic to show their relationships. The system reacts rapidly because the temperature parameters are manually set by potentiometers.

Learning Objectives / Experiments

Operation of a modern heating controller
Temperature setting
Operating characteristics

Specification

Trainer for digital heating control
Actual components: servo motor, room thermostat with temperature sensor, heating controller
4 rotary potentiometers for adjustment of temperature setpoint
Simulation of: pumps, domestic water tank, radiator, 3-way mixing valve and return valve; symbolically represented on panel

Technical Data

Servo motor for 3-way mixing valve

Manual or automatic operation

Adjustable temperature setpoints

Outdoor
Boiler outlet
Feed flow (heating circuit)
Domestic water

Digital heating controller

Controlled by atmospheric conditions

Measuring range

Temperature: -20...60°C

Dimensions and Weight

LxWxH: 1400x700x1850mm
Weight: approx. 75kg

Comprehensive Training Solution

This panel is developed to provide detailed, practical exposure to domestic heating system controls. Its user-friendly interface simulates real-world conditions, enabling learners to understand various processes involved in the management and troubleshooting of heating systems in residential settings.

Precision and Efficiency

Engineered for 100% accuracy, the Domestic Heating System Control Training Panel guarantees reliable results in every experiment. Its highly efficient operational design makes it an invaluable resource for instructors and students seeking to achieve thorough mastery in heating system technologies.

FAQs of Domestic Heating System Control Training Panel:

Q: How is the Domestic Heating System Control Training Panel used in laboratories?

A: The panel is primarily designed for educational laboratories, enabling students and trainees to practice and understand domestic heating control systems through hands-on experiments and simulations.

Q: What are the key features of this training panel?

A: Key features include high efficiency, 100% measurement accuracy, sturdy construction, and realistic simulation, all within a compact footprint of 1400x700x1850 mm and weighing 75 kg.

Q: When should a laboratory consider adopting this training panel?

A: Laboratories involved in technical education, skill development, and research on heating systems should consider adopting this training panel when updating or enhancing their training infrastructure.

Q: Where is this training panel manufactured and supplied from?

A: This panel is manufactured, supplied, and exported from India, catering to educational institutions and industrial training centers both domestically and internationally.

Q: What is the process for operating the Domestic Heating System Control Training Panel?

A: Operation typically involves connecting the system, setting initial conditions, and following guided instructions to simulate and control various domestic heating scenarios. All necessary procedures are documented in the user manual provided.

Q: How does this panel benefit users in an educational context?

A: Users benefit from a practical, immersive learning experience, gaining both theoretical knowledge and hands-on skills essential for understanding and managing domestic heating control systems effectively.

Q: What types of institutions can use this training panel?

A: It is suitable for technical training institutes, engineering colleges, vocational schools, and research laboratories focused on HVAC and heating technology education.
