DISCHARGE THROUGH ROTA-METER APPARATUS

Get a Price/Quote

MOQ : 1 Piece

DISCHARGE THROUGH ROTA-METER APPARATUS Specification

Accuracy
2% FSD

Voltage
220-230V AC

Application
Fluid Mechanics Lab Equipment

Model No
FM-ROT-01

Feature
Portable, Corrosion Resistant, Easy Calibration

Product Type
DISCHARGE THROUGH ROTA-METER APPARATUS

Measurement Range
1 to 10 LPM

Frequency
50 Hz

Core Components
Rotameter Tube, Water Tank, Pump, Control Valve, Piping, Collecting Tank

Usage
Fluid Mechanics Lab Equipment

Temperature Range
Ambient (10C to 50C)

Capacity
1-10 LPM (litres per minute)

Power Source
Electric (Single Phase)

Automation Grade
Manual

Equipment Materials
SS, Borosilicate Glass, Mild Steel (coated)

Type
Educational Laboratory Equipment

Display Type
Graduated Rotameter Scale (Analog Visual)

Dimension (L*W*H)
Approx. 900 x 400 x 1200 mm

Weight
Approximately 20 kg

Connections
Flexible Hose, Quick Connects

Suitable For
Engineering College Labs, Technical Training Institutes

Tank Capacity
~25 Litre

Complies With
IS/ISO Standards for Laboratory Equipment

Flow Control
Manual Valve

Test Fluid
Water

Installation
Portable, Ready to Use

Maintenance
Low

Pump Type
Centrifugal, 0.5 HP

Rotameter Tube Material
Borosilicate Glass

Collecting Tank Graduations
1 Litre divisions

Operation
Bench Top, Self-Contained Unit

Indicator
Float (SS or Anodized Aluminum)

Frame Material
Mild Steel with Powder Coating

DISCHARGE THROUGH ROTA-METER APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About DISCHARGE THROUGH ROTA-METER APPARATUS

Specification:

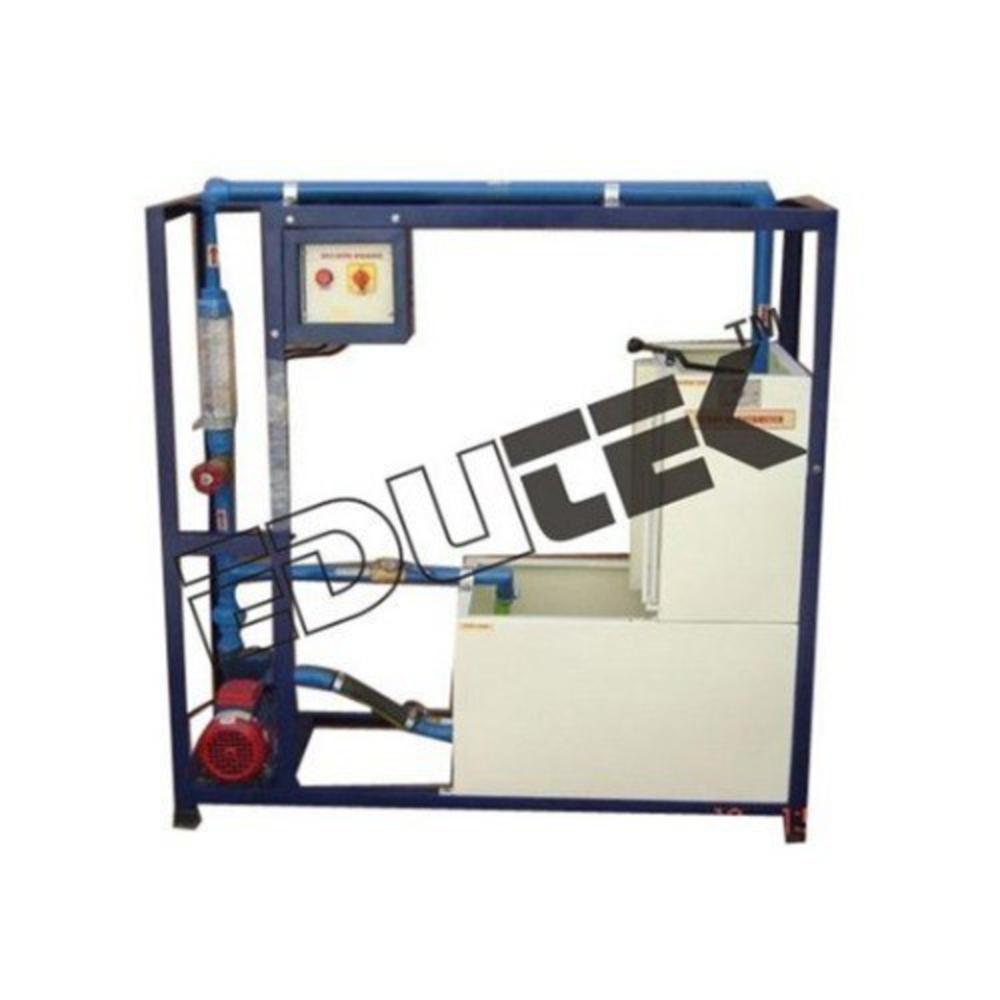

DISCHARGE THROUGH ROTA-METER APPARATUS

We are engaged in the manufacturing,exporting and trading of premium quality Rotameter Apparatus. Manufactured inaccordance with the industry set parameters using best quality raw materials,this apparatus is used to determine the co-efficient of discharged through aventure meter or orifice meter. Furthermore, the offered apparatus is also usedto calibrate the rotameter.

Experiments:

To determine the co-efficient ofdischarged through Venturi meter and orifice meter.

To measure discharge through Venturimeter, Orifice meter and Rotameter.

To calibrate the Rotameter.

Utilities Required:

Water Supply & Drain

Electricity 0.5 kW, 220V AC, SinglePhase

Technical Specifications:

Electric Supply: 230V 50Hz. With proper earthing.

Exterior material: Stainless steel plate baked enamel.

Temp. Range: -70 to 150C.

Power: Electronic, AC 1 phase 220V; 3 phase 380V 60/50

Versatile Educational Solution

Designed as a bench-top, ready-to-use unit, the Discharge Through Rotameter Apparatus is optimal for classroom demonstrations and technical training. Its self-contained build ensures easy installation, portability, and minimum maintenance, making it particularly suitable for high-frequency educational use.

Accurate and Reliable Flow Measurement

With a measurement range of 110 LPM and a precision of 2% FSD, this apparatus guarantees reliable readings. The borosilicate glass rotameter and clearly graduated analog scale provide straightforward, accurate visual monitoring of fluid discharge for laboratory experiments.

User-Friendly Operation and Maintenance

This apparatus features manual flow control via an intuitive valve system and a single-phase electric power source. Its corrosion-resistant components and straightforward calibration process make it exceptionally user-friendly for students and easy to maintain by staff.

FAQs of DISCHARGE THROUGH ROTA-METER APPARATUS:

Q: How is the discharge measured using the rota-meter apparatus?

A: The discharge is measured by allowing water to flow through the borosilicate glass rotameter tube, where the float (made of SS or anodized aluminum) rises in response to the flow. The position of the float is read against the graduated analog scale, directly indicating the flow rate in litres per minute (LPM), which can be manually adjusted using the control valve.

Q: What benefits does this apparatus offer to educational laboratories?

A: This apparatus offers several benefits including high measurement accuracy (2% FSD), reliable performance, portability, and minimal maintenance needs. It is self-contained, easy to calibrate, and complies with IS/ISO laboratory equipment standards, making it ideal for repeated use in educational settings.

Q: When should the apparatus be calibrated and how is it done?

A: Calibration should be performed initially before use, after maintenance, or if readings appear inconsistent. Calibration involves setting the apparatus at known flow rates and ensuring the floats position corresponds to the correct graduation on the scale, adjusting as necessary using the manual control valve.

Q: Where is this discharge through rota-meter apparatus typically installed and used?

A: This equipment is designed for benchtop installation in engineering college laboratories and technical training institutes. Its portable design allows for flexible placement and easy relocation as required within teaching or demonstration environments.

Q: What is the process for operating the apparatus safely and efficiently?

A: To operate, fill the main tank with water, switch on the electric pump, and use the manual valve to control the flow. Observe the floats position along the rotameter scale to read the flow rate. Water is collected in the graduated tank and can be reused for multiple tests, ensuring both efficiency and safe handling.

Q: How does the rotameter ensure accurate and reliable flow measurement?

A: The apparatus employs a borosilicate glass tube for clear visibility and a precision-machined float that responds sensitively to flow changes. The analog graduated scale allows direct and accurate readings, while robust materials ensure stable performance over prolonged use.

Q: What makes this apparatus durable and suitable for frequent use?

A: Constructed with corrosion-resistant stainless steel, anodized aluminum, borosilicate glass, and powder-coated mild steel, the apparatus withstands frequent laboratory use. Its low maintenance requirements and strong build quality ensure lasting performance even in demanding educational environments.
