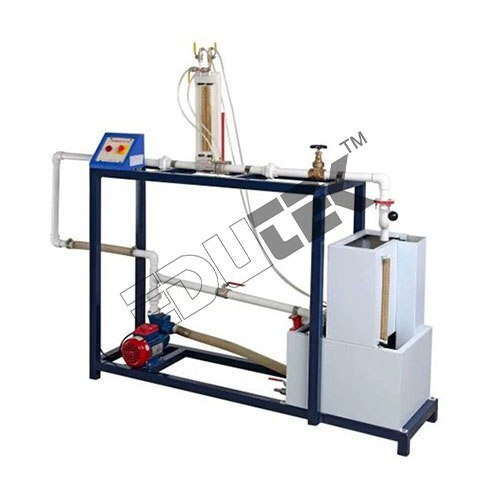

DISCHARGE THROUGH ORIFICE METER APPARATUS.

About DISCHARGE THROUGH ORIFICE METER APPARATUS.

Specification:

DISCHARGE THROUGH ORIFICE METER APPARATUS

Discharge through orifice meter apparatus

The apparatus consists of twopipelines emerging out from a common manifold.

One pipeline contain a Venturi meter,second contains an Orifice.

The pressure tapings from the Venturimeter and Orifice meter are taken to differential manometer to measure pressuredifference.

The Venturi meter and Orifice meterare connected in parallel and anyone of them can be put in operation byoperating valves provided at the downstream.

These valves can also regulate theflow. Present Set-up is self-contained water re-circulating unit, provided witha sump tank and a centrifugal pump.

Flow control valve and by-pass valveare fitted in water line to conduct the experiment on different floe rate.

Flow rate of water is measured withthe help of measured with the help of measuring tank and stop watch.

EXPERIMENTS:-

To determine the Co-efficient ofdischarged through Venturi meter and Orifice meter

To measure discharge through Venturimeter and Orifice meter as flow meters.

UTILITIES: -

Water Supply Drain

Electricity Supply: Single Phase, 220 VAC, 0.5 kW

TECHNICAL SPECIFICATIONS: -

Venturi meter: Material Clear Acrylic, Compatible to 1 Dia pipe

Orifice meter: Material Clear Acrylic, Compatible to 1 Dia.Pipe

Water Circulation: FHP Pump, Crompton / Sharp make

Flow Measurement: Using Measuring Tank, Capacity 25Ltrs.

Sump Tank: Capacity 50 Ltrs.

Stop Watch: Electronic

Control Panel: On / Off Switch, Mains Indicator etc.

Tanks will be made of Stainless Steel

The whole Set-up is well designed andarranged in a good quality painted Structure
