DISCHARGE OVER NOTCHES APPARATUS

About DISCHARGE OVER NOTCHES APPARATUS

Specification:

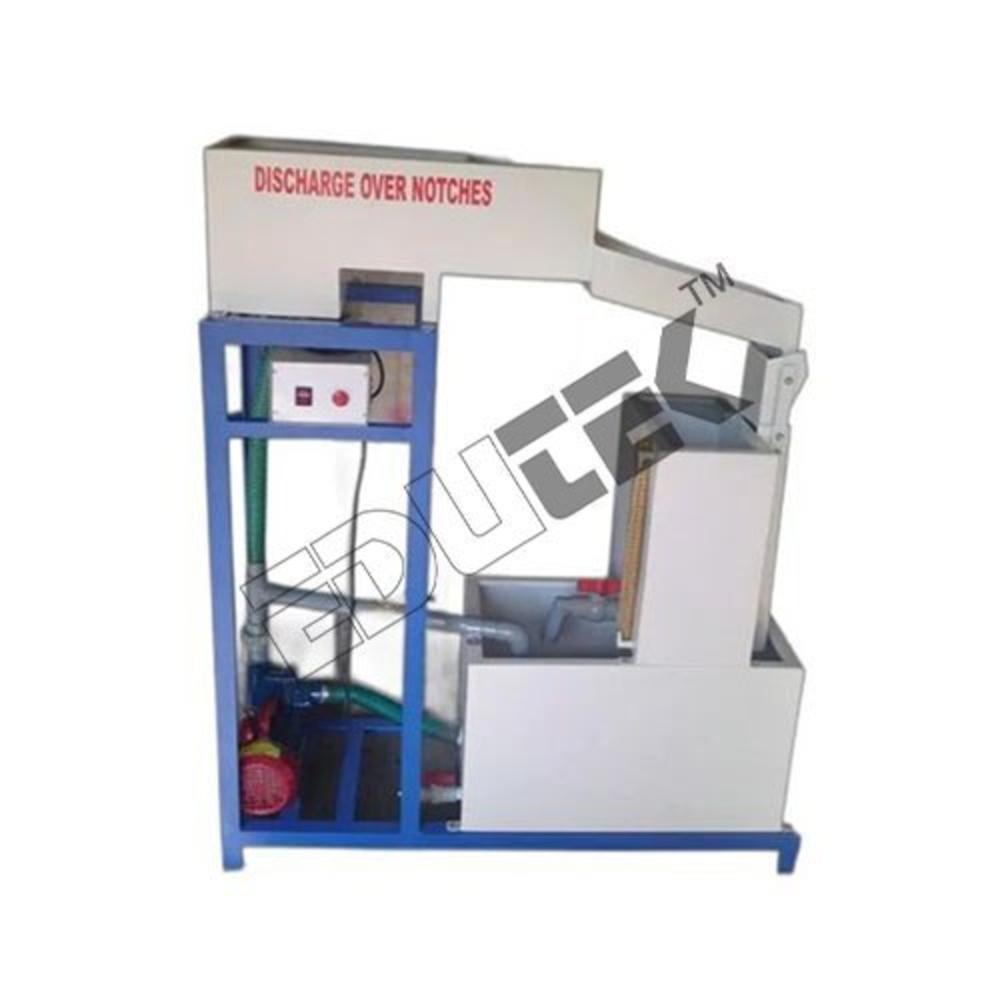

DISCHARGE OVER NOTCHES APPARATUS

Technical Description:

Edutek manufacture of discharge overnotches apparatus.

The setup consists of a channelhaving sufficient length and width in which water is supplied from the bottom.Required Notch is fitted at one end of this channel.

A pointer gauge with Vernier scale isfitted to measure the height of fluid in flow channel.

Arrangement for fixinginterchangeable notches is made.

Set of three notches, i.e.rectangular notch, 60 V notch 45 V notch is provided along with the set-up.

Present set-up is self-containedwater re-circulating unit, provided with a sump tank and a centrifugal pumpetc.

Flow control valve and by-pass valveare fitted in water line to conduct the experiment on different flow rates.

Flow rate of water is measured withthe help of measuring tank and stopwatch.

Technical Specifications:

Channel Test Section: Size 600 x 250 x 180 mm.

Notches: Material mild steel

Rectangular Notch

45 V Notch

60 V Notch

Pointer Gauge: With Vernier scale.

Water Circulation: HP pump, ISI make.

Flow Measurement: Using Measuring Tank withPiezo-meter, Capacity 45 Ltrs. stainless steel

Sump Tank: Capacity 84 Ltrs. stainless steel

Stop Watch: Electronic.

The whole set-up is ingeniouslydesigned and schematically arranged on a powder-coated rigid structure.

Weight: 150 kg
