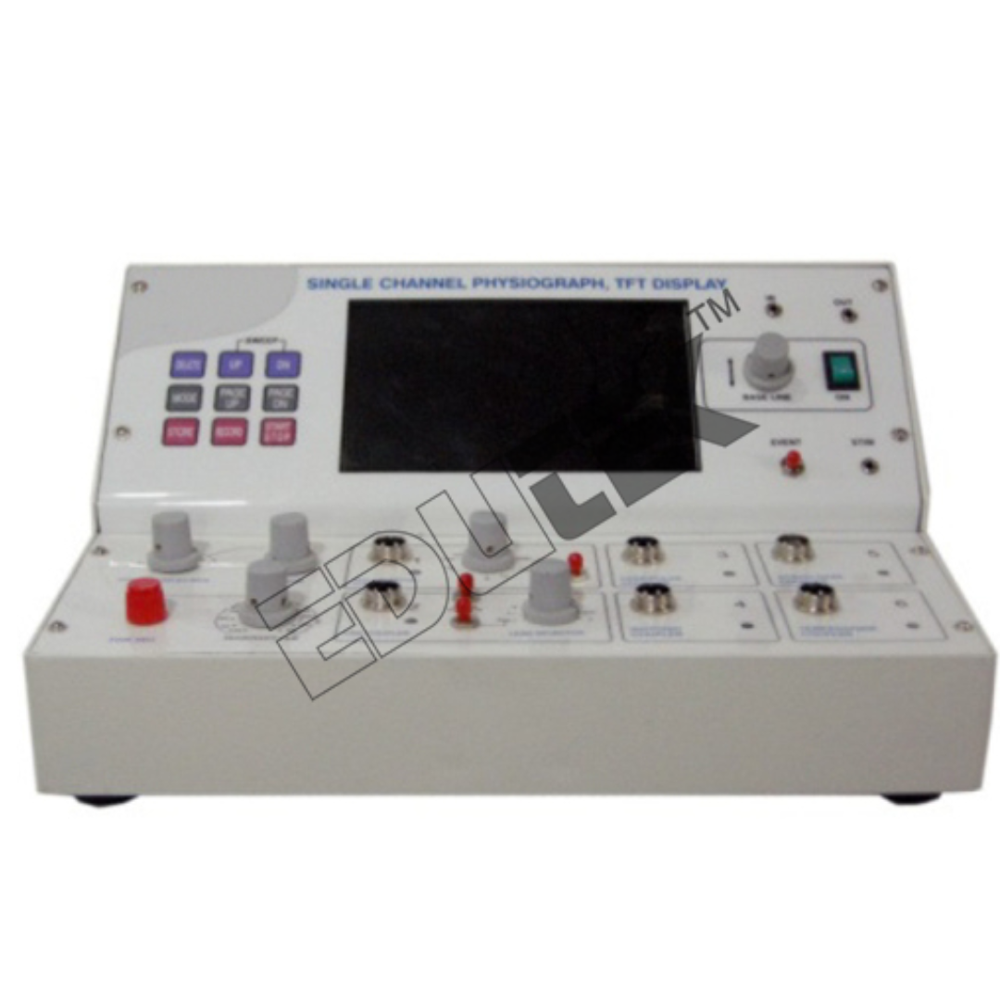

Digital Student Physiograph Single Channel

Send Inquiry

Request To Call Back

Digital Student Physiograph Single Channel

Get a Price/Quote

MOQ : 1 Piece

Digital Student Physiograph Single Channel Specification

Classification
Laboratory Physiological Instrument

Usage
For educational demonstrations and physiological experiments

Voltage
220V AC, 50Hz or 12V DC

Dimension (L*W*H)
340 x 260 x 100 mm

Application
Student training, muscle study, research

Material
ABS Plastic Body with Metal Base

Operate Method
Digital Controls with Touch Switches

Capacity
Single Channel

Power
AC Adapter / Battery Operated

Color
White & Blue

Product Type
Digital Student Physiograph Single Channel

Weight
3.2 kg

Accessories Provided
Electrodes, connecting leads, instruction manual, power cord and chart paper

Input Sensitivity
10 V/div to 2 mV/div (selectable)

Operating Temperature
10C to 40C

Recorder Output
0-1 V DC for chart recording/external analysis

Calibration
Built-in calibration signal (1 mV, 1 Hz )

Data Output
Analog and digital output terminals

Safety Features
Overload & short-circuit protection, fuse included

Display
Digital LED/LCD display for selected parameters

Recording Speed
Adjustable; typically 5 mm/sec to 25 mm/sec

Frequency Response
DC to 10 kHz

Noise Level
<5 V RMS

Humidity Range
Up to 85% RH (non-condensing)

Storage Temperature
-20C to 60C

Digital Student Physiograph Single Channel Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Digital Student Physiograph Single Channel

Digital Student Physiograph Single Channel

ETPL-326 : Console with Time & Event Channel and Stimulator for Human & Animal experiments.

A MAIN CONSOLE with Time & Event Channel and stimulator.

High Resolution coloured TFT display
Sweep speeds provided are 0.5,1,2,5,10,20,25,30,50

div/sec.

The data channel has recording width of 8 div. (80mm approx)

B COUPLERS

Strain Gage
Isotonic
Pulse Respiration
Temperature
EKG (CLINICAL) with Electrode, 5 pin Junction box and Jelly.
BIO POTENTIAL (with Electrodes, 3 pin Junction box, Paste and
Electrode for Action Potential).

C TRANSDUCERS

PRESSURE for strain gage Coupler
VOLUME for strain gage Coupler
PULSE for Pulse Respiration Coupler
TEMPERATURE for Temperature Coupler
MUSCLE ACTIVITY/FORCE for strain gage Coupler
RESPIRATION BELT for Pulse Respiration Coupler
ISOTONIC FINE MOVEMENT for isotonic Coupler

D ACCESSORIES :

The following accessories are provided free of charge with each Digital Physiograph :-

Fuses - 5 Nos.
Earthing cord - 1 No.
Instruction Manual - 1 No.
Machine cover - 1 No.
Software Back up on C/D - 1 No.
USB Cable - 1 N

Comprehensive Data Acquisition

With selectable input sensitivity and wide frequency response, this physiograph captures a diverse range of physiological signals, making it ideal for educational and research applications. Its robust data output options facilitate real-time monitoring and post-experiment analysis.

User-Friendly Design & Controls

Equipped with clearly labeled digital controls and touch switches, students and instructors can easily select, calibrate, and monitor parameters on the crisp digital LED/LCD display. Calibration is straightforward, thanks to the built-in 1 mV, 1 Hz signal for quick verification.

Complete Safety & Reliability

Designed with overload and short-circuit protectionplus a built-in fusethe instrument ensures safe operation in laboratory settings. Its sturdy ABS plastic body with a metal base ensures stability, while the unit can function via AC power or battery for versatile deployments.

FAQs of Digital Student Physiograph Single Channel:

Q: How does the Digital Student Physiograph Single Channel ensure accurate data recording?

A: Accuracy is accomplished through selectable input sensitivity (10 V/div to 2 mV/div) and a frequency response from DC to 10 kHz, catering to different physiological signals. Plus, built-in calibration (1 mV, 1 Hz) guarantees precise measurement before experimentation.

Q: What accessories are included with the physiograph, and how are they used?

A: The instrument comes with essential accessories such as electrodes, connecting leads, a power cord, instruction manual, and chart paper. These components support straightforward setup and allow students to begin conducting physiological experiments quickly.

Q: When is the physiograph most effectively utilized in academic settings?

A: It is especially beneficial during laboratory classes, student demonstrations, and practical research involving muscle studies or basic physiological monitoring, providing hands-on experience and real-time data visualization.

Q: Where can external analysis devices be connected to the physiograph?

A: External devices can connect via analog or digital output terminals provided on the unit. The 01 V DC recorder output enables seamless interface with chart recorders or computers for further data examination.

Q: What are the main benefits of using this physiograph for student training?

A: The physiograph promotes experiential learning by offering real-time, reliable data collection and display. Adjustable recording speeds, intuitive controls, and built-in calibration aid in clear understanding of physiological processes.

Q: How does the device maintain safety during operation?

A: It features overload and short-circuit protection as well as a built-in fuse. These safety mechanisms, along with robust construction, protect users and the instrument throughout its use in educational labs.
