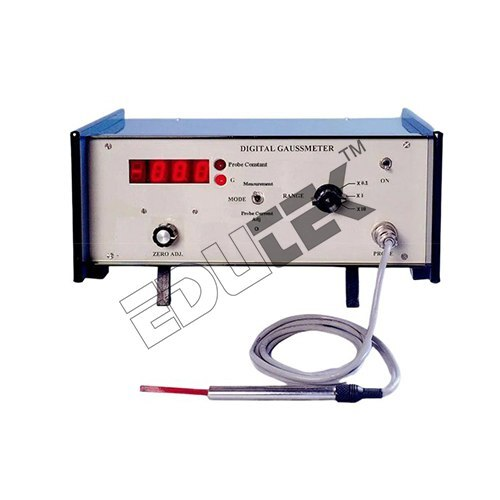

DIGITAL GAUSS METER

Get a Price/Quote

MOQ : 1 Piece

DIGITAL GAUSS METER Specification

Response Time
1 second

Power Source
AC mains

Input
Magnetic field via probe

Features
Portable, high accuracy, LED display

Resolution
1 Gauss

Power Supply
230V AC, 50Hz

Usage
ENGINEERING ELECTRONICS EQUIPMENTS

Sensors Specification
Hall Effect probe

Display Type
3 digit LED digital display

Output
Digital display of magnetic flux density

Operating Temperature
0C to 50C

Components
Main unit and probe

Product Type
DIGITAL GAUSS METER

Application
ENGINEERING ELECTRONICS EQUIPMENTS

Rated Voltage
230V AC

Supply Voltage
230V AC

Size
Portable

Dimension (L*W*H)
200mm x 100mm x 70mm

Function
Measurement of magnetic field strength

Color
White with blue panel

Weight
Approx. 1.2 kg

Current Rating
Approx. 50 mA

Thickness
Standard enclosure

Capacity
Up to 20 KiloGauss

Frequency
50 Hz

Measuring Range
0-20,000 Gauss

Display Update Rate
2.5 readings/sec

Accuracy
±1% of reading

Probe Cable Length
1 meter approx.

Calibration
Factory calibrated

Enclosure Material
ABS plastic cabinet

DIGITAL GAUSS METER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About DIGITAL GAUSS METER

Specification:

DIGITALGAUSS METER

Resolution: 0.1gauss at 0.1 kilogauss range

Range: 200KG,2KG, 20KG and 40KG

Accuracy: 0.5%, digit at 1KG to 20KG range 1%; 1digit at 0.1KG range

Temperature:Upto 50C

Display:3digit, 7 segment LED DPM with auto polarity and overflow indication

Power:220V10%, 50Hz

High Accuracy Magnetic Field Measurement

Achieve reliable results with a measuring range of 020,000 Gauss and 1% accuracy. The Hall Effect probe ensures precise detection, suitable for engineering and electronics environments needing exact magnetic field readings.

Portable and Durable Design

Encased in a robust ABS plastic cabinet, the meter weighs approximately 1.2 kg and measures 200mm x 100mm x 70mm. Its portable design and sturdy construction make it ideal for field and laboratory use alike.

Simple and Efficient Operation

With factory calibration, a digital LED display, and a response time of just one second, the device offers user-friendly operation right out of the box. The 1-meter probe cable provides flexibility for various test setups.

FAQs of DIGITAL GAUSS METER:

Q: How is the Digital Gauss Meter used to measure magnetic fields?

A: To measure a magnetic field, connect the Hall Effect probe to the main unit and position the probe tip at the desired location. The digital display will show the magnetic flux density in Gauss, updating readings 2.5 times per second.

Q: What applications can this Gauss Meter be used for?

A: Its widely utilized in engineering and electronics settings for tasks such as evaluating magnets, coils, transformers, and other components or devices that generate a magnetic field.

Q: When should I consider recalibrating the Gauss Meter?

A: The unit is factory calibrated, but annual recalibration is recommended for optimal accuracy, especially if used in precision-critical applications or after long-term usage.

Q: Where can this device be operated safely?

A: It is designed for indoor environments, including laboratories, classrooms, and engineering workshops, within an operating temperature range of 0C to 50C.

Q: What is the process for connecting and powering the device?

A: Plug the Gauss Meter into a 230V AC, 50 Hz outlet and connect the probe. Upon powering on, it is instantly ready for measurementsno complex setup required.

Q: What are the primary benefits of using this Digital Gauss Meter?

A: The key benefits include high measurement accuracy, ease of use, rapid response, portability, and a clear digital display, making it ideal for quick and dependable magnetic field assessments.
