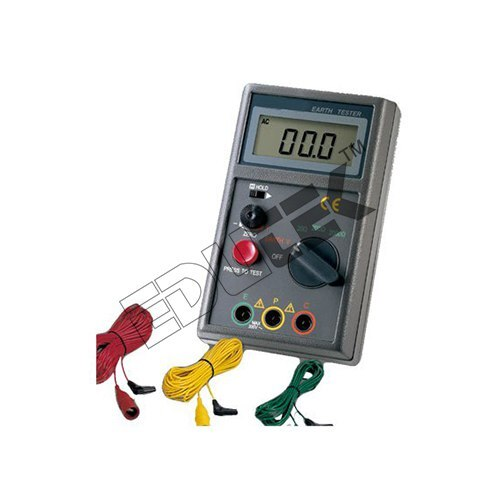

DIGITAL EARTH TESTER

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DIGITAL EARTH TESTER Specification

Output
Digital readout

Interface
Test lead&probe jacks, display buttons

Features
Automatic range selection, overload protection, battery low indication

Components
Tester main unit, test leads, user manual

Display Type
Digital, LED display

Charging Voltage
Battery operated, 1.5V x 6

Resolution
0.01

IP Rating
IP20

Power Supply
230V AC / 50Hz / Battery operated

Power Source
AC Mains & Battery

Input
Direct probe, lead wire connection

Response Time
<1 sec

Sensors Specification
Integrated earth resistance sensor

Usage
ENGINEERING ELECTRONICS EQUIPMENTS

Operating Temperature
0C to 40C

Product Type
DIGITAL EARTH TESTER

Application
ENGINEERING ELECTRONICS EQUIPMENTS

Rated Voltage
600V max Earth Voltage

Supply Voltage
230V AC

Size
Portable

Dimension (L*W*H)
200 mm x 100 mm x 80 mm

Function
Measurement of Earth Resistance and Earth Voltage

Color
Light Grey

Weight
Approx. 1.8 kg

Current Rating
0-20A (Earth resistance measurement)

Frequency
50 Hz

DIGITAL EARTH TESTER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About DIGITAL EARTH TESTER

DIGITALEARTH TESTER

3-wire earthelectrode resistance tester.

Simple one buttonoperation.

For earth testingof electrical installation

Completewith earthling rods connection clamp, 30m cable and all standard accessories.

Precise Earth Resistance and Voltage Measurement

Accurately measure earth resistance from 0 to 2000 and earth voltage up to 600V. The devices high sensitivity and resolution (0.01) ensure exact readings, essential for both safety checks and compliance in engineering projects. Its quick response time, durable build, and over-range indication make it a dependable choice for daily electrical inspections.

User-Friendly Features and Robust Design

Equipped with a digital LED display, automatic range selection, and overload protection, this tester simplifies earth resistance testing. The high-grade ABS construction, portable design, and included long test leads enhance usability and durability, while the data hold function lets users securely retain key measurements during fieldwork.

FAQs of DIGITAL EARTH TESTER:

Q: How do I use the DIGITAL EARTH TESTER to measure earth resistance and voltage?

A: To measure earth resistance or voltage, connect the test leads and probes to the device and the points under test, following the user manual instructions. Switch the desired mode (resistance or voltage), and readings will appear on the digital LED display. The tester provides immediate feedback, and you can use the data hold function to retain results as needed.

Q: What are the main benefits of using this earth tester for engineering applications?

A: This tester ensures accurate, fast, and safe measurements of earth resistance and voltage, meeting international standards (IS: 9223, CE). Its featuressuch as high noise immunity, automatic range selection, overload protection, and factory calibrationsupport reliable evaluations, helping engineers maintain equipment and site safety.

Q: When should I recalibrate or service my DIGITAL EARTH TESTER?

A: The tester is factory calibrated and comes with a calibration certificate. It is recommended to recalibrate the instrument annually or as required by your quality assurance protocols to maintain measurement accuracy. Service may be needed if the device shows erratic readings or physical damage.

Q: Where can the DIGITAL EARTH TESTER be used effectively?

A: It is suitable for use in various engineering and electronics settings, including industrial sites, laboratories, and fieldwork. The testers portable size, battery or AC power options, and robust construction make it ideal for both indoor and outdoor electrical safety assessments.

Q: What process ensures the testers safety during operation?

A: The device incorporates built-in overload protection, automatic range selection, and meets both IS: 9223 and CE safety standards. The high-grade ABS body offers extra insulation, while features like LED indications for status and faults help prevent operational mistakes.

Q: How does the over-range indication and data hold function assist users?

A: If a measurement exceeds the testers maximum range, the display flashes to alert the user, ensuring data accuracy and equipment safety. The data hold feature allows users to freeze the displayed value, making record-keeping and reporting easier during multi-point testing.
