Deval Attrition Tester

Name: Deval Attrition Tester
Brand: EDUTEK INSTRUMENTATION
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Deval Attrition Tester Specification

Voltage
220-240V Volt (v)

Frequency
50 Hz Hertz (HZ)

Feature
Sturdy Construction, Easy Operation, Accurate Results

Product Type
Highway/Pavement Testing Equipment

Core Components
Rotating Drum, Electric Motor, Digital Counter

Accuracy
1% %

Classification
Civil Engineering / Road Material Testing

Measurement Range
Determination of Devels Attrition Value of Aggregates

Usage
Historically used for assessing aggregate durability for road construction; largely replaced by LA Abrasion

Warranty
1 year

Material
Heavy Steel and Cast Iron

Power Source
Electric

Application
Highway Construction, Aggregate Material Testing Laboratories (for compliance to older standards)

Model No

Capacity
5 kg per test Kg

Color
Typically Blue or Grey Paint

Operate Method
A pre-weighed aggregate sample is placed in the cylinder(s) and rotated for 10,000 revolutions. The sample is then sieved and re-weighed to determine the percentage mass loss (Attrition Value)

Temperature Range
Ambient Celsius (oC)

Automation Grade
Semi-Automatic

Equipment Materials
Mild Steel Body with Powder Coated Finish

Type
Attrition Tester

Display Type
Digital Counter

Dimension (L*W*H)
400 x 400 x 450 mm Millimeter (mm)

Weight
Approx. 45 kg Kilograms (kg)

Timer
0-99 minutes Digital

Operation
Automatic Cut-off after Preset Time

Finish
Corrosion Resistant Powder Coating

No. of Drums
1

Test Standards
IS: 2386 (Part IV) 1963

Motor Power
0.5 HP

Drum Material
Heavy Duty Steel with Replaceable Liners

Drum Size
12" diameter x 8" length (approx.)

Rotational Speed
30-33 RPM

About Deval Attrition Tester

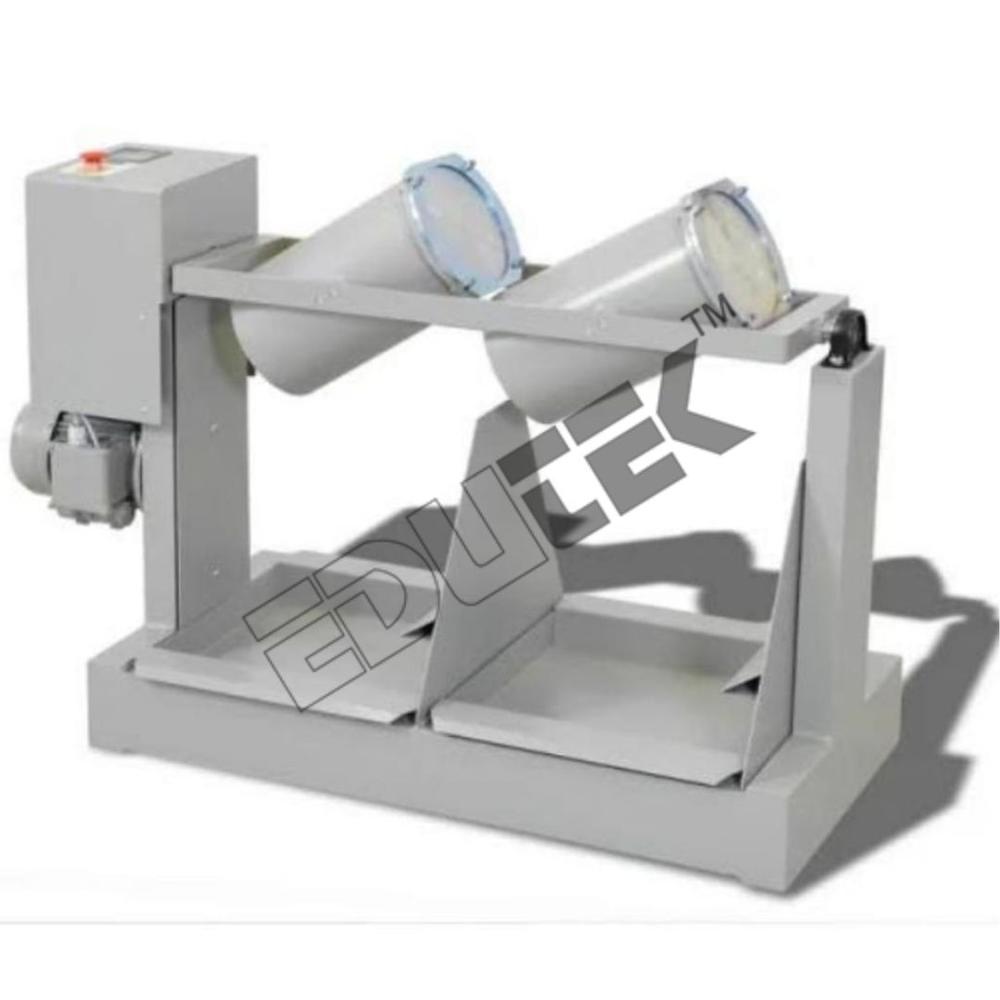

Devel Attrition Tester

For The Determination of Resistance of Aggregates to Wear by Abrasion.

Specification:

It consists of two hollow cylinders closed at one end and provided with Fitting covers at the either end.
These cylinders are mounted an a shaft 0 at angle of 30 with the axis of rotation of the shaft.
The shaft rotates at 30-33 RPM.
Through a reduction gear operated by a motor and is provided with a revolution counter.
Complete with Abrasive Charge consisting of 12 Nos. Hardened steel Balls of 48 mm diameter Suitable for operation on 440 Volts, Three Phase, 50 Cycles, A.C. supply.

Note : Option of Digital Preset Counter can be provided at an Extra Cost

Sturdy Construction for Reliable Aggregate Testing

Manufactured with a mild steel body and a heavy-duty drum, the Devel Attrition Tester guarantees longevity and operational durability.
The powder-coated finish resists corrosion, making it ideal for rigorous laboratory use in aggregate assessment.

Precise, User-Friendly Operation

Equipped with digital controls, a timer (0-99 minutes), and a digital counter, this tester simplifies aggregate attrition measurement. Automatic cut-off functionality enhances safety and repeatability for consistent, trustworthy results every test cycle.

Compliant with International Standards

This tester meets IS: 2386 (Part IV) 1963 standards for aggregate testing, ensuring your procedures align with recognized benchmarks.
Its accuracy and process reliability make it suitable for exporters, manufacturers, and suppliers executing laboratory-based aggregate quality analyses.

FAQs of Devel Attrition Tester:

Q: How does the Devel Attrition Tester operate during aggregate testing?

A: The tester rotates aggregates in a heavy-duty steel drum at a controlled speed (3033 RPM) for up to 99 minutes, measuring attrition value accurately with a digital counter and automatic cut-off once the set test duration completes.

Q: What is the maximum sample capacity the tester can handle per test cycle?

A: The device is capable of testing up to 5 kilograms of aggregate per cycle, providing sufficient capacity for reliable laboratory analysis.

Q: When should I use the Devel Attrition Tester in laboratory procedures?

A: Use this attrition tester when determining the durability and resistance of aggregates to wear as required in IS: 2386 (Part IV) 1963 compliant quality control or comparative research protocols.

Q: Where is the equipment most effectively applied?

A: Primarily intended for laboratory settings, the device is widely used in construction material testing, academic research, and quality assurance departments by exporters, manufacturers, and suppliers.

Q: What is the process for obtaining accurate aggregate attrition values?

A: Load aggregates into the drum, set the desired duration on the digital timer, and start the device. It will rotate the drum, and the digital counter will display results at the end of the cycle, with automatic cut-off ensuring precise measurement.

Q: What are the key benefits of using the DEV-ATT-01 Attrition Tester?

A: The tester offers robust construction, reliable performance, accurate digital measurements (+/-1%), automatic operation for user safety, and compliance with standardized testing practices, ensuring precise and repeatable results.

Q: How does the automatic cut-off enhance testing safety and efficiency?

A: Automatic cut-off stops the equipment upon completion of the preset timer, preventing over-testing, facilitating consistent results, and minimizing user intervention during operation.
