DCS Trainer

Price 10000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DCS Trainer Specification

Capacity
As per trainer setup Pcs/hr

Core Components
PLC Module, Controller, Sensors, Control Panel

Model No

Automation Grade
Automatic

Voltage
220V Volt (v)

Measurement Range
Analog 0-10V, Digital Input/Output

Frequency
50 Hz Hertz (HZ)

Feature
Highly Efficient

Accuracy
100 % %

Temperature Range
0 C to 100 C Celsius (oC)

Power Source
220V AC

Equipment Materials
Mild Steel, Aluminium, PVC

Type
DCS Trainer

Usage
Laboratory

Display Type
Digital

Dimension (L*W*H)
600mm x 400mm x 400mm Millimeter (mm)

Weight
Approx. 25 kg Kilograms (kg)

Simulated Processes
Flow, Temperature, Pressure Control

Input Voltage Range
180V to 240V AC

Protection Features
Overload & Short Circuit Protection

Software Included
SCADA Simulation Package

Communication Interface
RS-232, Ethernet

Control Method
PID & ON/OFF

Mounting Type
Table Top

Number of I/O Ports
8 Digital, 4 Analog

Cooling System
Fan Cooling

Training Manual
Provided with kit

Panel Material
Powder Coated Sheet

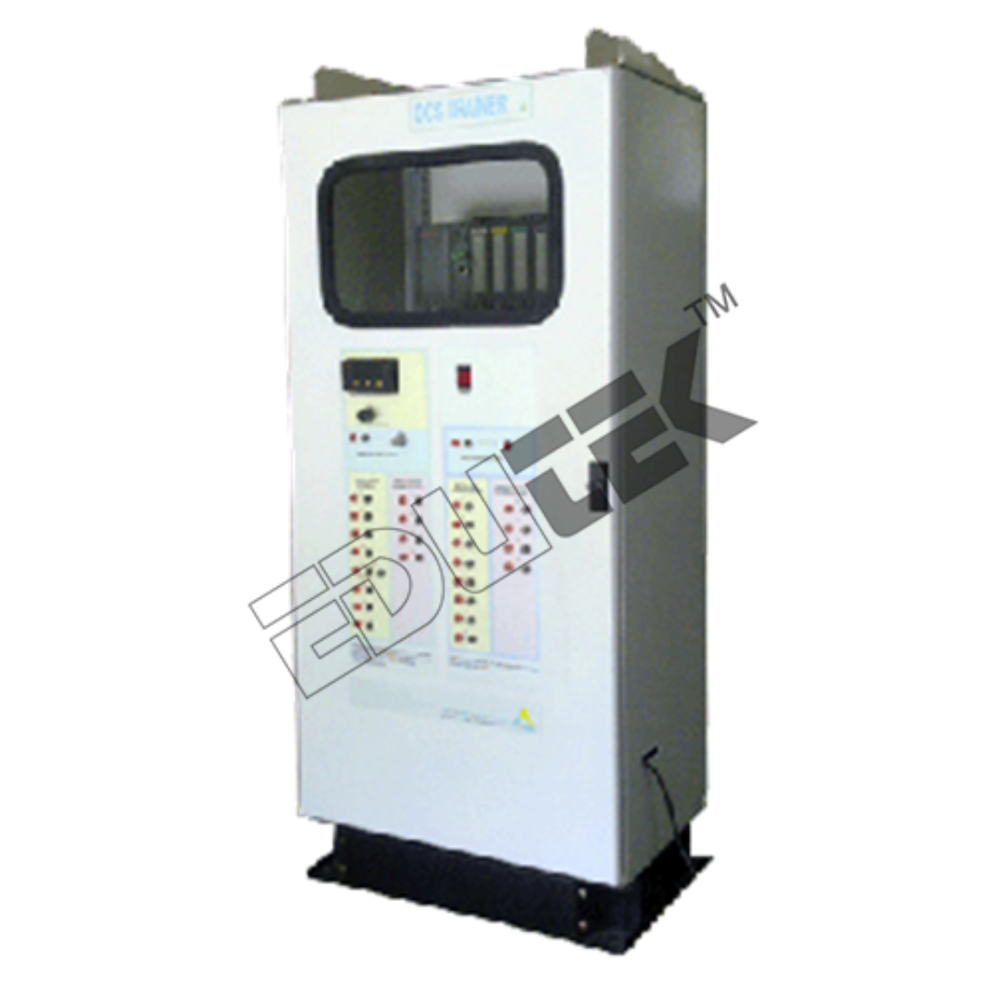

About DCS Trainer

DCS Trainer

The set up is designed to understand the latest techniques adopted in process control. The concepts of DCS, hybrid controller and SCADA can be well understood. Set up consists of Honeywell make Hybrid Controller, a control panel for simulating inputs as well as connecting real time process, software package for configuring the controller and a SCADA package. Easy to use Windows based Hybrid control designer software, operable over Ethernet, an port or modem connection, simplifies controller and operator interface configuration. It provides advanced monitoring functions for debug, allows run-mode configuration changes while limiting process interruption uploads the complete, annotated graphic controller and operator interface configuration, plus supplies an array of printouts for enhanced documentation.
Experiments
To Study of batch process control To Study of continuous process control Control of existing processe Study of Hybrid controller To Study of Ethernet network communication with hybrid controller.To Study of OPC communication To Study of modbus communication

Advanced Simulation Capabilities

This trainer offers comprehensive process simulation, including flow, temperature, and pressure controls, enabling hands-on practice for students and technicians. The integrated SCADA simulation software facilitates data monitoring, control, and analysis, emulating industrial process environments for better learning outcomes.

Robust Design and Safety Features

Constructed from powder-coated mild steel, aluminum, and PVC, the DCS Trainer is durable and designed for frequent laboratory use. Overload and short-circuit protection, coupled with fan cooling, safeguard internal components, while its table-top mounting makes it adaptable to various training settings.

Flexible Control and Accurate Measurement

With support for both PID and ON/OFF control methods, users can experiment with different control strategies. Analog measurements range from 010V, while digital I/O ports expand practical applications. The digital display ensures precise and immediate feedback during training exercises.

FAQs of DCS Trainer:

Q: How is the DCS Trainer utilized in laboratory environments?

A: The DCS Trainer is employed in laboratory settings to simulate and study flow, temperature, and pressure process controls using both analog and digital I/O. Its hands-on approach, combined with the SCADA simulation package, helps students gain practical experience in distributed control systems.

Q: What processes can be simulated with this trainer?

A: This unit is equipped to simulate fundamental industrial processes such as flow control, temperature regulation within a 0C to 100C range, and pressure management. These simulations allow users to practice setting, monitoring, and modifying key process variables effectively.

Q: Where should the DCS Trainer be installed for optimal use?

A: Designed for table-top mounting, the DCS Trainer should be installed in a well-ventilated laboratory space, preferably on a stable surface near a standard 220V AC power source. Its compact dimensions allow for easy placement in education and training centers.

Q: What are the benefits of using the SCADA Simulation Package provided?

A: The included SCADA Simulation Package enables real-time process monitoring, data acquisition, and control through intuitive digital interfaces. It bridges theoretical concepts with practical application, enhancing learning outcomes and operational insights for users.

Q: When should overload and short circuit protection features be checked?

A: Protection features should be verified upon initial setup, during routine maintenance, and anytime the trainer encounters abnormal operation or circuit interruptions. Regular checks ensure safe operation and prevent hardware damage.

Q: How does the trainer ensure measurement accuracy during experiments?

A: The trainer guarantees 100% accuracy through its high-quality sensors, digital display, and reliable analog measurement range (010V). This precision allows users to capture exact process data required for effective analysis and control tuning.

Q: What core components are included in the DCS Trainer kit?

A: The kit comprises a PLC module, controller, sensors, control panel, and SCADA software. It also contains a training manual for guided learning and setup, ensuring comprehensive understanding and utilisation of the trainers features.
