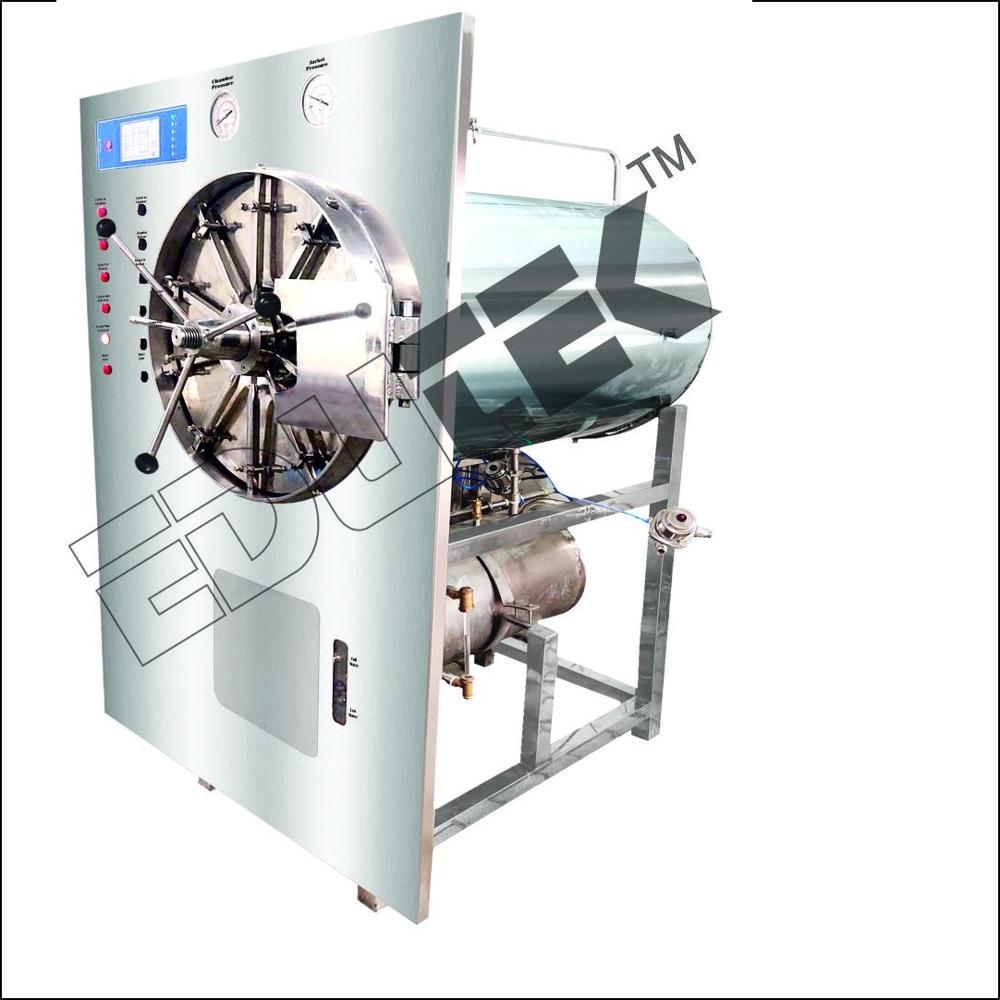

CYLINDRICAL STEAM STERILIZER SINGLE DOOR

Send Inquiry

Request To Call Back

CYLINDRICAL STEAM STERILIZER SINGLE DOOR

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CYLINDRICAL STEAM STERILIZER SINGLE DOOR Specification

Dimension (L*W*H)
Custom sizes available, Standard: 600mm x 1200mm x 1400mm

Shape
Cylindrical

Storage Capacity
100 Liters

Suitable For
Medical, surgical, laboratory items

Warranty
1 Year

Power
6 kW

Use
Sterilizing medical instruments, glassware

Phase
Single Phase

Temperature Range
Up to 134C

Humidity Range
N/A (Dry after sterilization)

Treatment Type
Autoclave Steam Sterilization

Height
1400mm

Color Code
Polished Stainless Steel

Accuracy
2C

Frequency
50 Hz

Weight
Approx. 150 Kg

Automation Grade
Semi Automatic

Properties
High pressure steam sterilization, corrosion resistant

Display Type
Mechanical

Material
stainless steel

Product Type
CYLINDRICAL STEAM STERILIZER SINGLE DOOR

Function
Steam Sterilization

Application
Hospital, Laboratory, Pharmaceutical sterilization

Power Source
Electric

Display
Analog Pressure Gauge

Voltage
220V / 240V

CYLINDRICAL STEAM STERILIZER SINGLE DOOR Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About CYLINDRICAL STEAM STERILIZER SINGLE DOOR

Eduteks lineof healthcare sterilizers are designed for hospital operating rooms, centralsterile supply departments, ambulatory surgery centers, dental schools, andother clinical settings. Autoclaves come standard with vacuum, liquid, gravityand flash cycles to sterilize surgical instruments, utensils, gowns,wrapped/unwrapped goods and other healthcare instruments and supplies. Allsterilizers are equipped with reliable non-proprietary components, maximizing uptimewhile providing an ultra-low total cost of ownership. Autoclaves continue to bethe first line of defense against infection and Edutek takes thisresponsibility seriously.

This typesterilizer is applicable for medical liquid, instrument and dressing fabric inmedical institution and pharmaceutical factory.

Application:

It isapplicable for the sterilization of unpacked solid instrument in department ofStomatology, Ophthalmology, Operation room and CSSD.

Features:

Dryingfunction.

Interlockfunction.

Automaticsterilization process.

304stainless steel material chambers.

Safety valvefor over pressure protection.

Automaticallyfill water in case of low water level.

Over-temperature,over-pressure protection device.

Water levelsensor, the power will be cut-off.

Double dooroptional

	Cylindrical Steam Sterilizer Single Door Standard Series
Model		Chamber Diameter (mm)	Chamber Depth (mm)	Chamber Volume (Litres)	Steam Generator (KW	Steam Generator) Capacity (Litres)	Floor Space (Width x Depth)	Packed
ETS-50BCS-80CY		410	620	80	9 KW	45	1130 x 1900	380
ETS-50BCS-180CY		520	920	195	9 KW	45	1175 x 2210	600
ETS-50BCS-250CY		520	1220	259	18 KW	60	1230 x 2400	750
ETS-50BCS-270CY		620	920	277	18 KW	60	1230 x 2400	750
ETS-50BCS-360CY		620	1220	368	18 KW	60	1230 x 2400	750
ETS-50BCS-500CY		750	1220	511	30 KW	90	1460 x 3090	900
Edutek: - We make customise product as per customer needs, above are our standard model for offering based on our market research for best utility and sizes needed for standard drum size.

Reliable Construction and Safety

Built with double-walled, jacketed stainless steel chamber and corrosion-resistant materials, this sterilizer combines long-term durability with outstanding safety features such as an automatic steam release, pressure safety valve, and secure door locking system.

Versatile Application and Performance

Designed for floor mounting and customizable sizing needs, the sterilizer meets the rigorous demands of hospitals, laboratories, and pharmaceutical facilities, supporting both medical and surgical item sterilization with a typical cycle time of 2035 minutes.

User-Friendly Operation and Maintenance

Equipped with manual or electromechanical controls, analog pressure gauge display, and straightforward water filling and drain systems, the sterilizer is easy to operate and maintain. Quarterly servicing is recommended to ensure peak performance and compliance.

FAQs of CYLINDRICAL STEAM STERILIZER SINGLE DOOR:

Q: How does the cylindrical steam sterilizer ensure safe operation during the sterilization process?

A: The sterilizer is equipped with a pressure safety valve, automatic steam release mechanism, and a secure door locking system to prevent accidental opening and ensure safe operation throughout the sterilization cycle.

Q: What types of items can be sterilized using this equipment?

A: It is suitable for sterilizing medical instruments, surgical tools, laboratory glassware, and other items used in hospital, laboratory, and pharmaceutical settings, ensuring thorough decontamination for safe reuse.

Q: When is maintenance required for this steam sterilizer?

A: Quarterly servicing is generally recommended to sustain optimal performance and comply with safety standards. Regular maintenance checks help ensure the reliability and longevity of the device.

Q: Where can the cylindrical steam sterilizer be installed?

A: The floor-mounted design and customizable dimensions allow installation in various locations including hospitals, research labs, and pharmaceutical manufacturing units, as per the users spatial requirements.

Q: What is the process for filling water in the sterilizer?

A: Water filling is performed manually before each sterilization cycle, enabling the operator to control the amount of water used and ensuring smooth operation during the steam sterilization process.

Q: How does the device enhance convenience and usability for operators?

A: With manual or electromechanical controls and a clear mechanical analog pressure gauge, the sterilizer offers straightforward operation. Its efficient heating and insulation also contribute to reliable performance and energy savings.

Q: What benefits are offered by the double-walled, jacketed chamber construction?

A: This construction provides enhanced thermal efficiency and corrosion resistance, reducing heat loss and ensuring high-pressure sterilization, which is crucial for effective instrument decontamination and user safety.
