CORIOLLIS COMPONENT OF ACCELERATION APPARATUS

Send Inquiry

Request To Call Back

CORIOLLIS COMPONENT OF ACCELERATION APPARATUS

Get a Price/Quote

MOQ : 1 Piece

CORIOLLIS COMPONENT OF ACCELERATION APPARATUS Specification

Automation Grade
Manual

Hardness
Mild Steel powder coated

Specimen Size
Variable, as per need

Application
Engineering Testing Equipment

Operating Voltage
230 V AC

Mounting Type
Bench-top

Accuracy
1%

Temperature
Room temperature (15C to 35C)

Product Type
CORIOLLIS COMPONENT OF ACCELERATION APPARATUS

Measuring Range
Experimental, depends on setup

Resolution
0.01 unit (depends on scale used)

Display Type
Analog/Digital (as applicable)

Response Time
Instantaneous (mechanical response)

Humidity
Up to 80% RH

Test Range
As per experimental setup

Frequency
50 Hz

Interface Type
Manual

Usage
Engineering Testing Equipment

Features
Transparent water tank, smooth rotation, precise measurement, stable base, includes instruction manual

Number of Specimens
Single specimen

Power Supply
230 V AC, 50 Hz

Max Height
Approx. 600 mm

Capacity
Apparatus to hold 1-2 liter water for testing

Machine Weight
Approx. 50 kg

Test Speed
Variable (0-50 RPM)

Test Stroke
Variable as per experiment

Control Mode
Manual Control

Rotating Disc Diameter
300 mm

Accessories Supplied
Instruction manual, Measuring scale, Collection tank

Drive Mechanism
Electric Motor coupled to shaft

Equipment Type
Laboratory Testing Equipment

Material
Mild Steel & Transparent Acrylic

Safety Features
Overload protection, Enclosed rotating parts

Water Circulation
Through Reservoir and Pump

CORIOLLIS COMPONENT OF ACCELERATION APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About CORIOLLIS COMPONENT OF ACCELERATION APPARATUS

Specification:

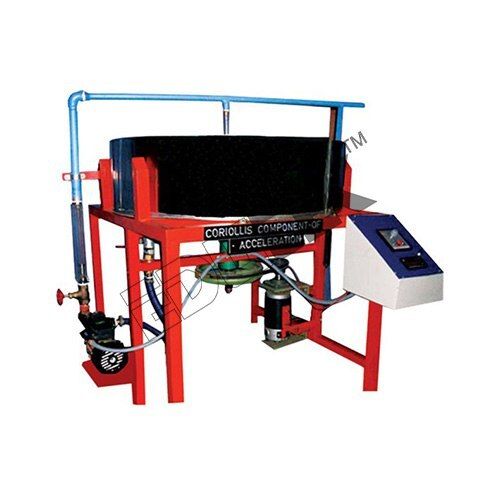

CORIOLLIS COMPONENT OF ACCELERATION APPARATUS

We are offering a wide range ofCoriolis Component Acceleration.

This entire set up is designed tostudy variouscoriollis components of a slider crank mechanism.

In this process the continuous streamof water which is flowing through a steady rotating pair of tubes replacesmechanical slider system.

The tubes of the system can be easilyrotated in various speeds with the usage of a swinging field motor which alsoserves a dynamometer. There is a Perspex window located on the top of the tank.

This window assures complete clearview of the process. It also prevents the splashing of water over the side ofthe tank.

The in-built dynamometer continuouslymeasures the torque which is applied to the various rotating tubes. This entireequipment is self-contained.

The re-circulating of the water isassisted with a own speed control unit and water circulating pump which isseparate.

Experimentation

To determine Coriolis Component ofAcceleration at various speeds of rotation and water flow rates

Utilities Required

Electricity

0.5 kW, 220 V, Single Phase

Drain

Water Supply

Technical Details:

Swinging field type, variable speed

Pump, FHP

The whole set-up is well designed andarranged in a good quality painted structure

Fabricated out of stainless steel

Rotating arms

9mm/6mm orifice diameter, length 300mm

Rotameter, Electric motor, Main tank

Control Panel comprises of:

Speed control unit

Standard make on/Off switch, mainsindicator

RPM indicator with proximity sensor

RPM measurement

Robust Construction and Safety

Built with quality mild steel and transparent acrylic, this apparatus provides visibility into the experiment while ensuring durability and user safety. Enclosed rotating parts and overload protection features minimize operational risks, making it ideal for demanding laboratory environments.

Precise and Flexible Measurements

With its analog and digital measurement options, a measuring scale for accuracy, and an instant-response mechanism, the system enables precise results. Test parameters like speed and stroke are easily variable to accommodate experimental requirements and specimen differences.

User-Friendly Operation and Applications

Operation is straightforward thanks to a clear instruction manual, manual controls, and simple water circulation. Its bench-top design and stable base allow convenient use in educational and research labs across engineering and technical institutions.
