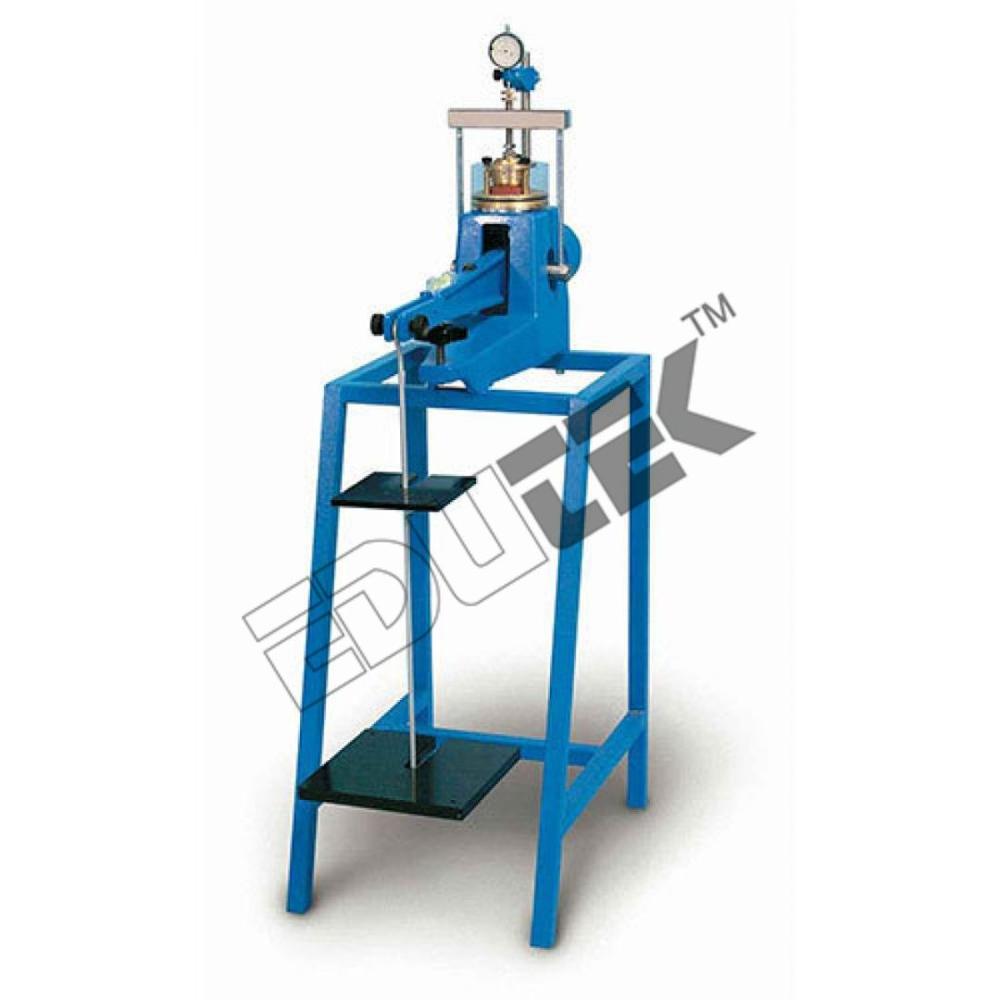

Consolidation Testing Apparatus

Name: Consolidation Testing Apparatus
Brand: EDUTEK INSTRUMENTATION
Price: 4000.0 INR
Availability: InStock

Price 4000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Consolidation Testing Apparatus Specification

Application
Civil Engineering, Geotechnical Research

Warranty
1 Year

Temperature Range
Ambient Lab Range Celsius (oC)

Power Source
Not Required

Material
Steel, Brass, Metal Alloys

Capacity
Standard Capacity Kg

Color
Select (Typically Blue or Grey)

Weight
25 Kilograms (kg)

Operate Method
Incremental Loading: Weights are added to a lever arm to apply specific pressure to the soil sample; deformation is recorded over time

Accuracy
High Accuracy %

Model No

Measurement Range
Maximum Pressure up to 10 kgs

Usage
Foundation settlement prediction, design of earth fills and embankments

Core Components
Load Frame, Load Beam, Fixed or Floating Ring Consolidation Cell, Dial Gauge/Transducer

Product Type
Consolidation Tester / Settlement Tester

Automation Grade
Manual (Dead Load) to Fully Automatic (Pneumatic)

Feature
Applies controlled incremental vertical loads to soil samples

Classification
Vertical Deformation, Applied Load (Stress)

Equipment Materials
Steel Frame, Load Beam, Consolidation Ring (Brass/Stainless Steel)

Type
Consolidation Testing Apparatus / Oedometer / Consolidometer

Display Type
Dial Gauge or Digital Readout (for vertical deformation)

Dimension (L*W*H)
45 cm x 35 cm x 120 cm Centimeter (cm)

About Consolidation Testing Apparatus

Consolidation Testing Apparatus One Dimensional

Edutek are offering a wide range of Consolidation Frame One Dimensional Consolidation, Consolidation Test Apparatus manufacturers, Consolidation Test Apparatus suppliers, Consolidation Test Apparatus Exporter,

Specification of Consolidation Test Apparatus

Rigidly manufactured from aluminium alloy casting to provide a high degree of accuracy with any frame distorsion under load. The load bridge group is supported in high accuracy self-aligning seat balls.The beam provides three loading ratio: 9: 1 10: 1 11: 1 and the beam assembly is fitted with an adjustable counterbalance weight.

Maximum load: 100 kg of slotted weights. The odeometer accepts cells up to 100 cm. sq. Supplied complete with rod holding the weights and coupling block holding the dial gauge or transducer.
