Consolidation Apparatus Three Gang Model

Send Inquiry

Request To Call Back

Consolidation Apparatus Three Gang Model

Name: Consolidation Apparatus Three Gang Model
Brand: EDUTEK INSTRUMENTATION
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Consolidation Apparatus Three Gang Model Specification

Core Components
Load Frame, Consolidation Cells, Dial Gauges, Loading Yokes, Water Reservoirs

Capacity
Three specimen (Three gang model) Pcs/hr

Classification
Geotechnical Engineering / Soil Mechanics Testing

Automation Grade
Manual

Model No
Three Gang Consolidation Apparatus

Usage
Prediction of settlement of foundations and earth structures; design of deep foundations

Temperature Range
Ambient Celsius (oC)

Power Source
Manual

Voltage
230V AC Volt (v)

Accuracy
100 % %

Color
Select (Typically Green/Grey Frame)

Feature
Highly Efficient

Frequency
50 Hz Hertz (HZ)

Measurement Range
Upto 20mm settlement (typical per dial gauge)

Material
Steel, Brass, Precision Components

Application
Civil Engineering, Geotechnical Labs, Research Facilities

Operate Method
Incremental Loading: Loads are applied incrementally via the lever arm; readings of settlement are taken at specific time intervals until consolidation is complete for each load stage

Product Type
Soil Settlement Tester / Compressibility Tester

Equipment Materials
Cast Aluminum Alloy Frame, Brass, Stainless Steel Accessories

Type
Consolidation Test Apparatus

Display Type
Mechanical Dial Gauge

Dimension (L*W*H)
Approx. 650 x 350 x 420 mm Millimeter (mm)

Weight
Approx. 35-40 kg (complete) Kilograms (kg)

Number of Gauges
3 independent gauges (one per sample)

Finish
Powder Coated/Anodized

Cell Size
60 mm dia (standard); others optional

Max Load Capacity (Per Specimen)
Up to 10 kg

Loading Method
Hanger and Weight Loading System

Complies with Standards
IS:2720 (Part XV), BS 1377, ASTM D2435

Water Reservoir Construction
Non-corrosive material (usually Perspex or Stainless Steel)

Accessories Included
Porous Stones, Filter Papers, Weight Set

About Consolidation Apparatus Three Gang Model

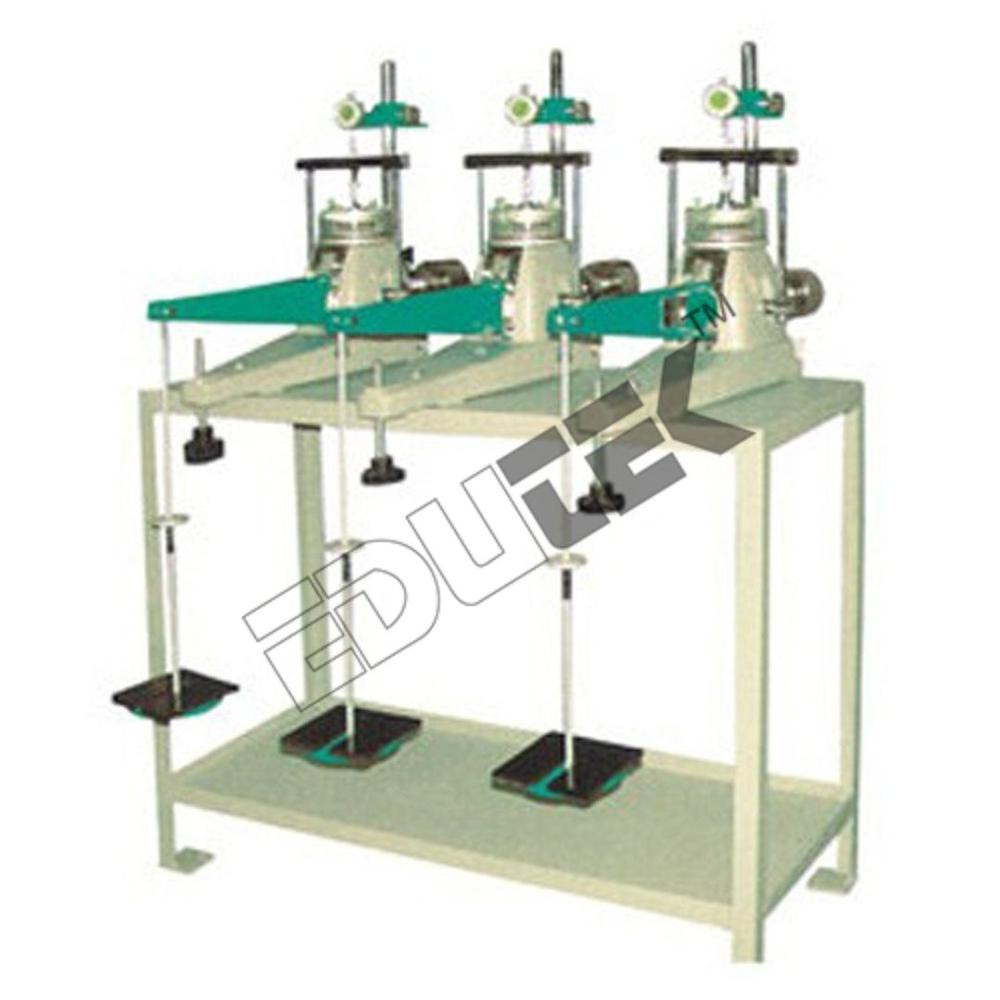

Consolidation Apparatus Three Gang Model

Specification :

Loading Pressures on 63 mm (2.5") diameter samples of up to 5,148 kPa (48 tons per sq. ft.) using 11:1 beam ratio.
Triple beam ratios of 9:1, 10:1 and 11:1 minimize loading weight requirements.
Rigid frame construction ensures accuracy, repeatability and reliability of test results.
Integral beam support jack eliminates possible shock to sample during load application procedures.
Compact, table top design for maximum space savings in the laboratory.
Cast aluminium and plated steel construction for rust resistance and long life.
The apparatus features a rigid loading mechanism, capable of applying loads for long durations. Load pressures of up to 5,148 kPa (48 tons per sq. ft.) can be generated on 63 mm (2.5") diameter samples.
Load Capacity: 5,148 kPa. (48 tons/sq. ft) on 63 mm (2.5") diam. samples.
Loading Beam: Cast aluminium; counterbalanced; 9:1,10:1 and 11:1 ratios.
Frame: Cast aluminium; integral beam support jack; plated steel and platform.

Accessories :

Floor Mounting Stand.63.5mm (2.5") Fixed Ring Consolidometer.With cutting (specimen) ring.
50 mm Fixed Ring Consolidometer.With cutting (specimen) ring.
75 mm Fixed Ring Consolidomerer.With cutting (specimen) ring.
2.5" Floating Ring Consolidometer.
Dial Indicator. 10 mm range x 0.0025 mm graduations.
Dial Indicator. 25 mm range x 0.010 mm graduations.
Weight Set A. Includes: four 1 kg, five 4 kg, and four 16 kg weights.
Weight Set B. Includes: four 1 kg, three 4 kg and one 16 kg weights
16 Ton Weight Set. Includes: two 1/16 ton, one 1/8 ton, one 1/4ton, one 1/2 ton, and one 1 ton and seven 2 ton weights.

Precision Testing for Soil Consolidation
This Three Gang Consolidation Apparatus enables simultaneous testing of three soil samples, enhancing laboratory efficiency. Featuring mechanical dial gauges for each specimen, the device provides up to 100% accuracy in settlement readings. Its sturdy cast aluminum alloy frame and corrosion-resistant components ensure long life, while versatile cell size options support diverse testing requirements. The apparatus fully complies with recognized international standards.

Versatile Design and Reliable Construction
With a modular design, this apparatus includes essential accessories such as porous stones, filter papers, and weight sets. The water reservoirs are built from non-corrosive materials, ensuring consistent test conditions. The manual operation and mechanical display enable precise control, making it suitable for a variety of laboratory environments. Its all-metal construction and powder coated finish offer excellent durability and easy maintenance.

FAQs of Consolidation Apparatus Three Gang Model:

Q: How does the Three Gang Consolidation Apparatus improve laboratory workflow?

A: The apparatus allows concurrent testing of three specimens, optimizing laboratory efficiency and reducing total test time. Independent dial gauges provide accurate settlement measurements for each sample, simplifying data collection.

Q: What is the process for conducting a soil consolidation test using this apparatus?

A: The soil sample is placed in a consolidation cell, fitted with porous stones and filter paper. Desired load is applied via the hanger and weight system. Settlement is monitored using the mechanical dial gauge, and water reservoirs maintain sample saturation throughout testing.

Q: When should the Three Gang Model be used over single-specimen models?

A: This model is ideal when multiple soil samples need to be tested simultaneously, such as during quality control, research projects, or when time efficiency is critical in laboratory workflows.

Q: Where is this apparatus typically utilized?

A: It is primarily used in geotechnical and civil engineering laboratories across research institutions, universities, and construction material testing facilities, particularly in India and for export abroad.

Q: What are the main benefits of the powder coated or anodized finish?

A: The powder coated or anodized finish protects the frame against corrosion and abrasion, ensuring the apparatus remains in optimal condition even with extended use in laboratory settings.

Q: How accurate is the measurement from each dial gauge?

A: Each specimen is monitored by an independent mechanical dial gauge, offering a measurement range up to 20 mm of settlement with 100% accuracy as per specifications.

Q: What standards does the Three Gang Consolidation Apparatus comply with?

A: It meets major industry standards including IS:2720 (Part XV), BS 1377, and ASTM D2435, ensuring reliable, internationally recognized test results.
